Sansui P50 Brochure

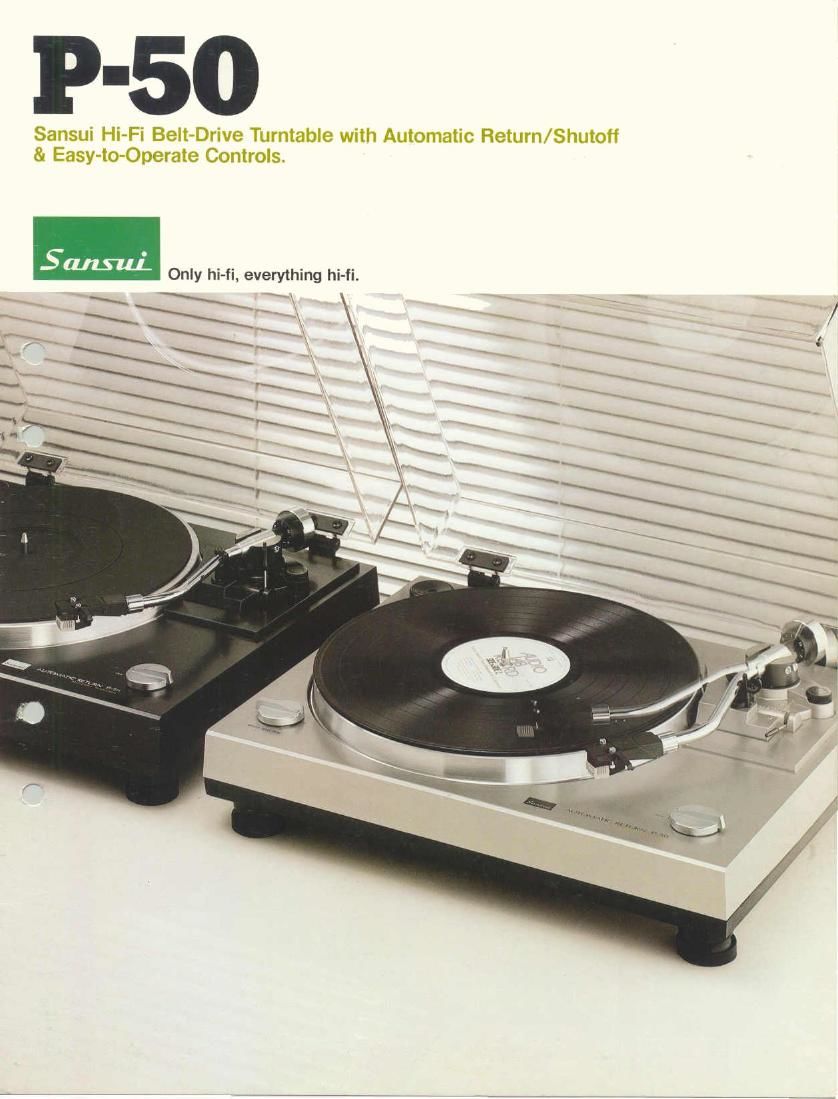

Page 1

P-50

Sansui Hi-Fi Belt-Drive Turntable with Automatic Return/Shutofl
& Easy-to-Operate Controls.

Only hi-fi, everything hi~fi.

Page 2

SANSUI P-50: The Experts Choice for

Superb Sound.

Automatic Tonearm:

Simple. smooth, sate

Simply beautiful and beautifully Simple Put
a record on the P- 503 platter cue the
tonearrn onto the lead- in groove With the
smooth- working CUE lever and the automatic mechanism takes care
ol the rest At end ol play thearm IS aulomalically lifted and gently returned
to its rest Then power is shut otf One big advantage is saler record
handling Another IS cleaner hilt pertormance

Arm Elevation Lever 8i STOP Switch
Listen to the whole Side of your record, or
7- skip to the selections you like best The
ARM ELEVATION tor CUE"i lever lifts and
' lowers the stylus safely To end play. return
the arm and shut oil power at any time Simply use the STOP switch
Again emphaSIS is on simple and reliable operation

StaticalIy-Balanoed Tonearm:
Sansui-exclusive design ends
unwanted resonance and false
adoration in musical sound.

We've solved the problem at tonearrn
resonance A Sansurexcluswe lpat pendi Iishbone" pattern acoustic
absorbent lills the Sashaped arm to damp resonance and remove the
low-frequency "mud in your mu5ic We've added a dynamic decoupler"
of rubber between the arm and its counterweight to improve bass
response Delicate perfcrmance is assured in durable construction of

Specifications

all high-precision partstorlonglerm stability

2 One Gram Tracking

The lonearm ol the PA50 is so senSilive it
' Will move in any direction at a force of a
a mere one gram The audible advantage is

' , clear and clean muSical reproduction from
even the most sophisticated ol light- tracking phono cartridges A skating
Iorce compensation system is butlt in Ior lower wear and ideal stereo-
channel balance

Rock-Steady Drive

Sansuis experience With our lour~pole
synchronous motor in belt-drive conltgu~
rations has confirmed our trust in its accu-
- . racy and durability. Premston pans and
a bunt-in frequency-synchronized speed governor contribute to Silent
sure operation. The platter is cl diecast aluminum. large (308mm dia l
and well balanced to match the motors highrtorque characteristics
This all translates to hi-li specs such as 60GB SIgnaHOflOISB ratio and a
low 0 06% wow Ilutter

Solid Cabinet: Suspension and

materials make the P-50 immune to

howling" of all types.

80 ellective are the suspension and shock-absorbing
systems in the P-50 cabinet it seems to lloat on air" Without the least
susceptibility to acoustic Ieedback i"hovvling"i The ingeniously engineer-
ed cabinet IS finished in your choice ol gold tint or black

YVPE Twcrspead belt-drive automatic return

SPEEDS 33% 45 rpm

PLATTER Alumlnum alloy die cast diameter
308mm l12/§"l

MOTOR Four-pole synchronous

PERFORMANCE

WOW 5 FLUTTER less than 0 06% (WFlMSl
SIGNAL TO NOISE RATIO better than 60dB lDIN-Bl

YONEARM Staticallyrpalanoed Svshaped resonancalree
tubular ionearm With antiskating dewcei
direct readout tracking lorce dial

LENGTH 220mm iBV.."l pivot to stylus tip

OVERHANG mifi")
MINIMUM TRACKING FORCE SETTING
lg When using canridga guaranteed to
operate at lg stylus pressurel
ACCEPTABLE CARTRIDGE WEIGHT

4 to 99
CARTRIDGE 8037
TYPE Induced magnet

FREQUENCY RESPONSE 20 I0 20.000HZ
OUTPUT VOLTAGE 3 va per channel llOOOHZ Slimm/Seci

OPTIMUM LOAD 47k ohms

TRACKING FORCE 2 59

STYLUS SN37 0 5 mil diamond spherical
i l'VIII it ' pi wriorl in. [ iii rriiiiieis < m n in: i» It ,iii '
iiiiriiini .i..i i. .».iii in ~ 4th vi'lPN mutiniiiiiiui iii mi. ti .,

SANSUI ELECTRIC CO LTD

CABINET! Slimline cabinet wtth anti-howling insulators
and hinged lreerstop dust cover

120V/240V

tUsable ltO-tSO/ZZDVZSOVI

50i60Hz

U S A and Canada models

120v SOHZ only

Europe models

220V SOHZ only

UK models 240V SDHZ only

POWER REQUIREMENTS

POWER CONSUMPTION to walls

DIMENSIONS 430mm mama'lw
Nflmm i5%"iH
356mm iiiit'lD

WEIGHT 4 3kg i9 sibsl Net

5 6kg t12 Slbsl Packed

ACCESSORIES 45 rpm record spindle adaptor

Design and specifications subject to change without notice for improvements

I41 IZUMI 2

SANSUI ELECTRONICS CORPORATION

I I250 VALLEY BROOK AVENUE LVNDHURST NEW JERSEY 0707i U S A / TELEX NEW JERSEV 422633 SEC UI

(LIISlLL

SANSUI AUDIO EUROPE N V

NORTH TRADE BUILDING NOORDERLAAN I33 BUS i 2030 ANIWERF BELGIUM/TELEX 33538

Pllillcl} III JapantQOOOSK)
