Sansui P L41 Service Manual

Extracted text from Sansui P L41 Service Manual (Ocr-read)

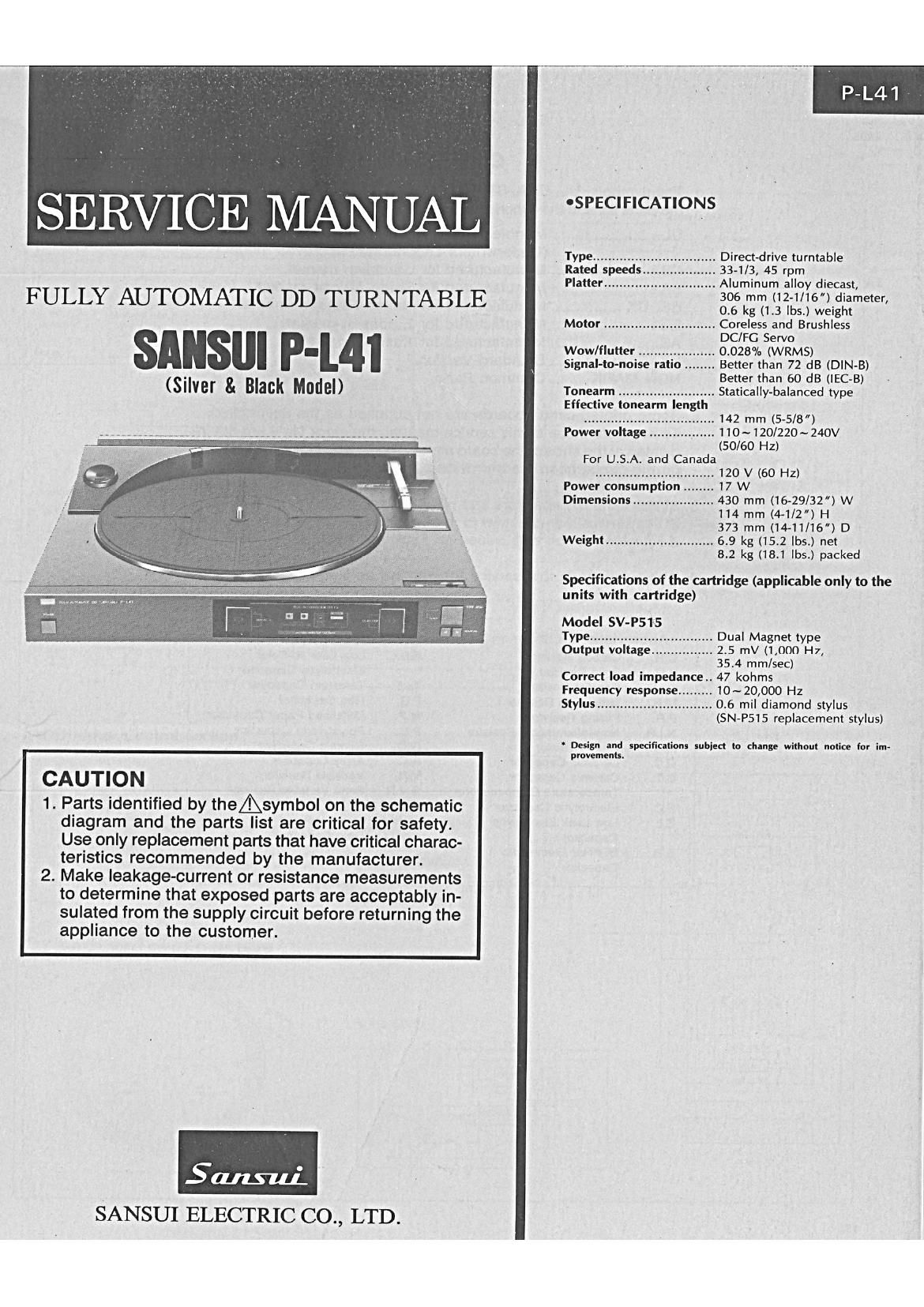

Page 1

OSPECIFICATIONS
Type ................................ Direct-drive turntable
Rated speeds... ..... 33-1/3, 45 rpm
. Platter ............................. Aluminum alloy diecast,
FULLY AUTOMATIC DD TURNTABLE g9: ngfgfigs{}§vgig;meten
- ' Motor ............................. Coreless and Brushless

DC/FG Servo
- Wow/flutter .................... 0.028% (WRMS)
Signal-to-noise ratio ........ Better than 72 dB (DIN-B)
. . Better than 60 dB (lEC-B)
(Silver & BlaCk MOdel) Tonearm ......................... StaticalIy-balanced type

Effective tonearm length
.................................. 142 mm (5-5/8)

Power voltage ................ 110~120/220~240V
(50/60 HZ)
For U.S.A. and Canada
............................... 120 V (60 Hz)
Power consumption ........ 17 W
Dimensions ..................... 430 mm (16-29/32) W

114 mm (4-1/2) H

373 mm (14-11/16) D
Weight ............................ 6.9 kg (15.2 lbs.) net

8.2 kg (18.1 lbs.) packed

' Specifications of the cartridge (applicable only to the
units with cartridge)

Model SV-P515

Type ................................ Dual Magnet type

Output voltage ................ 2.5 mV (1,000 Hz,
35.4 mm/sec)

Correct load impedance.. 47 kohms

Frequency response ......... 10~20,000 Hz

Stylus .............................. 0.6 mil diamond stylus
(SN-P515 replacement stylus)

' Design and specifications subiect to change without notice for im-
provemenls.

CAUTION

1. Parts identified by theAsymbol on the schematic
diagram and the parts list are critical for safety.

' Use only replacement parts that have critical charac-
teristics recommended by the manufacturer.

2. Make leakage-current or resistance measurements
to determine that exposed parts are acceptably in-
sulated from the supply circuit before returning the
appliance to the customer.

L - I

SANSUI ELECTRIC CO., LTD.

Page 2

P-L41

CAUTION

1. The symbols, UL, CSA, SA, BS, UK, EU, AS and XX (EXPORT) on
the parts list and the schematic diagram mean followings respectively.

UL ....................... Manufactured for U.S.A market.
(Undewvriters Laboratories approved model.)

CSA .................... Manufactured for Canadian market.

SA ....................... Manufactured for South African market.

BS, UK ............... Manufactured for United Kingdom market.

EU ...................... Manufactured for European market.

AS ................. , ..... Manufactured for Australian market.

XX (EXPORT) ..... Standard Version.

NON MARK ........ Common Parts.

2. Some printed circuit boards are not supplied as the assembled.
To separate these in this service manual, the stock Nos are not in-
dicated at the ends of the board names. However, the individual parts
on the circuit boards are provided by orders.

3. Since some of capacitors and resistors are omitted from parts lists
in this service manual, refer to the Common Parts List for capacitors
& resistors, which was issued on February 1983.

4. Abbreviations in this service manual are as follows.

C.Fi.
S.R.
Ce.R.
M.Fi.
F.Fl.
N.I.R.
A.R.
C.C.
C.T.

E.C.
E.L.

E.B.

- OAbbreviations List

2 Carbon Resistor

: Solid Resistor

2 Cement Resistor

2 Metal Film Resistor

2 Fusing Resistor

2 Non-Inflammable Resistor
: Array Resistor

: Ceramic Capacitor

: Ceramic Capacitor,

Temoerature Compensation

: Electrolytic Capacitor
2 Low Leak Electrolytic

Capacitor

2 Bi-Polar Electrolytic

Capacitor

E.B.L.

Ta.C.
F.C.
M.P.
RC.
6.0.
AC.
V.R.
S.V.R.
SW.
Chip R. :
Chip C. :

2 Low Leak Bi-Polar

Electrolytic Capacitor

: Tantalum Capacitor

: Film Capacitor

: Metalized Paper Capacitor
: Polystyrene Capacitor

: Gimmic Capacitor

2 Array Capacitor

: Variable Resistor

2 Semi Variable Resistor

: Switch

Chip Resistor
Chip Capacitor
