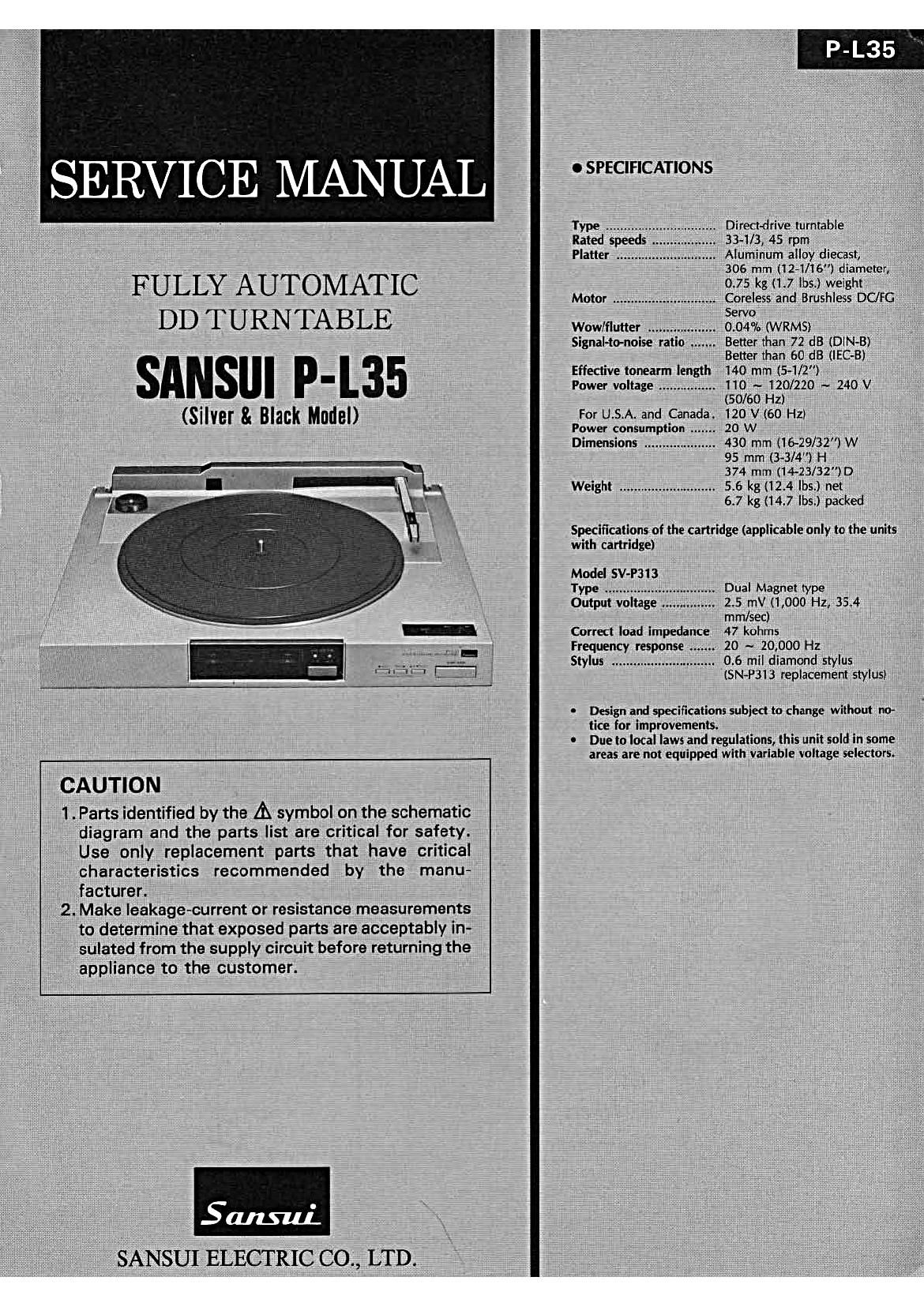

SERVICE MANUAL

Type ............................... Direct-drive turntable
Rated speeds .. ...... 33-1/3, 45 rpm
Platter .................. Aluminum alloy diecast,
306 mm (12-1/16) diameter,

FULLY AUTOMATIC @Zril'éilnfilfiidsmifihéam

Motor .............................
DD T U R N TA B LE Wow/flutter ................... grille/u (W RMS)
Signal-to-noise ratio ....... Better than 72 d8 (DlN.B)

Better than 60 dB (lEC-B)

- Effective tonearm length 140 mm (5-1/2")
Power voltage ................ 110 ~ 120/220 ~ 240 V
(50/60 Hz)

(Silver & Black Mode For USA. and Canada. 120 v (60 Hz)
Power consumption ....... 20 W
Dimensions .................... 430 mm (16-29/32'0 W

95 mm (3-3/4) H

374 mm (14-23/32")D
Weight ........................... 5.6 kg (12.4 lbs.) net
' \, 6.7 kg (14.7 lbs.) packed

Specifications of the cartridge (applicable only to the units
with cartridge)

Model SV-P313

Type ............................... Dual Magnet type

Output voltage ............... 2.5 mV (1,000 Hz, 35.4
mm/sec)

_ Correct load impedance 47 kohms
Ii . _ V W V, - Frequency response ....... 20 ~ 20,000 Hz
' J . _ . .. .__ Stylus ............................. 0.6 mil diamond stylus
l . r-U-fi «vrl (SN-P313 replacement stylus)

- Design and specifications subject to change without no-
tice for improvements.

0 Due to local laws and regulations, this unit sold in some
areas are not equipped with variable voltage selectors.

CAUTION

1.Parts identified by the A symbol on the schematic
diagram and the parts list are critical for safety.
Use only replacement parts that have critical
characteristics recommended by the manu-
facturer.

2. Make leakage-current or resistance measurements
to determine that exposed parts are acceptably in-
sulated from the supply circuit before returning the
appliance to the customer.

Sans-u}.
SANSUI ELECTRIC CO., LTD.

Page 2

P-L35

CAUTION

1. The symbols, UL, CSA, SA, BS, UK, EU, AS and XX on the parts
list and the schematic diagram mean followings respectively.

UL ................. Manufactured for USA market.
(Underwriters Laboratories approved model.)

CSA ............... Manufactured for Canadian market.

SA ................. Manufactured for South African market.

BS, UK ........... Manufactured for United Kingdom market.

EU ................. Manufactured for European market.

AS ................. Manufactured for Australian market.

XX ................ Standard Version.

NON MARK ..... Common Parts.

2. Some printed circuit boards are not supplied as the assembled.
To separate these in this service manual, the stock No's are not
indicated at the ends of the board names. However, the individual
parts on the circuit boards are provided by orders.

3. Since some of capacitors and resistors are omitted from parts lists
in this service manual, refer to the Common Parts List for capaci-
tors & resistors, which was issued on February 1983.

4. Abbreviations in this service manual are as follows.

-0 Abbreviations List
C.R. : Carbon Resistor E.B.L. : Low Leak Bi~Polar
S.R. : Solid Resistor Electrolytic Capacitor
Ce.R : Cement Resistor Ta.C. : Tantalum Capacitor
M.R. : Metal Film Resistor F C : Film Capacitor
F.R. : Fusing Resistor M P : Metalized Paper
N.I.R. : Non-lnflammablé Resistor Capacitor
A.R. : Array Resistor P.C. : Polystyrene Capacitor
C.C. : Ceramic Capacitor G.C. : Gimmic Capacitor
C.T. : Ceramic Capacitor, A C : Array Capacitor
Temperature Compensation V.R. : Variable Resistor
E.C. : Electrolytic Capacitor S.V.R. : Semi Variable Resistor
E.L. : Low Leak Electrolytic SW. : Switch
Capacitor Chip R. : Chip Resistor
E.B. : Bi~Polar Electrolytic Chip C. 2 Chip Capacitor
Capacitor
