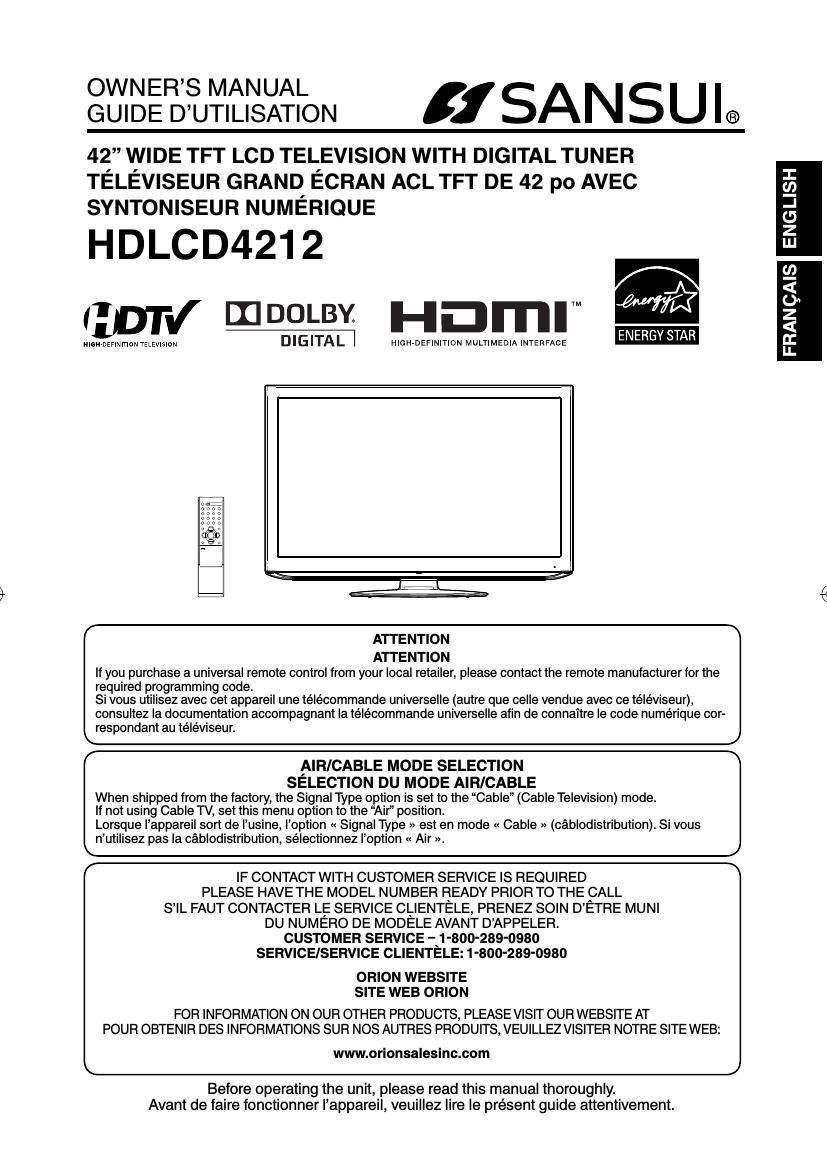

Sansui HD LCD 4212 Owners Manual

Page 1

2 ENGLISH Location of the required Marking The rating sheet and the safety caution are on the rear of the unit. The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. WARNING: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. CAUTION: Changes or modifications not expressly approved by the party responsible for compliance with the FCC Rules could void the user's authority to operate this equipment. WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. TO PREVENT THE SPREAD OF FIRE, KEEP CANDLES OR OPEN FLAMES AWAY FROM THIS PRODUCT AT TIMES. CAUTION: TO PREVENT ELECTRIC SHOCK DO NOT USE THIS POLARIZED PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. The lamp(s) within this product contain mercury. Disposal should be in compliance with local, state or federal laws. Record the model number and serial number. Model number Serial number

Page 2

3 ENGLISH 15) Apparatus should not be exposed to dripping or splashing, and objects filled with liquids, such as vases, should not be placed on the apparatus. 16) An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits, as contact with them might be fatal. 17) Do not overload wall outlets and extension cords, as this can result in a risk of fire or electric shock. 18) Do not push objects through any openings in this unit, as they may touch dangerous voltage points or short out parts that could result in fire or electric shock. Never spill or spray any type of liquid into the unit. 19) If an outside antenna or cable system is connected to the unit, be sure the antenna or cable system is grounded to provide some protection against voltage surges and built-up static charges, Section 810 of the National Electrical Code, ANSI/NFPA 70, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. ANTENNA DISCHARGE UNIT (NEC SECTION 810 20)ANTENNA LEAD IN WIRE GROUNDING CONDUCTORS (NEC SECTION 810 21) GROUND CLAMPS POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250, PART H) GROUND CLAMP ELECTRIC SERVICE EQUIPMENT NEC NATIONAL ELECTRICAL CODE S2898A EXAMPLE OF ANTENNA GROUNDING AS PER THE NATIONAL ELECTRICAL CODE

Page 5

6 How to attach the stand NOTE: - Unplug the AC cord from the AC INPUT terminal. - Before performing work spread cushioning over the base area to lay the TV on. - Do not touch or press the TV-screen, glass might break under pressure. Place the TV on its back on a  at surface (as shown). IMPORTANT: Do not touch or press on the LCD Screen. Panel could break under pressure. Align the stands bottom-plate as pictured. Note: The stand will only attach in one direction. Press in the direction of the arrow until you hear a click. Finally secure the bottom-plate with 4 screws (supplied). LCD PANELSIDE Please note mark on the stand is facing the LCD panel side. Finally secure the bottom-piate with 4 screws (included). ATTACHING THE STAND Please note mark on the stand is facing the LCD panel side. NOTE: To detach the stand, perform the step in reverse order. -

Page 14

15 ENGLISH To connect a HDMI or a DVI device to the unit The HDMI1 input receives digital audio and uncompressed video from a HDMI device or uncompressed digital video from a DVI device. When you connect to a DVI device with a HDMI-to-DVI adapter cable, it transfers only video signal. Separate analog audio cords required. Connections to other equipment (continued) Rear of the unit HDMI - to - DVI adapter cable (HDMI type A connector) (not supplied) Audio cord (not supplied)HDMI cable (type A connector) (not supplied) To DVI output To HDMI out or HDMI device DVI device To HDMI IN To PC/HDMI AUDIO IN NOTE: When using HDMI1 to connect your HDMI or DVI devices, you must select the corresponding audio input source (HDMI or DVI) on the menu screen (see page 18). Otherwise you will only see the image with no sound. If you connect an external component (cable box, satellite receiver, etc.) to this LCD TV using an HDMI cable or a DVI to HDMI cable, the image will not display if the output resolution of the component is set to 480i. To receive the picture you must change the output resolution on the external component. Should you require further instruction, please contact the manufacturer of the external component. - - To Audio (L) Input To Audio (R) Input Audio cord (not supplied)Amplifier Rear of the unit To connect an audio system This connection allows you to use an audio amplifier and external speakers, and adjust the audio level using the TVs remote control. To control the audio, turn on the TV and the stereo amplifier, and turn off the TVs built-in speakers (see page 18). NOTE: To hear sound when using an external audio amplifier, the volume of both the TV and the amplifier must be set above 0 (zero). For example, if the volume of the TV is set to 0, you will not be able to hear any sound, even if the volume of the amplifier is at its highest level. - To VAR AUDIO OUT
