Extracted text from Sansui HD LCD 1955B Owners Manual (Ocr-read)

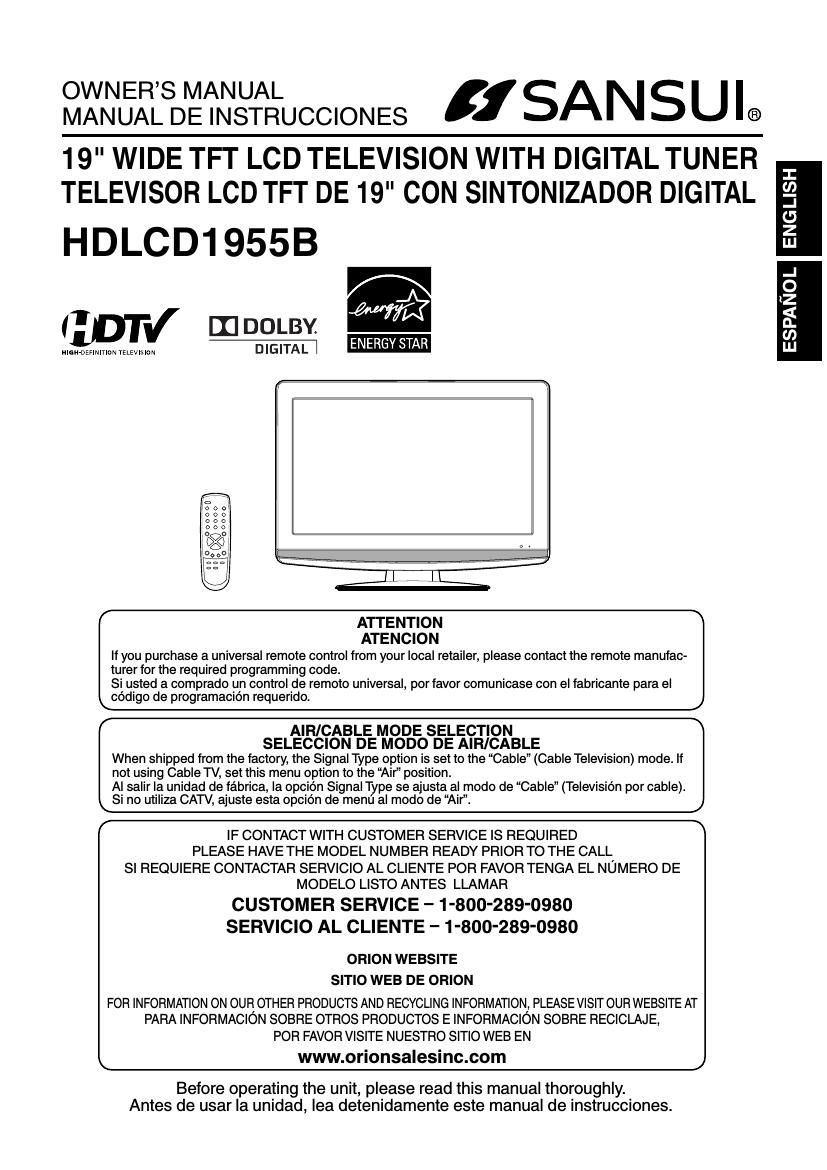

Page 1
2
ENGLISH
Location of the required Marking
The rating sheet and the safety caution are
on the rear of the unit.
The lightning flash with arrowhead
symbol, within an equilateral triangle
is intended to alert the user to the
presence of uninsulated dangerous
voltage within the product's enclosure
that may be of sufficient magnitude to
constitute a risk of electric shock.
The exclamation point within an
equilateral triangle is intended to
alert the user to the presence of
important operating and maintenance
(servicing) instructions in the literature
accompanying the appliance.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER
(OR BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
WARNING: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
CAUTION: Changes or modifications not expressly approved by the party responsible for compliance with the FCC Rules could void the user's authority to operate this equipment.
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
TO PREVENT THE SPREAD OF FIRE, KEEP CANDLES OR OPEN FLAMES AWAY
FROM THIS PRODUCT AT TIMES.
CAUTION: TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS POLARIZED PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE
FULLY INSERTED TO PREVENT BLADE EXPOSURE.
The lamp(s) within this product contain mercury.
Disposal should be in compliance with local, state or
federal laws.
Record the model number and serial number.
Model number Serial number
Page 2
3
ENGLISH
15) Apparatus should not be exposed to dripping or splashing, and objects filled with liquids, such as vases, should not be placed on the apparatus.
16) An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an
outside antenna system, extreme care should be taken to keep from touching such power lines or
circuits, as contact with them might be fatal.
17) Do not overload wall outlets and extension cords, as this can result in a risk of fire or electric shock.
18) Do not push objects through any openings in this unit, as they may touch dangerous voltage points or short out parts that could result in fire or electric shock. Never spill or spray any type of liquid into
the unit.
19) If an outside antenna or cable system is connected to the unit, be sure the
antenna or cable system is grounded
to provide some protection against
voltage surges and built-up static
charges, Section 810 of the National
Electrical Code, ANSI/NFPA 70, provides
information with respect to proper
grounding of the mast and supporting
structure, grounding of the lead-in
wire to an antenna discharge unit, size
of grounding conductors, location of
antenna discharge unit, connection to
grounding electrodes, and requirements for the grounding electrode.
ANTENNA
DISCHARGE UNIT
(NEC SECTION 810 20)ANTENNA LEAD IN WIRE
GROUNDING CONDUCTORS
(NEC SECTION 810 21)
GROUND CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H)
GROUND
CLAMP
ELECTRIC SERVICE EQUIPMENT
NEC NATIONAL ELECTRICAL CODE
S2898A
EXAMPLE OF ANTENNA GROUNDING AS PER THE NATIONAL ELECTRICAL CODE
Page 12
13
Y
P
b
Pr
To connect the LCD TV to a VCR with an SVideo cord
If you connect a VCR with a S-Video cable to the S-VIDEO IN jack on the rear side of the unit, you must also
connect the audio cables to the AUDIO IN jacks on the rear of the unit.
The S-Video cable only carries the video signal. The audio signal is separate.
NOTE:
When the S-Video cable and the standard video cable are connected at the same time, the S-Video cable
takes precedence. - The exact arrangement you use to interconnect various video and audio components to this unit is dependent
on the model and features of each component. Check the Owners Manual provided with each component for
the location of video and audio inputs and outputs.
To connect the LCD TV to a VCR
Connections to other equipment
To connect to a DVD player with Component Video Input
You can enjoy a high quality picture by connecting the units COMPONENT VIDEO OUT jacks of your DVD
player with the COMPONENT video cables (not supplied). Rear of the unit
To Video/Audio OUT
Video/Audio cord (not supplied) To VIDEO/AUDIO IN
To S-Video OUT
To Audio OUT Audio cord (not supplied) S-Video cord (not supplied) To S-VIDEO IN
To AUDIO IN Rear of the unit
To Component OUT
Audio cord
(not supplied) Component video cord (not supplied)
To component AUDIO IN Rear of the unit
To COMPONENT INTo Audio OUT
NOTE:
Component Video input of the unit are for use with a device which output 480i/1080i interlaced signals and
480p/720p progressive signals. -VCR
VCR
DVD
or
To connect the TV to a camcorder, or a TV Game
To playback from a camcorder, connect the camcorder to the unit as shown.
This unit can also be used as a display device for many video games. However, due to the wide variety of
signals generated by these devices and subsequent hook-up variations required, they have not all been
included in the suggested connection diagrams. Youll need to consult each components Owners Manual for
additional information.
Rear of the unit
Video/Audio cord (not supplied) To VIDEO/AUDIO IN
To Video/Audio OUT
ENGLISH
Page 13
14
Connections to other equipment
Using an AV Amplifier with builtin digital surround
If you are using an Amplifier with built-in digital surround sound, you can enjoy various audio systems including
Dolby Digital Surround audio that sounds just like the movie.
Connect an AV amplifier with builtin Dolby Digital decoder, etc. as shown below.
Coaxial digital cable
(not supplied)
AV Amplifier with built-in digital surround
decoder as listed aboveCenter Speaker To COAXIAL DIGITAL
AUDIO OUT
To Coaxial
Digital Audio IN
Rear of the unit
Front
Speaker
(Left)Front
Speaker
(Right) Subwoofer
Surround
Speaker (Left)
Surround
Speaker
(Right)
TV
NOTE:
When you are viewing digital broadcast, this unit will not work in conjunction with DTS audio or MPEG audio.
There will be no sound output if connected to an AV amplifier with a built-in DTS decoder or MPEG decoder. -
VGA cable (not supplied)
To connect the TV to a PC (Personal Computer)
Before you connect this TV to your PC, change the adjustment of your PCs Resolution and
Refresh rate (60 Hz).
Connect one end of a (male to male) VGA cable to the video card of the computer and the other end to the VGA
connector PC MONITOR on the rear of the
TV . Attach the connectors firmly with the screws on the plug. In case
of a Multimedia computer, connect the audio cord to the audio output of your Multimedia computer and to the
AUDIO connector of the PC AUDIO IN jack of the TV. Press INPUT SELECT on the remote control to select PC
mode. Switch on the computer. The TV can operate as the computer monitor.
Monitor Display modes
MODE Resolution Refresh rate
VGA 640x480 60Hz
SVGA 800x600 60Hz
XGA 1024x768 60Hz
WXGA 1280x768 60Hz
WXGA 1280x720 60Hz
WXGA 1360x768 60Hz
To return to normal mode
Press INPUT SELECT again. To PC
AUDIO IN
NOTE:
The on-screen displays will have a different appearance in PC mode than in TV mode.
If there is no video signal from the PC when the unit is in PC mode, No signal will appear on the TV-screen. -
-Rear of the unit
Audio cord (not supplied)To PC
MONITOR IN
Page 48
25
ESPAÑOL
Solución de problemas
SÍNTOMA POSIBLE SOLUCIÓN
El TV no
funciona.Verifique que el cable de alimentación esté
conectado.
Pruebe con otro tomacorriente de CA.
La alimentación está desconectada;
revise
el fusible o el interruptor automático.
Desconecte la unidad, y vuelva a
conectarla al cabo de una hora. -
-
-
-
Sonido de
baja calidad o
ausencia de
sonido.La estación o el servicio de TV cable
están con problemas; sintonice otra
estación.
Verifique los ajustes de volumen
(volumen y silenciamiento).
Determine si hay posibles fuentes de
interferencia. -
-
-
Imagen de
baja calidad o
ausencia de
imagen.La estación o el servicio de TV cable
están con problemas; sintonice otra
estación.
Verifique que haya canales almacenados
en la memoria.
Revise las conexiones de la antena o
sistema TV cable; reoriente la antena.
Determine si hay posibles fuentes de
interferencia.
Verifique los ajustes de los controles de
imagen. -
-
-
-
-
Mala recepción
en algunos
canales.La estación o el servicio de TV cable
están con problemas; sintonice otra
estación.
Verifique que haya canales almacenados
en la memoria.
La señal de la estación es débil; reoriente
la antena.
Determine si hay posibles fuentes de
interferencia. -
-
-
-
Mala definición
de los colores
o ausencia de
color.
La estación o el servicio de TV cable están
con problemas; sintonice otra estación.
Verifique que haya canales almacenados
en la memoria.
Verifique los ajustes de los controles de
imagen.
Revise las conexiones de la antena o
sistema TV cable; reoriente la antena.
Determine si hay posibles fuentes de
interferencia. -
-
-
-
-
La imagen
presenta
oscilación o
desplazamiento.
La estación o el servicio de TV cable están
con problemas; sintonice otra estación.
Verifique que haya canales almacenados
en la memoria.
El servicio TV cable está transmitiendo
una señal codificada.
Ajustar antena. -
-
-
-
Consulte la siguiente lista de localización de errores si experimenta problemas con su TV LCD. Consulte
con su concesionario local ó tienda de servicio si continúan los problemas. Compruebe que se han hecho
correctamente todas las conexiones cuando utilice el equipo con otros aparatos.
SÍNTOMA POSIBLE SOLUCIÓN
Problemas
con la pantalla
en emisiones
digitales.Compruebe la potencia de la señal digital. -
No hay
recepción de
TV cable.Revise todas las conexiones del sistema
TV cable.
Ajuste la opción Signal Type al modo
Cable.
La estación o el servicio de TV cable están
con problemas; sintonice otra estación. -
-
-
Aparecen
barras
horizontales o
verticales en
la pantalla.Controle las conexiones de la antena,
ajuste o redireccione la antena.
Determine si hay posibles fuentes de
interferencia. -
-
La recepción
no es posible
más allá del
canal 13.Asegúrese de que la opción de menú
Signal Type está en el modo apropiado.
Si está usando una antena, revise las
conexiones de la antena de UHF. -
-
El control
remoto no
opera.Las pilas están débiles o agotadas, o han
sido insertadas en forma incorrecta.
El mando a distancia está fuera del
alcance, acérquese a la TV LCD (15 pies).
Asegúrese de apuntar la unidad de control
remoto hacia el sensor de control remoto.
Asegúrese de que no hay obstáculos entre
el mando a distancia y la TV LCD.
Verifique que el cable de alimentación esté
conectado. -
-
-
-
-
El televisor se
apaga.El temporizador de desactivación
automática ha sido activado.
El suministro de energía se ha
interrumpido. -
-
La función
de subtítulo
cerrado no
está activada.Estación de TV está experimentando
problemas o programa sintonizado no está
en modo de subtítulo cerrado. Pruebe en
otro canal.
Verifique la conexión de TV cable o antena
VHF/UHF, reposicione o gire la antena.
Configure Subtítulos Ocultos en el menú. -
-
-
El idioma
deseado no
se
muestra.Seleccione el idioma apropiado en las
opciones del menú. -
PARA SERVICIO AL CLIENTE, AYUDA ADICIONAL PARA LA INSTALACION Y PARA LA OPERACION, O PARA
ORDENAR ACCESORIOS POR FAVOR LLAME:
18002890980
CUANDO LLAME A SERVICIO AL CLIENTE, POR FAVOR TENGA A MANO EL NÚMERO
DE SU MODELO
O ESCRIBA A:
ORION SALES, INC.
3471 N. UNION DR.
OLNEY, ILLINOIS 62450
PARA INFORMACIÓN SOBRE OTROS PRODUCTOS E INFORMACIÓN SOBRE RECICLAJE,
POR FAVOR VISITE NUESTRO SITIO WEB EN
www.orionsalesinc.com
