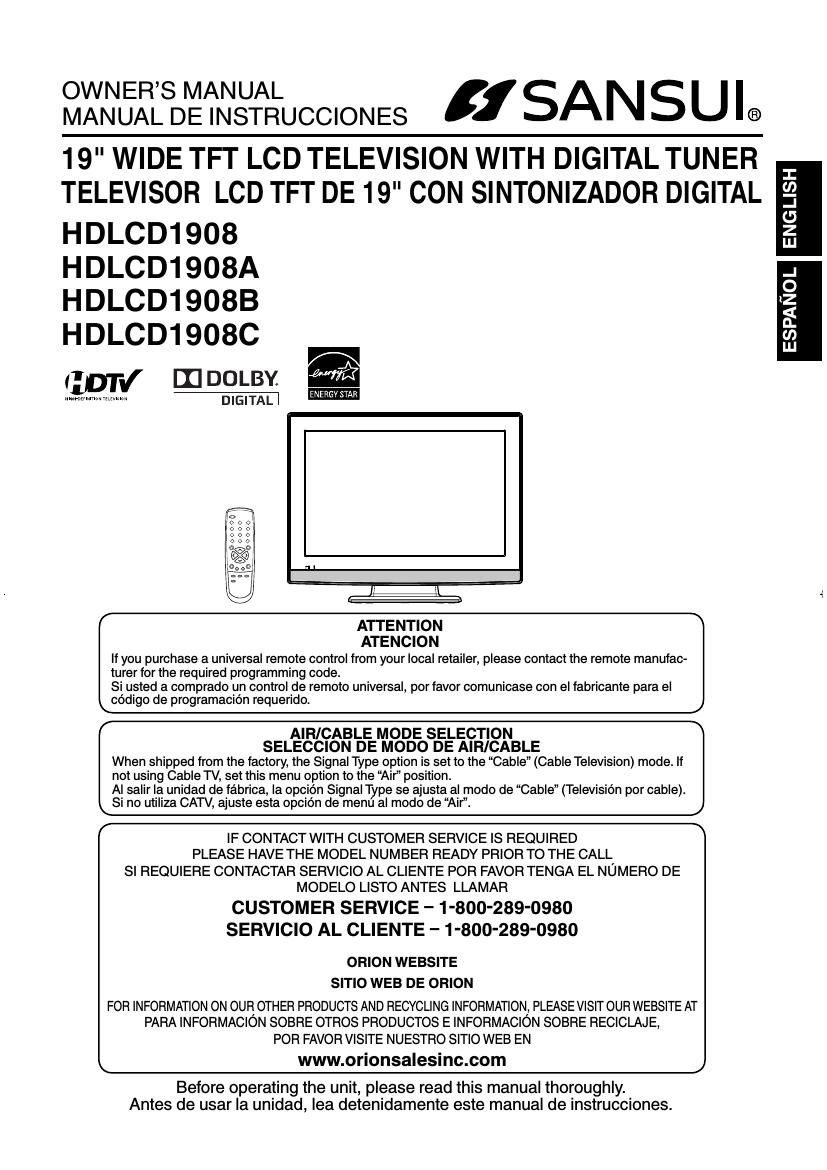

Extracted text from Sansui HD LCD 1908B Owners Manual (Ocr-read)
Page 1
2
Location of the required Marking
The rating sheet and the safety caution are
on the rear of the unit.
The lightning flash with arrowhead
symbol, within an equilateral triangle
is intended to alert the user to the
presence of uninsulated dangerous
voltage within the product's enclosure
that may be of sufficient magnitude to
constitute a risk of electric shock.
The exclamation point within an
equilateral triangle is intended to
alert the user to the presence of
important operating and maintenance
(servicing) instructions in the literature
accompanying the appliance. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER
(OR BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
WARNING: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
CAUTION: Changes or modifications not expressly approved by the party responsible for compliance with the FCC Rules could void the user's authority to operate this equipment.
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
CAUTION: TO PREVENT ELECTRIC SHOCK DO NOT USE THIS POLARIZED PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE
FULLY INSERTED TO PREVENT BLADE EXPOSURE.
The lamp(s) within this product contain mercury.
Disposal should be in compliance with local, state or
federal laws.
Record the model number and serial number.
Model number Serial number
ENGLISH
Page 2
3
ENGLISH
IMPORTANT SAFETY INSTRUCTIONS
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all applicable instructions.
5) Do not use this apparatus near water.
6) Clean only with a clean dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The
wide blade and the third prong are provided for your safety. If the provided plug does not fit into your outlet,
consult an electrician to replace the obsolete receptacle.
10) Protect the power cord from being walked on or pinched particularly at plug, and the point where it exits from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only a cart, stand, tripod, bracket, or table designed to support the weight and size of the unit. When a cart is used, use caution when moving the cart/
apparatus combination to avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug
damage, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or
has been dropped.
15) Apparatus should not be exposed to dripping or splashing, and objects filled with liquids, such as vases, should not be placed on the apparatus.
16) An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside
antenna system, extreme care should be taken to keep from touching such power lines or circuits, as
contact with them might be fatal.
17) Do not overload wall outlets and extension cords, as this can result in a risk of fire or electric shock.
18) Do not push objects through any openings in this unit, as they may touch dangerous voltage points or short out parts that could result in fire or electric shock. Never spill or spray any type of liquid into the unit.
19) If an outside antenna or cable system is connected to the unit, be sure the antenna
or cable system is grounded to provide
some protection against voltage surges
and built-up static charges, Section 810 of
the National Electrical Code, ANSI/NFPA
70, provides information with respect to
proper grounding of the mast and supporting
structure, grounding of the lead-in wire to an
antenna discharge unit, size of grounding
conductors, location of antenna discharge
unit, connection to grounding electrodes,
and requirements for the grounding
electrode.
S3126A
PORTABLE CART WARNING
(symbol provided by RETAC)
ANTENNA
DISCHARGE UNIT
(NEC SECTION 810 20)ANTENNA LEAD IN WIRE
GROUNDING CONDUCTORS
(NEC SECTION 810 21)
GROUND CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H)
GROUND
CLAMP
ELECTRIC SERVICE EQUIPMENT
NEC NATIONAL ELECTRICAL CODE
S2898A
EXAMPLE OF ANTENNA GROUNDING AS PER THE NATIONAL ELECTRICAL CODE
Page 16
17
ENGLISH
NOTE:If a channel with no broadcast is selected, the
sound will automatically be muted.
It may take a few seconds for a digital channel
picture to appear on screen after being selected.
To select the video input source
To view a signal from another device connected to
your LCD TV, such as a VCR or DVD player, press
INPUT, then press
/ or corresponding Number
buttons (03). You can select TV, Video, Component or PC depending on which input jacks you used to
connect your devices.
Source Selection
1.Video
2.Component
3.PC
[0 3]:Select
0.TV
CH + /
Press and release CH + / . The channel
automatically stops at the next channel set into
memory.
For proper operation, before selecting channels, they
should be set into the memory. See Memorizing
channels on pages 15 and 16.
DISPLAY
Press DISPLAY to display the current information on
the screen.
When the TV receives a digital signal, the digital
information will appear.
62 001 HDTV Moving Picture1CH 1
D gital Air
No Program Information is available Sleep Timer Off
English
Fu l
1080i
Channel number - Station name
Channel label (if preset) - Signal type
V-Chip rating - Audio language
Sleep timer - Picture size
Program guide
Resolution
When the TV receives a analog signal, the analog
information will appear. -
-
-
-
-
-
14Analog Cable S eep T mer Off
Fu l
480i
Channel number - Channel label (if preset)
V-Chip rating - Signal type
Sleep timer -
Audio information (Stereo or SAP)
Picture size - Resolution
Press DISPLAY again to clear the call display. -
-
-
-
NOTE: After a few seconds, DISPLAY screen will return to
normal TV-operation automatically.
-
-
-
RECALL
This button allows you to go back to the last channel
selected by pressing
RECALL. Press RECALL again
to return to the last channel you were watching.
MUTE
Press MUTE to switch off the sound. The TVs sound
will be silenced and Mute will appear on the screen.
The sound can be switched back on by pressing this
button again or the VOL + or .
SLEEP
To set the TV to turn off after a preset amount of time,
press SLEEP on the remote control. The clock will
count up 10 minutes for each press of the SLEEP
button (Off, 0h 10m, 0h 20m, ..., 2h 0m). After the
sleep time is programmed, the display will appear
briefly every ten minutes to remind you that the sleep
timer is operating. To confirm the sleep timer setting,
press SLEEP and the remaining time will be displayed
for a few seconds. To cancel the sleep timer, press
SLEEP repeatedly until the display turns to Off.
Sleep Timer
0h 10m
Labeling channels
Channel label appear with the channel number
display each time you turn on the TV, select a
channel, or press DISPLAY.
You can choose any four characters to identify a
channel.
To create channel labels
1 Press MENU, then press or to select
Channel menu, then press
or ENTER .
2 Press or to select Ch Label, then
press
or ENTER .
The Ch Label menu will appear.
3 Press or to select a channel you want to label,
then press
.
Ch Label
Label Clear >>
: Adjust
Ch LabelChannel Number 15 1
: Select
4 Press or repeatedly until the character you
want appears in the first space.
Label Clear >>
: Adjust
Ch LabelChannel Number 15 1
: Select
Ch Label A
ENTER:Set
