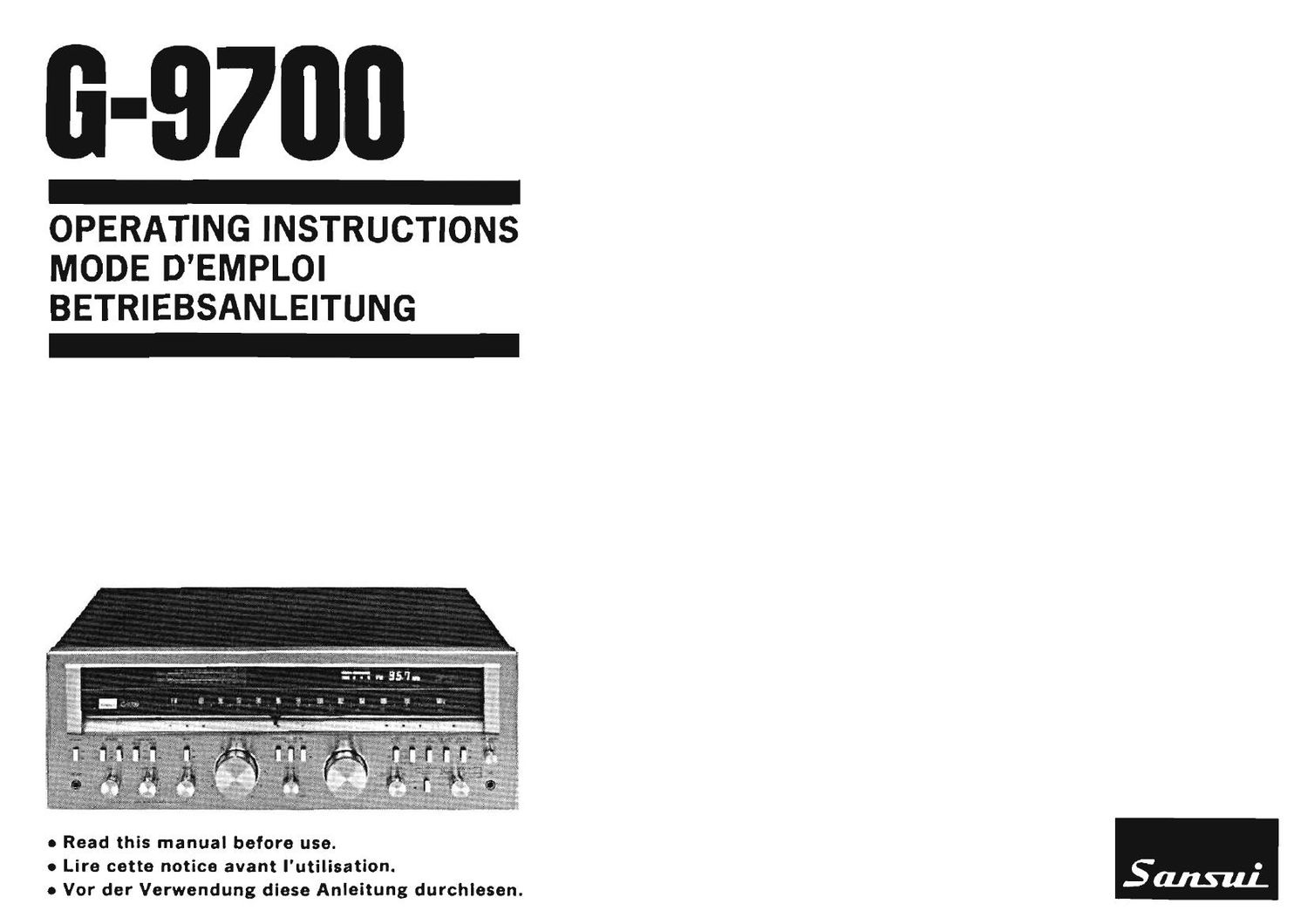

6-9700

OPERATING INSTRUCTIONS
MODE D'EMPLOI
BETRIEBSANLEITUNG

=-.-. u 35'7-

o Read this manual before use.
0 Lire cette notice avant I'utilisation.
o Vor der Verwendung diese Anleitung durchlesen.

Page 2

We are grateful for your choice of this fine Sansui high fidelity prodUCt,
Before you operate it, we suggest that you read this booklet once
through carefully, familiarizing yourself with the important precau-
tions, operational procedures and every one of the product's many
features. It will help to ensure that you will avoid possible damage and
that the product's superb performance will be yours to enjoy for many
years to come.

Table of contents _

Precautions ................................. 4
Connections ................................. 8
Panel information ............................. 13
Operating procedures ........................... 26
Some useful hints ............................. 38
Specifications ................................ 44

WARNING: To prevent fire or shock hazard,
do not expose this appliance to rain or
moisture.

0 The Model No. and Serial No. of your unit are shown on its back
panel.

0 Do not lose the Warranty Card that carries your unit's Model No.
and Serial No.

Page 16

MEAD

" * *s. I» V:
16 [ iin' Fr D.i:> OGCU -*
VOLUME
50
40 60
30 m BALANCE
2 0% 2
20 so

MIC MIXING
LEVEL

455

5 TUNING Control
Use it to tune in on the frequency of a desired AM or FM station.

6 SIGNAL Indicator

It indicates the signal strength at the antenna input terminals of a re-
ceived AM or FM station.

7 TUNE Indicator

The optimal tuning position for FM broadcasts is achieved when the
round indicator light in the center of the TUNE indicator lights up.
When tuning slips slightly from the optimal tuning position, the round
indicator light goes off and one of the triangular indicators at the left
and right of the round indicator light comes on. The triangular indica-
tor lights point in the direction the tuning control should be moved.
When tuning slips totally from signal, triangular indicator lights also go
off.

0 TUNE Indicator is not in operation during AM reception.

8 VOLUME Control
It adjusts the output level (volume) of your audio system. The more to
the right it is turned, the greater the volume.

9 BALANCE Control

The volume of the left and right speakers can be adjusted by the
BALANCE control. As the control is turned counterclockwise from the
center position, the sound from the left speaker becomes louder than
that from the right speaker, and vice versa. Adjust so that the sounds
from the left and right speakers are heard with equal volume at your
listening position.

10 MIC Jack
11 MIC MIXING LEVEL Control

Insert a microphone plug into the front-panel MIC jack and adjust its

level with the MIC MIXING LEVEL control. You can mix microphone

sounds with other program sources. (Refer to page 36).

0 When no microphone is used, be sure to turn its control fully
counterclockwise to the 0" position.

Page 50

SANSUI ELECTRIC CO, LTD.

5 a 14-1 Izumi 2-Chomel Suginami-ku, TOKYO 168, JAPAN
ML
TELEPHONE: (03) 323-1111/TELEX, 232-2076

Printed in Japan (59M'IH 92050000 >
