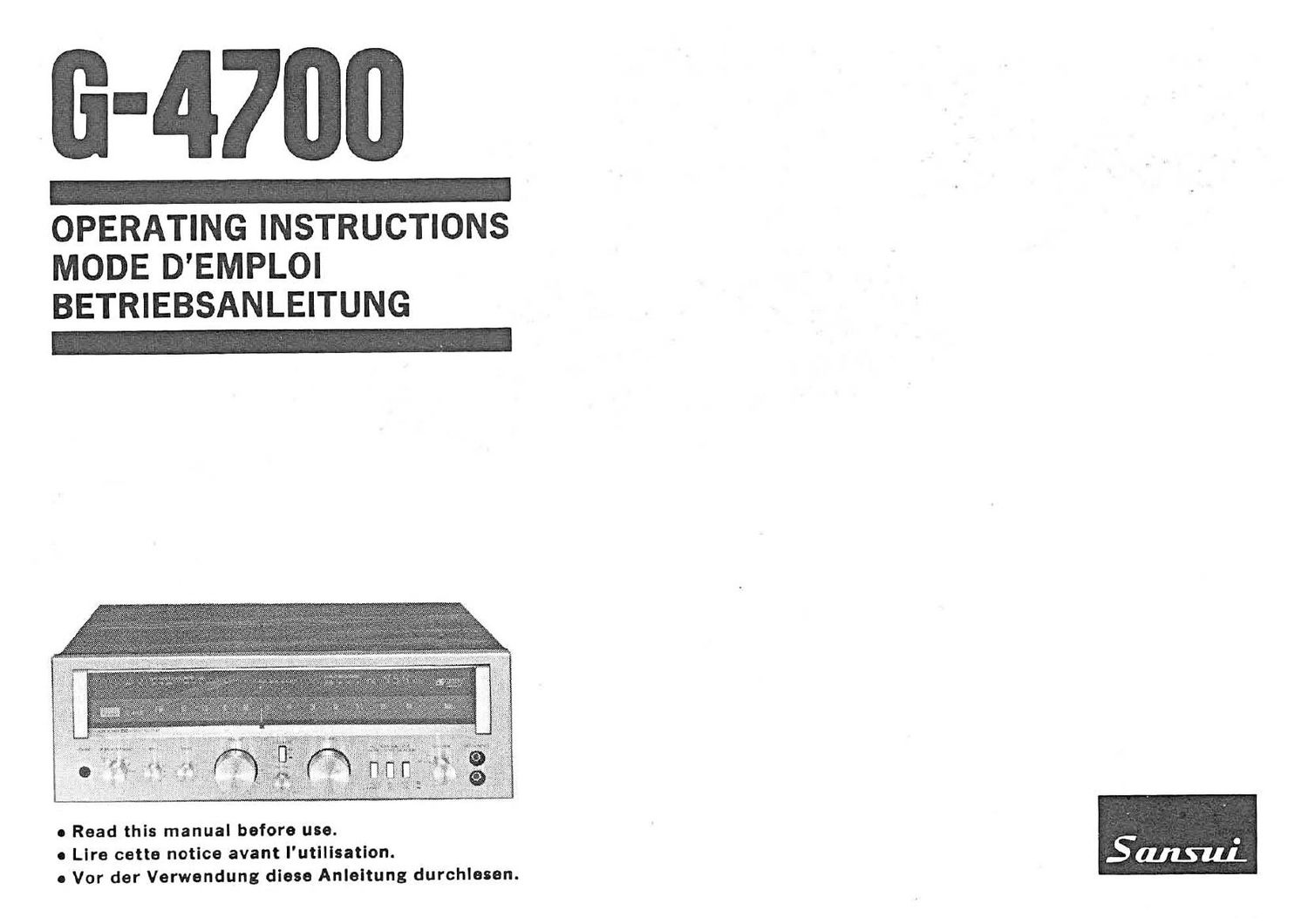

Page 1
6-4700
OPERATING INSTRUCTIONS
MODE DEMPLOI
BETRIEBSANLEITUNG
o Read this manual before use.
0 Lire cette notice avant I'utlllsatlon.
o Vor der Verwendung diese Anleitung durchleson.
Page 2
We are grateful for your choice of this fine Sansui high fidelity product.
Before you operate it, we suggest that you read this booklet once
through carefully, familiarizing yourself with the important precau-
tions, operational procedures and every one of the product's many
features. It will help to ensure that you will avoid possible damage and
that the products superb performance will be yours to enjoy for many
years to come.
Precautions
............................. 4
Connections ................................. 8
Panel information ............................. 13
Operating procedures ........................... 22
Some useful hints ............................. 30
Specifications ................................ 36
WARNING: To prevent fire or shock hazard,
do not expose this appliance to rain or
moisture.
0 The Model No. and Serial No. of your unit are shown On its back
panel.
0 Do not lose the Warranty Card that carries your units Model No.
and Serial No.
Page 34
.CCECi
OUTPUT
®©1
/
El:
D nlli4lltl-III-ltlklllllllkblllullIIll .I
D ©
© 0 O O G 0 © nun )9
TAPE/AUX ~
SELECTOR TAPE PLAY/AUX
L.________.___.___.________._._J
@@
The front panel TAPE PLAY/AUX terminals and the rear panel TAPE/
AUX terminals are auxiliary input terminals, and these feature the same
electrical performance as the TAPE PLAY terminals. If a tape deck for
playback only is connected to these terminals, then the contents of a
tape can be dubbed onto another tape in a tape deck connected to the
TAPE REC terminals. Besides a tape deck, it is also possible to connect
a unit (such as a special cartridge adaptor) with an identical output
level.
0 Do not connect two units at the same time to the front panel TAPE
PLAY/AUX terminals and the rear panel TAPE/AUX terminals.
Use only one set for the connections.
* Instructions and requirements indicated may vary to some extent
depending on sales area, local laws and regulations.
