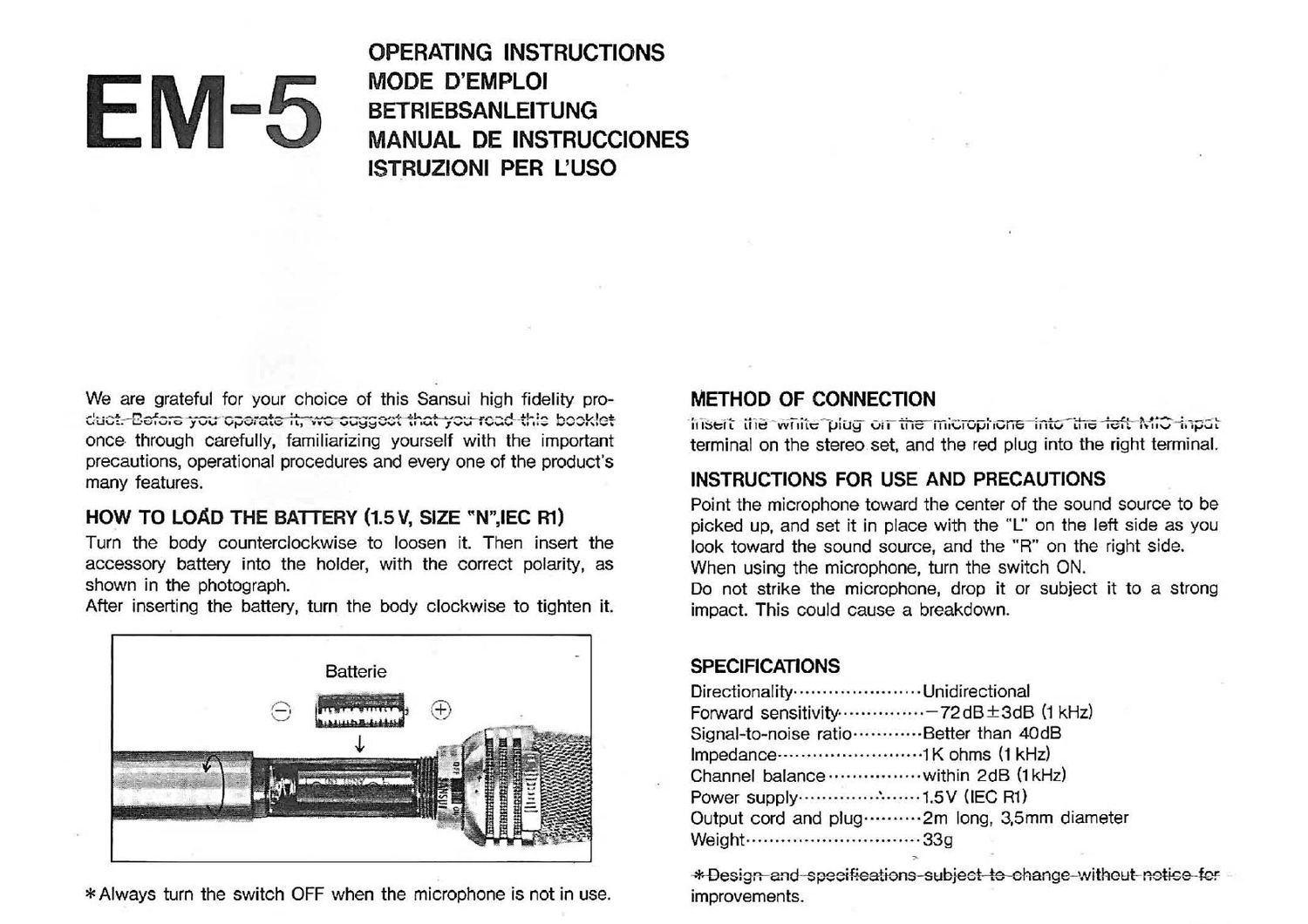

OPERATING INSTRUCTIONS

MODE DEMPLOI
BETRIEBSANLEITUNG

EM-5

ISTRUZIONI PER LUSO

We are grateful for your choice of this Sansui high fidelity pro-

,I...~L,_I"_I.J,.Ht...~ -.. Mug-"*4... 7 weak; . ,,+!-' l
uuuz. Lrtnuucl yvu' sperms u, in; suggest u... ,csrcad .13 basket

once through carefully, familiarizing yourself with the important
precautions, operational procedures and every one of the product's
many features.

HOW TO LOAD THE BATTERY (1.5 V, SIZE N,IEC R1)

Turn the body counterclockwise to loosen it. Then insert the
accessory battery into the holder, with the correct polarity, as
shown in the photograph.

After inserting the battery, turn the body clockwise to tighten it.

Batterie

*Always turn the switch OFF when the microphone is not in use.

MANUAL DE INSTRUCCIONES

METHOD OF CONNECTION
insert the whiteplug OIT The micropticneintc 616 1a.: MIC taps:

terminal on the stereo set, and the red plug into the right terminal.

INSTRUCTIONS FOR USE AND PRECAUTIONS

Point the microphone toward the center of the sound source to be
picked up. and set it in place with the "L" on the left side as you
look toward the sound source, and the R on the right side.
When using the microphone, turn the switch ON.

Do not strike the microphone, drop it or subject it to a strong
impact. This could cause a breakdown.

SPECIFICATIONS

Directionality ---------------------- Unidirectional

Forward sensitivity -------------- .-72 dB:3dB (1 kHz)
Signal-to-noise ratio ------------ Better than 40dB
|mpedance ......................... 1 K ohms (1 kHz)

Channel balance ---------------- within 2dB (1 kHz)

Power Supply .............. ....... 1'5V (IEC R1)

Output cord and plug ---------- 2m long, 8.5mm diameter
Weight .............................. 339

*Design-and-speeifieatiens-subiest-te~ehange-witheuknetiee-fer
improvements.
