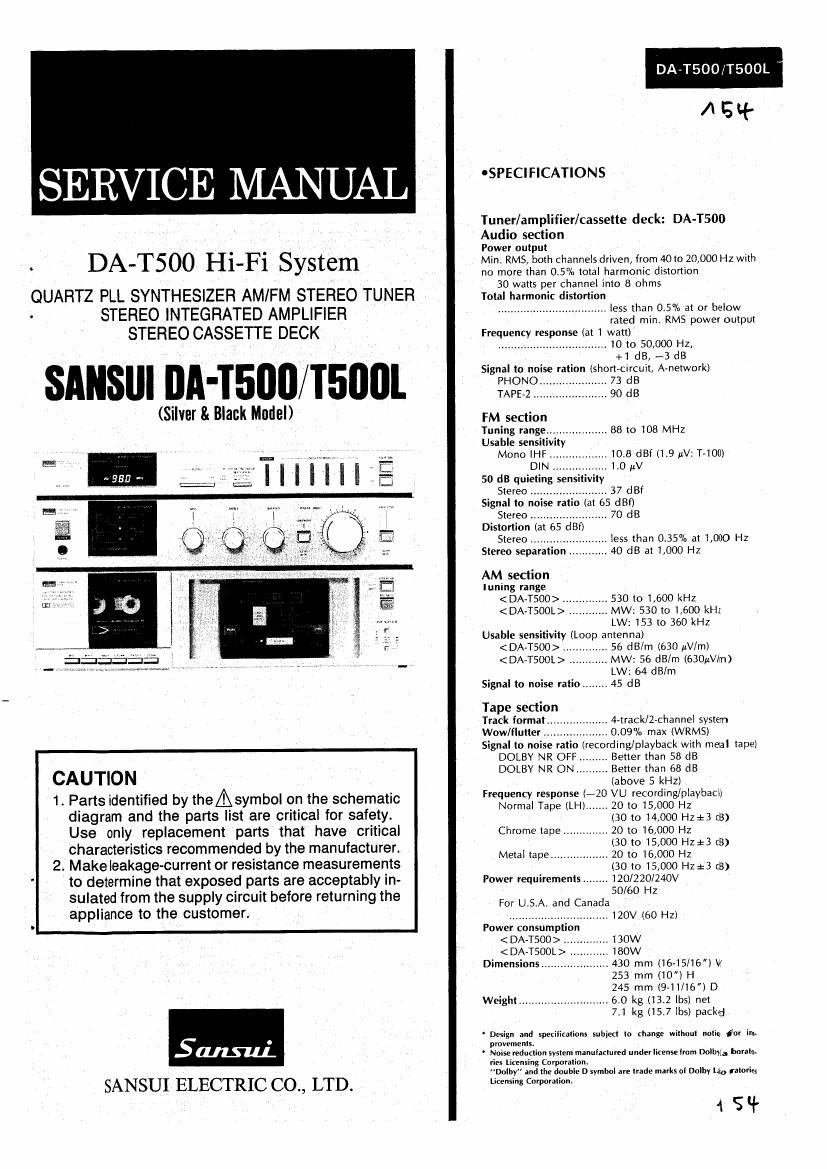

QUARTZ PLL SYNTHESIZER AM/FM STEREO TUNER

o

SERVICE MANUAL

DA-TSOO Hi-Fi System

STEREO INTEGRATED AMPLIFIER
STEREO CASSETTE DECK

SANSIII Ill-150W 1501.

(Silver It Black Model)

Tim

CAUTION

1. Parts identified by the Asymbol on the schematic
diagram and the parts list are critical for safety.
Use only replacement parts that have critical
characteristics recommended by the manufacturer.

2. Make leakage-current or resistance measurements
to determine that exposed parts are acceptably in-
sulated from the supply circuit before returning the
appliance to the customer.

S ans-111'.
SANSUI ELECTRIC CO., LTD.

SPECIFICATIONS

Tuner/amplifier/cassette deck: DA-TSOO

Audio section
Power output
Min. RMS, both channelsdriven, from 40 to 20,000 Hz with
no more than 0.5% total harmonic distortion

30 watts per channel into 8 ohms
Total harmonic distortion

.................................. less than 0.5% at or below

rated min, RMS power output

Frequency response (at 1 watt)

........ .1010 50,000 HZ.

+1 dB, -3 dB

Signal to noise ration (short-circuit, A-network)

PHONO 73 dB
TAPE-2r .. 90 dB
FM section
Tuning range ................... 88 to 108 MHz
Usable sensitivity
Mono IHF .. 10.8 dBf (19 uV: T400)
DIN . 1.0 w

50 dB quieting sensrtrvrty
Stereo ........... 37 dBl
Signal to noise ratio (at 65 4580
Stereo .............. 70 dB
Distortion (at 5 dBf)
Stereo ........ .1 less than 0.35% at 1,000 Hz

Stereo separation .1 40 dB at 1,000 Hz


AM section

Tuning range
, 530 to 1,600 kHz

L\\/: 153 to 360 kHz
Usable sensitivity (Loop antenna)

. 56 dB/m (630 uV/m)
., MW: 56 dB/m (630uV/n)
LW: 64 dB/m
Signal to noise ratio 45 dB

Tape section

Track format 4~trackl2-channel system

Wow/flutter. 0.09% max (WRMS)

Signal to noise ratio (recording/playback with meal tape)
DOLBY NR OFF Better than 58 dB
DOLBV NR ON. .1 Better than 68 d8

(above 5 kHz)

Frequency response (-20 VD recording/playbacir
Normal Tape (LH)....... 20 to 15,000 Hz

(30to14/000 Hzi3 EB)

20 to 16,000 Hz

(30 to 15,000 H213 EB)

Chrome tape .

Metal tape .................. 20 to 16,000 Hz
(30 to 15,000 Hzt3 (3)
Power requirements ........ 120/220/240V
50/60 HZ

For USA, and Canada
................ 120V (60 HZ)
Power consumption
< DA-TSOD > .
< DA-TSDOL >
Dimensions ........


430 mm (16-15/16) \1,
253 mm (10) H

245 mm (9-11/16") D
Weight ........................... 6.0 kg (13.2 lbs) net
7.1 kg 115,7 lbs) packed

Design and specifications subied to (hang: without ninth) in: ink
pmvemems.

Noise reduction system manufactured under license iron. norm, Iroralo.
ries licensing Cnrporalkm.

"Dolby and the double 0 symbol are trade marksoi Dolby in, moist;

Licensing Corporation

Page 2

IA T500/T500L

1.

. ~Abbreviations List

CAUTION
The symbols, UL, CSA, BS, UK, EU, AS and XX on the parts list and
the schematic diagram mean followings respectively.

UL ....................... Manufactured for USA market.
(Underwriters Laboratories approved model.)

CSA ...... . Manufactured for Canadian market.

BS, UK. . Manufactured for United Kingdom market.
EU .. . Manufactured for European market.

AS... . Manufactured for Australian market.

XX ................. Standard Version.

NON MARK .. Common Parts.

. Some printed circuit boards are not supplied as the assembled.

To separate these in this service manual, the stock Nos are not in-
dicated at the ends of the board names. However, the individual parts
on the circuit boards are provided by orders.

. Since some of capacitors and resistors are omitted from parts lists

in this service manual, refer to the Common Parts List for capacitors
& resistors, which was issued on February 1983.

. Abbreviations in this service manual are as follows.

C.R. : Carbon Resistor E.B. : Ei-Polar Electrolytic

SR. : Solid Resistor Capacitor

Ce.R. : Cement Resistor E.B.L. : Low Leak Bi-Polar

MR. : Metal Film Resistor Electrolytic Capacitor

F.R. : Fusing Resistor Ta.C. : Tantalum Capacitor

N.I.R. : Non-lnflammable Resistor F.C. : Film Capacitor

A.R. : Array Resistor M.P. : Metalized Paper Capacitor

C.C. : Ceramic Capacitor P.C. : Polystyrene Capacitor

C.T. : Ceramic Capacitor, G.C. : Gimmic Capacitor
Temoerature Compensation AC. : Array Capacitor

E.C. : Electrolytic Capacitor V.R. : Variable Resistor

E.L. : Low Leak Electrolytic S.V.R. : Semi Variable Resistor
Capacitor SW. : Switch
