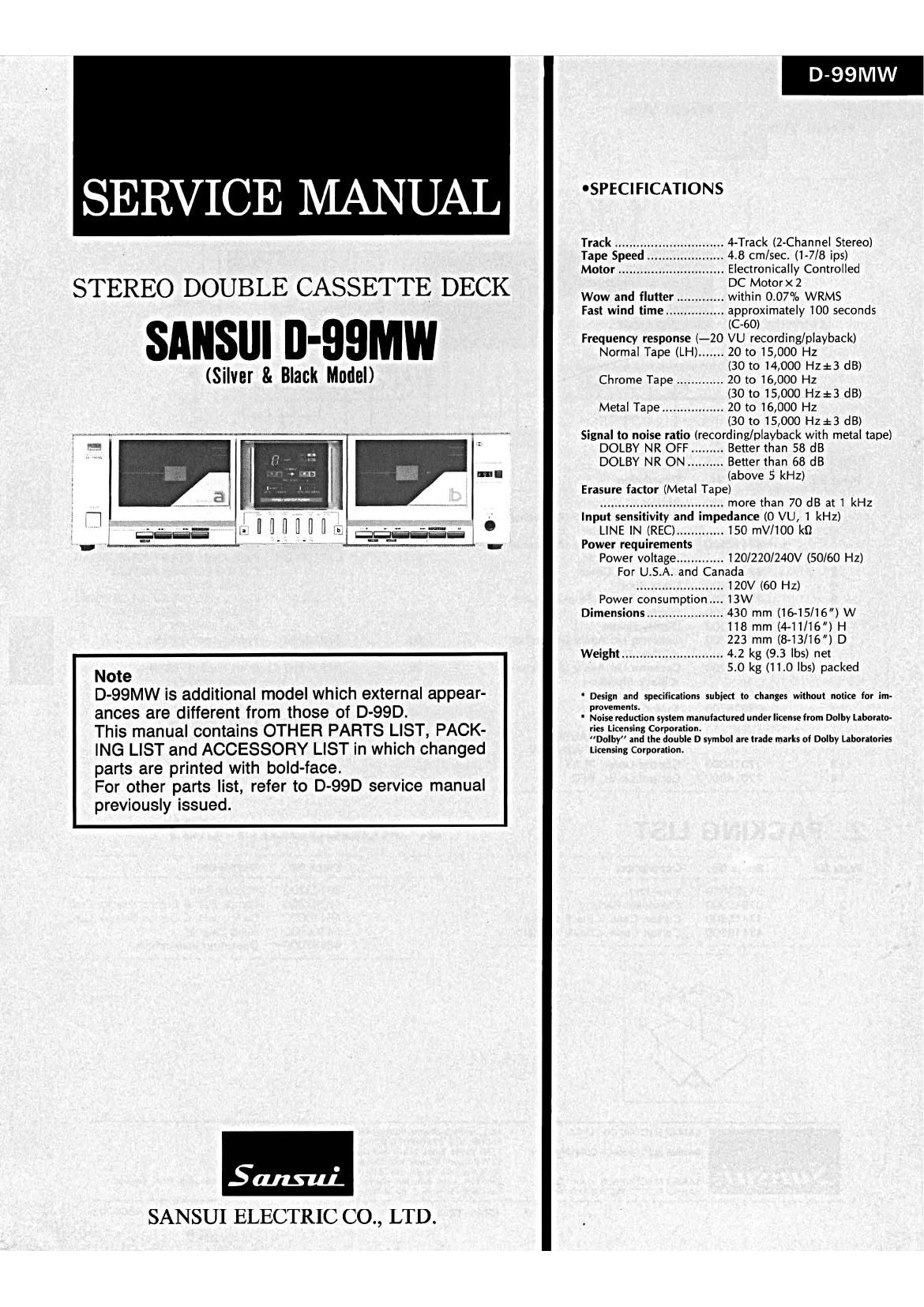

D-99MW

SERVICE MANUAL SPECIFICATIONS

Track .............................. 4-Track (2-Channel Stereo)
Tape Speed 4.8 cm/sec. (1-7/8 ips)
Motor ............................. Electronically Controlled
DC M Z
STEREO DOUBLE CASSETTE DECK Wow and flutter ............. Wlthlnoéflgfi/u WRMS
Fast wind time ................ approximately 100 seconds

(C-60)
I 0- Frequency response (-20 VU recording/playback)
Normal Tape (LH) ....... 20 to 15,000 Hz

(30 to 14,000 HZ:L-3 dB)

(Silver 8! mm Madei) Chrome Tape ............. 20 to 16,000 Hz
(30 to 15,000 Hz:3 dB)
Metal Tape ................. 20 to 16,000 Hz

. (30 to 15,000 sze3 dB)

Signal to noise ratio (recording/playback with metal tape)

DOLBY NR OFF ......... Better than 58 dB

DOLBY NR ON .......... Better than 68 dB

(above 5 kHz)

Erasure factor (Metal Tape)

.................................. more than 70 dB at 1 kHz
Input sensitivity and impedance (0 VU, 1 kHz)

LINE IN (REC) ............. 150 mV/iOO k9
-- Power requirements
Power voltage ............. 120/220/240V (50/60 Hz)

For U.5.A. and Canada
........................ 120V (60 Hz)
Power consumption.... 13W

Dimensions ..................... 430 mm (16-15/16) W
118 mm (4-11/16) H
223 mm (8-13/16) D

- - - Weight ............................ 4.2 kg (9.3 lbs) net

5.0 kg (11.0 lbs) packed

Note

D'ggMW is additional mOdei WhiCh external appear' Design and specifications subiect to changes without notice for im-
anges are different from those 0f D-99D' Eggnreznliztion system manufactured underlicensefrom Dolby Laborato-
Thls manual contalns OTHER PARTS LIST PACK- rlgoitiwcye'l'saiaitfizrgziliigg symbol are trade marks of Dolby Laboratories
iNG LIST and ACCESSORY LiST in WhiCh Changed Licensing Corporation.

parts are printed with bold-face.
For other parts list, refer to D-99D service manual
previously issued.

Satmu'.
SANSUI ELECTRIC CO., LTD.

Page 2

D-99MW

1.

OiFro nt View

OTHER PARTS

111. i

a.

3*.

doom do 1'2)

Q2) 15 18 11
Parts List
Parts No. Stock No. Description Parts No. Stock No. Description
1 07966900 Bonnet 15 46368400 Push SW, REC MUTE-DOLBY NR-
2 47417200 Cassette Lid Assy (A Mecha) DUBBlNG-COMPU EDIT-RELAY
PLAY-AMPS
47417500 Cassette Lid Assy (A Mecha) 16 47430700 Push Knob, REC MUTE
17 07910900 Push Knob, DOLBY NR-DUBBING
3 37008300 Mechanism Cover COMPU EDIT-RELAY PLAY
4 07946800 Dress Knob
5 47418700 Display Cover (Smoked Plate) 07911000 Push Knob, DOLBY NR-DUBBING
6 47417800 Display Panel COMPU EDIT-RELAY PLAY
7 07947000 Display Holder
8 47417300 Cassette Lid Assy (B Mecha) 18 47393200 Push Knob, AMPS
19 46360300 Push SW., POWER
47417700 Cassette Lid Ass'y (B Mecha) 20 07971210 Push Knob, POWER

9 46424300 Tape Counter 07911210 Push Knob, POWER
10 07976700 Tape Counter Belt
11 46265700 Headphone Jack 21 47486100 Front Panel Ass'y
12 07999600 Control Lever, PAUSE
STOP/EJECT-F.FWD~REW 47486200 Front Panel Assy
13 37015000 Control Lever, PLAY
14 37014900 Control Lever, REC

2. PACKING LIST

ACCESSORY LIST

Parts No. Stock No. Description Stock No. Description
1 91263810 Vinyl Bag 38103300 Pinplug Cord
2 07949000 Styrofoam Packing 46267300 Compu Edit. 81 Compu Selector Cord
3 47415900 Carton Case or 46410000 Compu Edit. 81 Compu Selector Cord
47416000 Carton Case 94300500 Head Cleaner
46897000 Operating Instruction

SANSUI ELECTRONICS (U.K.I
SANSUI ELECTRONICS G.M.B.H.:

SANSUI ELECTRIC C0., LTD.:
SANSUI ELECTRONICS CORPORATION:

LTD.:

14-1. Izumi 2-chome. Suginami-ku, Tokyo 168 Japan

PHONE: 103) 324-8891/TELEX: 232-2076 (International Division)

1250 Valley Brook Ave, Lyndhurst, NJ. 07071 U.S.A.

17150 South Margay Ave, Carson, California 90746 U.S.A.

3036 Koapaka Street. Honolulu, Hawaii 96819 U.S.A.

Unit 10A, Lvon Industrial Estate, Rockware Avenue, Geenlord, Middx U36, 0AA, England
Pau Ehrich Strasse 8, 6074 Roderrnark 2, West Germany

Printed in Japan (140620M)
