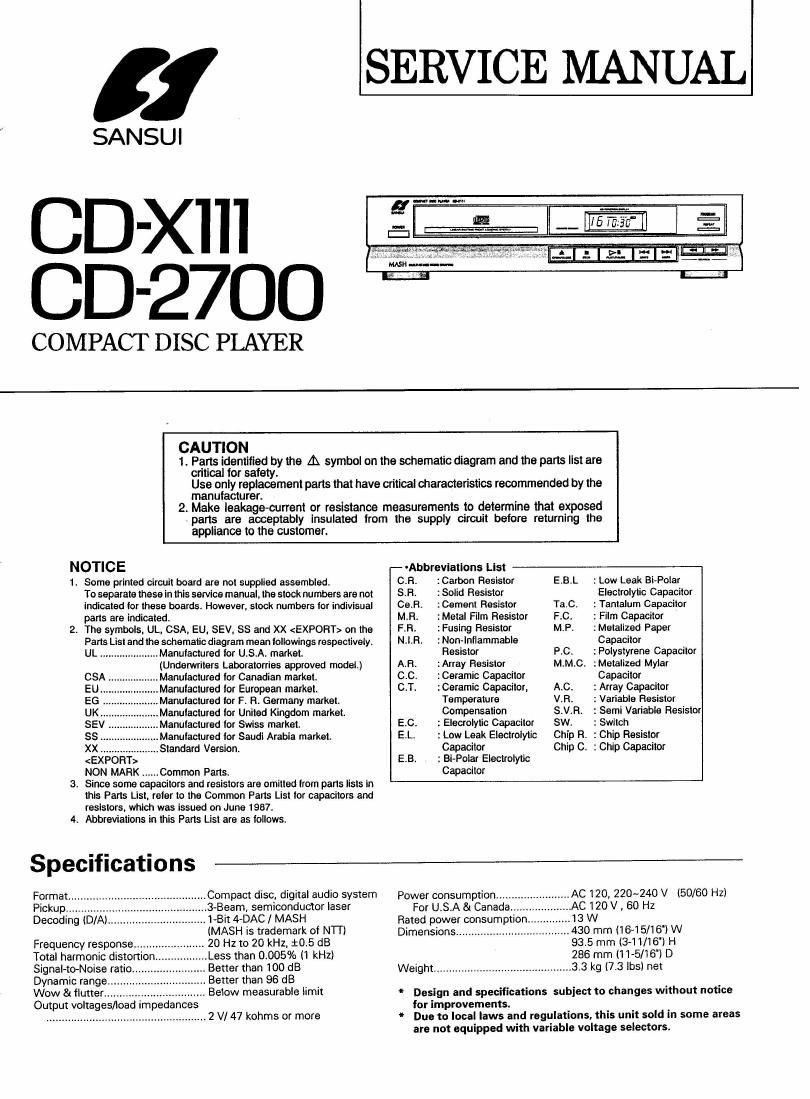

Page 1

1 [SERVICE MANUAL

SANSUI

CD-Xiii
(JD-2700

COMPACT DISC PLAYER

CAUTION

critical for safety.

manulacturer.

appliance to the customer.

1. Parts identified by the A symbol on the schematic diagram and the pans list are
Use only replacement parts that have critical characteristics recommended by the

2. Make leakage-current or resistance measurements to determine that exposed
» parts are acceptably insulated trom the supply circuit before returning the

NOTICE

1. Some printed circuit board are not supplied assembled.

To separate these in this sen/ice manual. the stock numbers are not
indicated tor these boards. However, stock numbers tor indivisual
parts are indicated.

2, The symbols. UL, CSA, EU. SEV, SS and XX on the
Parts List and the schematic diagram mean iollowings respectively.
UL .,....Manulaotured for U.S.A. market.

(Underwriters Laboratorries approved model.)

Manulactured for Canadian market.

Manufactured ior European market.

Manuiactured for F. Ft. Germany market.

Manutactured tor United Kingdom market.

Manulactured lor Swiss market.

Manufactured for Saudi Arabia market.

Standard Version.

NON MARK ...,,.Common Parts,

3, Since some capacitors and resistors are omitted from panelists in
this Parts List, rater to the Common Parts List lor capacitors and
resistors. which was issued on June 1987.

4. Abbreviations in this Parts List are as iollows.

-Abbreviatione List

QR. LCarbori Resistor E.B.L : Low Leak Bi-Polar
S.Ft. :Solid Resistor Electrolytic Capacitor
Ce.R. :Cement Resistor Ta.C. : Tantalum Capacitor
M.Fi. :Metal Film Resistor F.C. : Film Capacitor
F.R. :Fusing Resistor MP. :Metalized Paper
N.l.Ft. : Non-lnilammable Capacitor
Resistor P.C. :Polystyrene Capacitor
AH. :Array Resistor M.M.C. :Metalized Mylar
C.C. :Ceramic Capacitor Capacitor
C.T. :Ceramic Capacitor, A.C. : Array Capacitor
Temperature V.Fi. : Variable Resistor
Compensation SVR, : Semi Variable Resistor
E.C. : Elecrolyfic Capacitor SW. : Switch
E.L. : Low Leak Electrolytic Chip R. : Chip Resistor
Capacitor Chip C. : Chip Capacitor
EB. : Bi-Polar Electrolytic
Capacitor

Specifications

Format. ..Compact disc, digital audio system
Pickup. 3-Beam, semiconductor laser
Decoding (D/A). -Bit 4»DAC / MASH

(MASH is trademark of NTTi
20 Hz to 20 kHz, 10.5 dB
Less than 0.005% (1 kHz)
Better than 100 dB

Better than 96 dB

Below measurable limit

Frequency response.
Total harmonic distortio
Signal-to-Noise ratio
Dynamic range.
Wow 8i flutter.. ..
Output voltages/load impedances

.. 2 V/ 47 kohms or more

AC 120, 220~240 V (50/60 HZ)
,AC120V, 60 Hz

13 W

430 mm (1515/16') W

93.5 mm (3-11/16') H

286 mm (11-5/16') D

3 kg (7.3 lbs) net

Power consumption"...

For U.S.A 8i Canada
Rated power consumption.
Dimensions........,....,......

Weight..................

Design and specrtioations subject to changes without notice
for improvements.

Due to local laws and regulations, this unit sold in some areas
are not equipped with variable voltage selectors.

Page 2

CD-X111/2700

Cautions Concerning Handling of The Laser

CAUTION: USE OF CONTROLS FOR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE
SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIA110N EXPOSURE.
THE COMPACT DISC PLAYER SHOULD NOT BE ADJUSTED 0R REPAIRED BY ANYONE EXCEPT PROPERLY

QUALIFIED SERVICE PERSONNEL.

' The following label has been atfixed to the unit, listing the proper

procedure for working with the laser beam. (UL and XX model only)

PRODUCT COMPLIES WITH DHHS
RULES 21 CFR, SUBCHAPTER J.
PART 1040 10.
MANUFACTURED:

(CSA model only)

CERTIFIELD ONLY TO CANADIAN
ELECTRICAL CODE.
CERTIFIE EN VERTU DU CODE
CANADIAN DE LELECTFIICITE
SEULEMENT,

IEU model only)

CLASS 1
LASER PRODUCT

(EU model only)

ADVARSEL!

usmuc usznsmium vso harms,
MAR SIKKEMEDSAmmEnE En UDE
AF ruumm. uNnGL unsmELsE
son STRALING.

C3)

1. PACKING 81 ACCESSORY LIST

(Parts list)

Parts No.

Stock No.

Dewn'pdon

1

2
3
4

9905406640
9905405340
J38001 7340
J58001 7340
JS8502 5000
J58502 5200

Vinyl Bag
Vinyl Bag
Styrofoam Packing. right
Styrofoam Packing. left
Canon Case
Carton Case

Pom No.

Stock No.

Dowipfion

908001 7330
908001 7340
5620709501
71 58402081

Operating Instructions
Operating Instructions
Pin Plug Cord

Remote Controller Ass'y, R84 210
