Sansui C 1000 Service Manual

Page 1

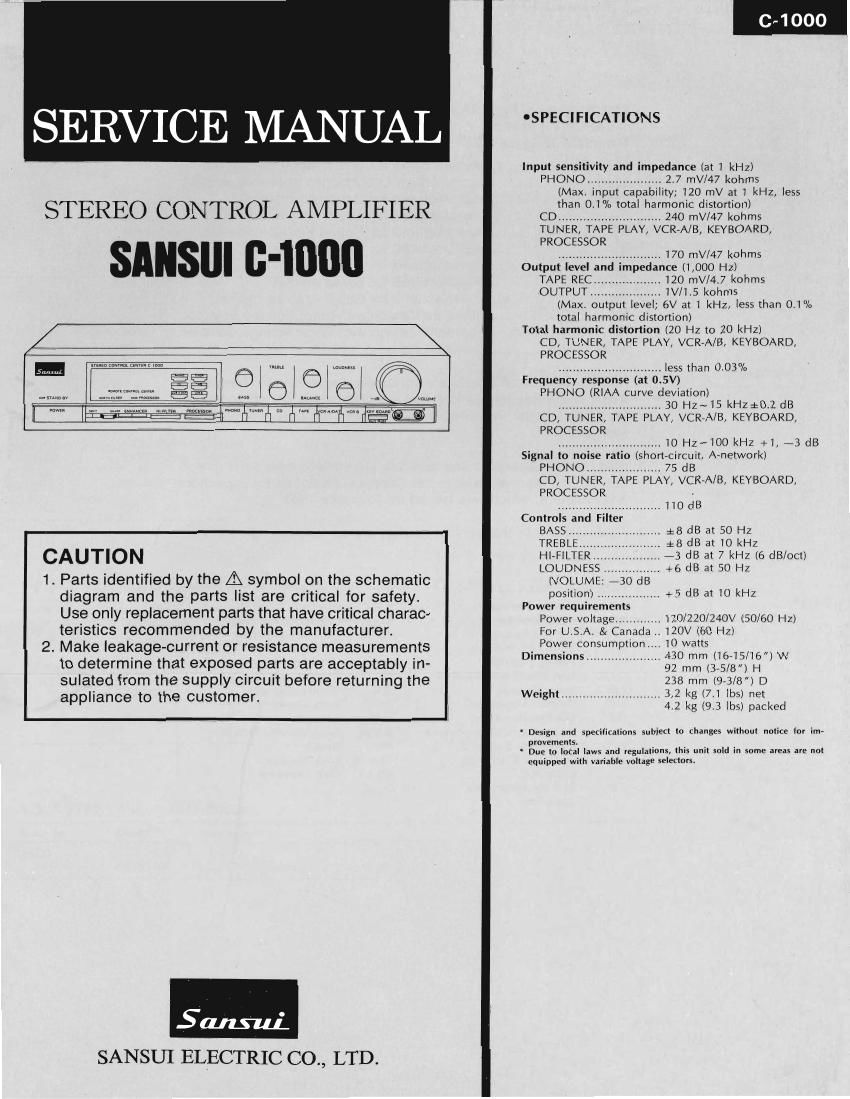

SERVICE MANUAL

STEREO CONTROL AMPLIFIER

SANSUI 0-1000

Q e
~1th W. cm ENNANKEI mnurn manna» TMDNDFH'WMHI cu h w: flag NUAfH ,(n dKfinfl

CAUTION

1. Parts identified by the A symbol on the schematic
diagram and the parts list are critical for safety.
Use only replacement parts that have critical charac-
teristics recommended by the manufacturer.

2. Make leakage-current or resistance measurements
to determine that exposed parts are acceptably in-
sulated from the supply circuit before returning the
appliance to the customer.

SANSUI ELECTRIC CO., LTD.

'SPECIFICATIONS

Input sensitivity and impedance (at 1 kHz)
PHONO ..................... 2,7 mV/47 kohms
(Maxi input capability; 120 mV at 1 kHz, less
than 0.1% total harmonic distortion)
CD ............................. 240 mV/47 kohms
TUNER, TAPE PLAY, VCR-A/B, KEYBOARD,
PROCESSOR
............................. 170 mV/47 kohms
Output level and impedance (1,000 Hz)
TAPE REC. 120 mV/4.7 kol'ims
OUTPUT. 1V/1.5 kohms
(Max. output level; 6V at 1 kHz, less than 0.1%
total harmonic distortion)
Total harmonic distortion (20 Hz to 20 kHz)
CD, TUNER, TAPE PLAY, VCRA/B, KEYBOARD,
PROCESSOR
............................. less than 0.03%
Frequency response (at 0.5V)
PHONO (RIAA curve deviation)
............................ 30 HZ~15 kHZiOJ dB
CD, TUNER, TAPE PLAY, VCRrA/B, KEYBOARD,
PROCESSOR
.................. 10 HZ~1OO kHz +1, 73 dB
Signal to noise ratio (shortscircutt, A-network)
PHONO ..................... 75 dB
CD, TUNER, TAPE PLAY, VCRrA/B, KEYBOARD.
PROCESSOR ,
........................... 110 cl
Controls and Filter

BASS... . i8 dB at 50 Hz
TREBLE i8 dB at 70 kHz
HlsFILTE 73 dB at 7 kHz (6 dB/oct)
LOUDNESS +6 dB at 50 Hz
(VOLUME: 730 dB
position) ................ +5 dB at 10 kHz
Power requirements
Power voltage ............. 120/220/240V (50/60 Hz)

For U.S.A. & Canada, 120V (60 Hz)
Power consumption 10 watts
Dimensions ................. . 430 mm (16715/16) W
92 mm (375/8) H
238 mm (9»3/8) D
Weight ........................... 3,2 kg (7.1 lbs) net
4.2 kg (9.3 lbs) packed

. Design and specificalions subject to changes without notice for imr

movements,
' Due Io Iotal laws and regulations, this unit sold in some areas are not

equipped with variable voltage selectors.

Page 2

NOTE

1. The symbols, UL, CSA, SA, BS, UK, EU, AS, SEV, SS, XX
and XX-V on the parts list and the
schematic diagram mean followings respectively.

UL ........................... Manufactured for USA market.
(Underwriters Laboratories approved model.)

CSA .. . Manufactured for Canadian market.

SA ..... . Manufactured for South African market.
BS, UK .. . Manufactured for United Kingdom market.
EU Manufactured for European market.

AS ..... Manufactured for Australian market.

SEV ._ Manufactured for Swiss market.

88 ..... .. Manufactured for Saudi Arabian market.

XX < EXPORT> ..... Standard Version with Inner Voltage Selector.
XX-V .. Standard Version with Outer Voltage Selector.
NON MARK... .. Common Parts.

2. Some printed circuit boards are not supplied assembled. To separate
these in this service manual, the stock numbers are not indicated
for these boards. However, stock numbers for individual parts are
indicated.

3. Since some capacitors and resistors are omitted from parts lists in
this service manual, refer to the Common Parts List for capacitors

and resistors, which was issued on February 1983.

0Abbreviations List

. Abbreviations in this service manual are as follows.

C.R. : Carbon Resistor E.B.L. : Low Leak Bi-Polar

S.R. : Solid Resistor Electrolytic Capacitor

Ce.R. : Cement Resistor Ta.C. : Tantalum Capacitor

M.R. : Metal Film Resistor F.C. : Film Capacitor

F.R. : Fusing Resistor M.P. : Metalized Paper Capacitor

N.l.R. : Non-lnflammable Resistor P,C. : Polystyrene Capacitor

A.R. : Array Resistor G.C. : Gimmic Capacitor

C.C. : Ceramic Capacitor A.C. : Array Capacitor

C.T. : Ceramic Capacitor, V.R. : Variable Resistor
Temperature Compensation S.V.R : Semi Variable Resistor

E.C. : Electrolytic Capacitor SW. : Switch

E.L, : Low Leak Electrolytic Chip R. : Chip Resistor
Capacitor Chip C. : Chip Capacitor

E.B. . BivPolar Electrolytic

Capacitor
