Sansui BA 202 Service Manual
This is the 17 pages manual for Sansui BA 202 Service Manual.
Read or download the pdf for free.
If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.
Extracted text from Sansui BA 202 Service Manual (Ocr-read)

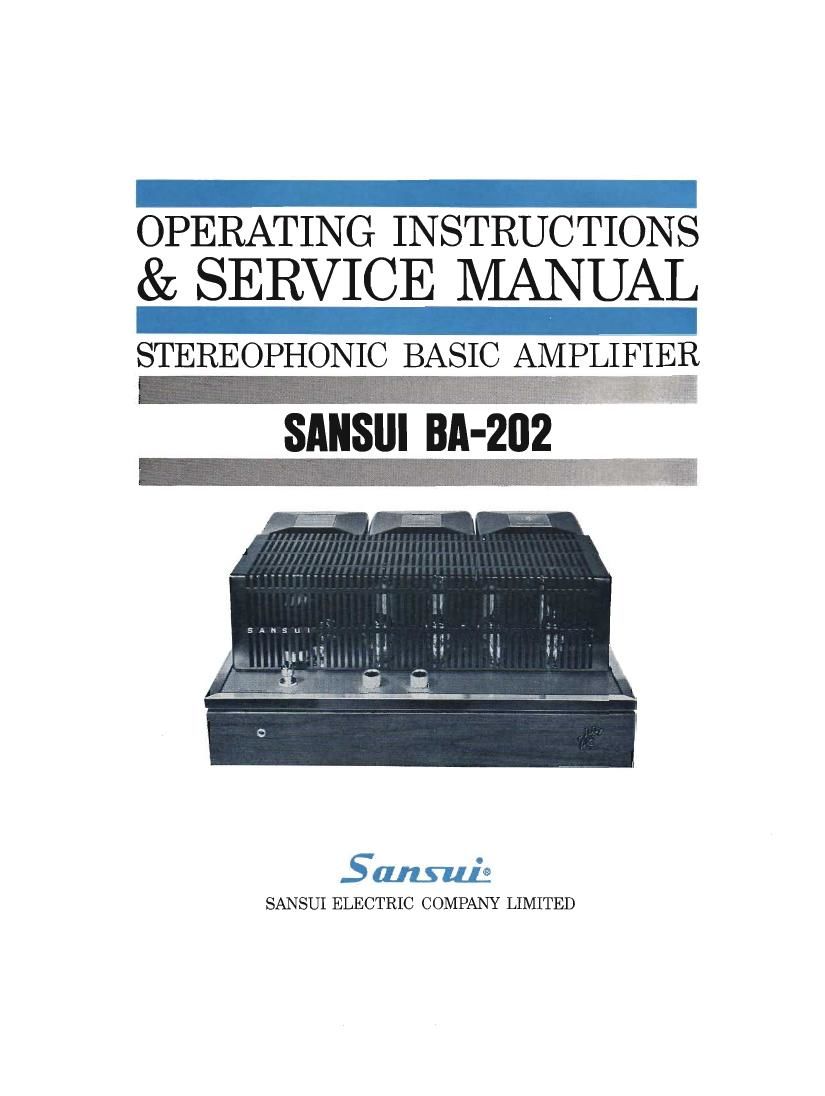

Page 1
-
OPERATING INSTRUCTIONS
& SERVICE MANUAL
-
STEREOPHONIC BASIC MPLIFIER
' ' i J
1, .2223 j
llie . '_ 1*._ J
11.. iiii-"AJvafi :
.S' '
(lnSllfl
SANSUI ELECTRIC COMPANY LIMITED
Page 2
Congratulations on owning this high quality power
amplifier manufactured by Sansui, the Worlds lead-
ing manufacturer of quality audio components.
Yours is the sister model of the BA-303 which has
been acknowledged as a breakthrough in the audio
history. Walnut case7 nonglare satin black finish,
select parts and many other features will give you
many years of listening pleasure and satisfaction. The
BA-202 can develop its outstanding performance as a
power amplifier for mid-ranges and tweeters in the
multi-channel system as well.
This manual has been prepared to guide you in pro-
per operation and maintenance of your BA»202. Please
read this carefully and keep it for future reference.
CONTENTS
OPERATING
Features ................................................ 2
Characteristics/Specifications ........................ 3
Connections and Operation ........................ 4, 5
Multi-Channel System .............................. 6, 7
Maintenance ............................................ 8
SERVICE MANUAL
Block Diagram/Exploded ............................ 9
Troubleshooting Chart .......................... 10V 11
Bias Adjustment/Parts Layout ...................... 12
Parts Layout/Test Point ............................ 13
Parts List .............................................. 14
Circuit Diagram ...................................... 15
FEATURES
6R-A8 Power Output
Tubes Plus Super Wide-
Range Output Transformer
Combined with a super wide-range out-
put transformer having 30 watt class
capacity, 6R-A8 power output tubes in
the fixed bias arrangement of Class AB
push-pull amplifier have set a new
standard of stability in performance.
The BA-202 assures you of the highest
possible stability over extended periods
of time.
HD Less Than 0.5% at
Rated Output
Harmonic distorsion is less than 0.5%
at rated output. IM distortion is less
than 1.0% at rated output. The con-
tinuous power is 11 Watts per channel
and the music power is 26 watts.
20 to 20,000 Hz Power
Bandwidth
The power bandwidth is 20 to 20,000Hz
73db at 0.5% THD.
Damping Factor 20 for
16 Ohms
More than 16db negative feedback is
applied for clear, clean tonal reproduc-
tion with the damping factor of 20.
