Sansui AUG 50 X Service Manual

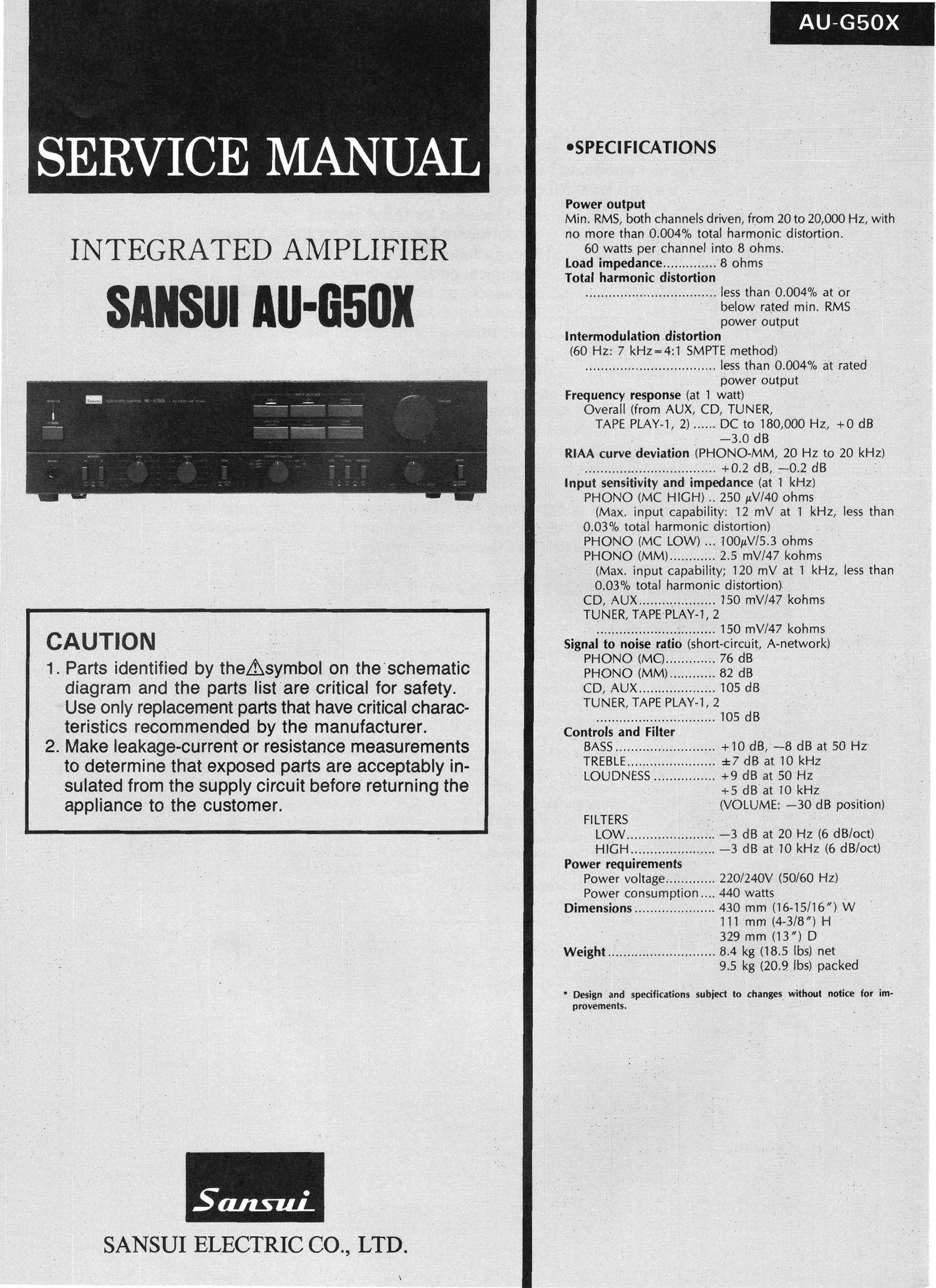

Page 1

. AU-GSOX

. SERVICE MANUAL 'SPECIFICATIQNS

Power output
Min. RMS, both channels driven from 20 to 20,000 Hz, with

' h .00 °. I h d
INTEGRATED AMPLIFIER . ° 23°Ciait32e? chiénéiimaéfiiiii mm
Load impedance .............. 8 ohms
Total harmonic distortion

. . ' ................... . ..... less than 0 004% at or
' I ' belOw rated min. RMS
.. . - . power output _

, lntermodulation distortion

(60 Hz: 7 kHz--- 4:1 SMPTE method) »»

.................................. less than 0.004% at rated
power output

Frequency response (at 1 watt)

Overall (from AUX, CD, TUNER,
TAPE PLAY-1, 2) DC to 180, 000 HZ, +0 dB
, - -3. 0 dB

RIAA curve deviation (PHONO- MM, 20 Hz to 20 kHz)
.......................... +0. 2 dB, -02 dB

Input sensitivity and impedance (at 1 kHz)

PHONO (MC HIGH) 250 uV/4O ohms
(Max. input capability: 12 mV at 1 kHz, less than

0.03% total harmonic distortion) - . .

PHONO (MC LOW) .100uV/5 3 ohms -

PHONO (MM) .......... 2. S mV/47 kohms -
(Max. input capability; 120 mV at 1 kHz, less than " '
01.03% total harmonic distOrtion) '

CD, AUX ............ 150 mV/47 kohms

TUNER, TAPE PLAY-1,2
..................... 150 mV/47 kohms

CAUTION Signal to noise ratio (short- circuit, A- network) ' A
PHONO M ............. 76 dB ~
1. Parts identified by theAsymbol on the schematic pHONOleAl) ............ 8.2 dB
diagram and the parts list are critical for safety. CD. AUX 105 dB
Use only replacementparts that have critical charac- , TUNER/ TAPE PLAY, 2105 dB
terIstIcs recommended by the manufacturer. Canvas and he,
2. Make leakage-current or resIstance measurements BASS .......................... +10 dB, -8 dB at 50 Hz
TREBLE ...... . ................. :t 7 dB at 10 kHz

todetermlne that exposed Pains are acceptib'y m" , LOUDNESS ... ............. +9 (18 at 50 Hz . '
suiated from the supply CIrCUIt before returnIng the , +5 dB at 10 kHz
appliance to the customer. - 1 ~ (VOLUME -30 dB position)

FILTERS . ;-.
LOW~3 dB at 20 Hz (6 dB/oct)
HIGH .................. -3 dB at 10 kHz (6 dB/oct)

Power requirements
Power voltage... .......... 220/24OV (50/60 Hz)
Power consumption... 440 watts
Dimensions... ................... 430 mm (16-15/16), W

ill-mm (4-3/8) H
- ' . 329 mm (13) D -
Weight 8.4 kg (18.5 lbs) net
9 5 kg (20. 9_ lbs) packed

* Design 'and specifications subject to changes. without notice for imé'
provements.

SANSUI ELECTRIC CO., LTD.

\

Page 2

AU-GSOX

CAUTION

1. The symbols, UL, CSA, SA, BS, UK, EU, AS and XX (EXPORT) on
the parts list and the schematic diagram mean followings respectively.

UL ....................... Manufactured for USA market.
(Underwriters Laboratories approved model.)

CSA .................. Manufactured for Canadian market.

SA ....................... Manufactured for South African market.

BS, UK ............... Manufactured for United Kingdom market.

EU .................. Manufactured for European market.

AS ....................... Manufactured for Australian market.

XX (EXPORT) ..... Standard Version.
NON MARK ........ Common Parts.

2. Some printed circuit boards are not supplied as the assembled.
To separate these in this service manual, the stock Nos are not in-
dicated at the ends of the board names. However, the individual parts
on the circuit boards are provided by orders.

3. Since some of capacitors and resistors are omitted from parts lists
in this service manual, refer to the Common Parts List for capacitors
& resistors, which was issued on February 1983.

4. Abbreviations in this service manual are as follows.

- OAbbreviations List

C.R. : Carbon Resistor E.B.L. : Low Leak Bi-Polar
S.R. : Solid Resistor Electrolytic Capacitor
Ce.R. : Cement Resistor Ta.C. : Tantalum Capacitor
M.R. : Metal Film Resistor F.C. : Film Capacitor
F.R. : Fusing Resistor M.P. : Metalized Paper Capacitor
N.l.R. : Non-lnflammable Resistor P.C. : Polystyrene Capacitor
A.R. : Array Resistor G.C. : Gimmic Capacitor
C.C. : Ceramic Capacitor A.C. : Array Capacitor
C.T. : Ceramic Capacitor, V.R. : Variable Resistor
Temperature Compensation S.V.R. : Semi Variable Resistor
E.C. : Electrolytic Capacitor SW. : Switch
E.L. : Low Leak Electrolytic Chip R. : Chip Resistor
Capacitor Chip C. : Chip Capacitor
E.B. : Bi-Polar Electrolytic
Capacitor
