Sansui AUG 11 X Service Manual

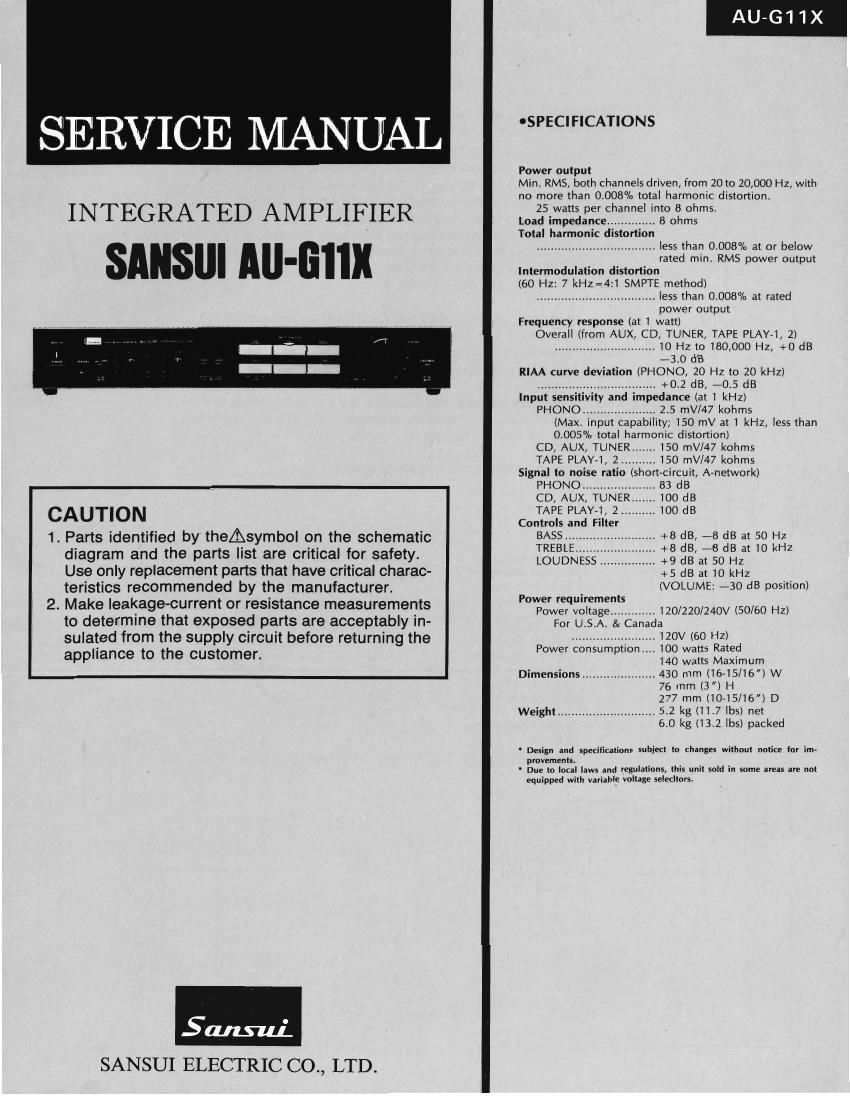

Page 1

SERVICE MANUAL

INTEGRATED AMPLIFIER

CAUTION

1. Parts identified by theAsymbol on the schematic
diagram and the parts list are critical for safety.
Use only replacement parts that have critical charac-
teristics recommended by the manufacturer.

2. Make leakage-current or resistance measurements
to determine that exposed parts are acceptably in-
sulated from the supply circuit before returning the
appliance to the customer.

Sans-u}.
SANSUI ELECTRIC CO., LTD.

11X

OSPECIFICATIONS

Power output
Min. RMS, both channels driven, from 20 to 20,000 Hz, with
no more than 0.008% total harmonic distortion.
25 watts per channel into 8 ohms.
Load impedance .............. 8 ohms
distortion
............... less than 0.008% at or below
rated min. RMS power output
lntermodulation distortion
(60 HZ: 7 kHz=4:l SMPTE method)
.................................. less than 0.008% at rated
power output
Frequency response (at l watt)
Overall (from AUX, CD, TUNER, TAPE PLAYJ, 2)
............................. 10 Hz to 180,000 Hz, +0 dB
730 dB
RIAA curve deviation (PHONO, 20 Hz to 20 kHz)
............... +02 dB, -0.5 dB
Input sens vtty and impedance (at 1 kHz)
PHONO ..................... 2.5 mV/47 kohms
(Max. input capability; 150 mV at 1 kHz, less than
0.005% total harmonic distortion)
CD, AUX, TUNER ....... 150 mV/47 kohms
TAPE PLAY-1, 2 ..... .. 150 mV/47 kohms
Signal to noise ratio (5 art-circuit, A-network)
PHONO ................ .. 83 dB

CD, AUX, TUNER .. 100 dB
TAPE PLAY-l, 2 .......... 100 dB
Controls and Filter
BASS. .. +8 dB, -8 dB at 50 HZ

.. .. +8 dB,78 dB ath kHz
LOUDNES .. +9 dB at 50 Hz

+5 dB at 10 kHz
(VOLUME: 730 dB position)

Power requirements

Power voltage ............. 120/220/240V (50/60 HZ)
For U.S.A. & Canada
........................ IZOV (60 HZ)

Power consumption... 100 watts Rated
140 watts Maximum
Dimensions ..................... 430 mm 0645/16") W
76 mm (3 l H
277 mm (10-15/16") D
.. 5.2 kg (11.7 lbs) net
6.0 kg (13.2 lbs) packed

Weight . ...

- Design and specifications subject to changes without notice rot im-
pruvementst

. Due to local laws and regulations, this unit sold in some areas are not
equipped with variable voltage selecltors.

Page 2

G11X

CAUTION

. The symbols, UL, CSA, SA, BS, UK, EU, AS and XX (EXPORT) on

the parts list and the schematic diagram mean followings respectively.

UL ....................... Manufactured for U.S.A market.
(Underwriters Laboratories approved model.)

CSA.. Manufactured for Canadian market.

SA ..... .. Manufactured for South African market.
BS, UK .. Manufactured for United Kingdom market.
EU .. Manufactured for European market.

AS .......... Manufactured for Australian market.

XX (EXPORT) ..... Standard Version.
NON MARK ........ Common Parts.

. Some printed circuit boards are not supplied as the assembled.

To separate these in this service manual, the stock Nos are not in-
dicated at the ends of the board names. However, the individual parts
on the circuit boards are provided by orders.

. Since some of capacitors and resistors are omitted from parts lists

in this service manual, refer to the Common Parts List for capacitors
& resistors, which was issued on February 1983.

. Abbreviations in this service manual are as follows.

~Abbreviations List

C.R. : Carbon Resistor E.B.L. : Low Leak Bi-Polar

S.R. : Solid Resistor Electrolytic Capacitor

Ce.R. : Cement Resistor Ta.C. :Tantalum Capacitor

M.R. : Metal Film Resistor F.C. : Film Capacitor

F.R. : Fusing Resistor M.P. : Metalized Paper Capacitor

N.I.R. : Non-Inflammable Resistor F.C. : Polystyrene Capacitor

A.R. : Array Resistor G.C. : Gimmic Capacitor

C.C. : Ceramic Capacitor A.C. : Array Capacitor

C.T. : Ceramic Capacitor, V.R. : Variable Resistor
Temperature Compensation S.V.R. : Semi Variable Resistor

E.C. : Electrolytic Capacitor SW. : Switch

E.L. : Low Leak Electrolytic Chip R. : Chip Resistor
Capacitor Chip C. : Chip Capacitor

EB. : Bi-Polar Electrolytic
Capacitor
