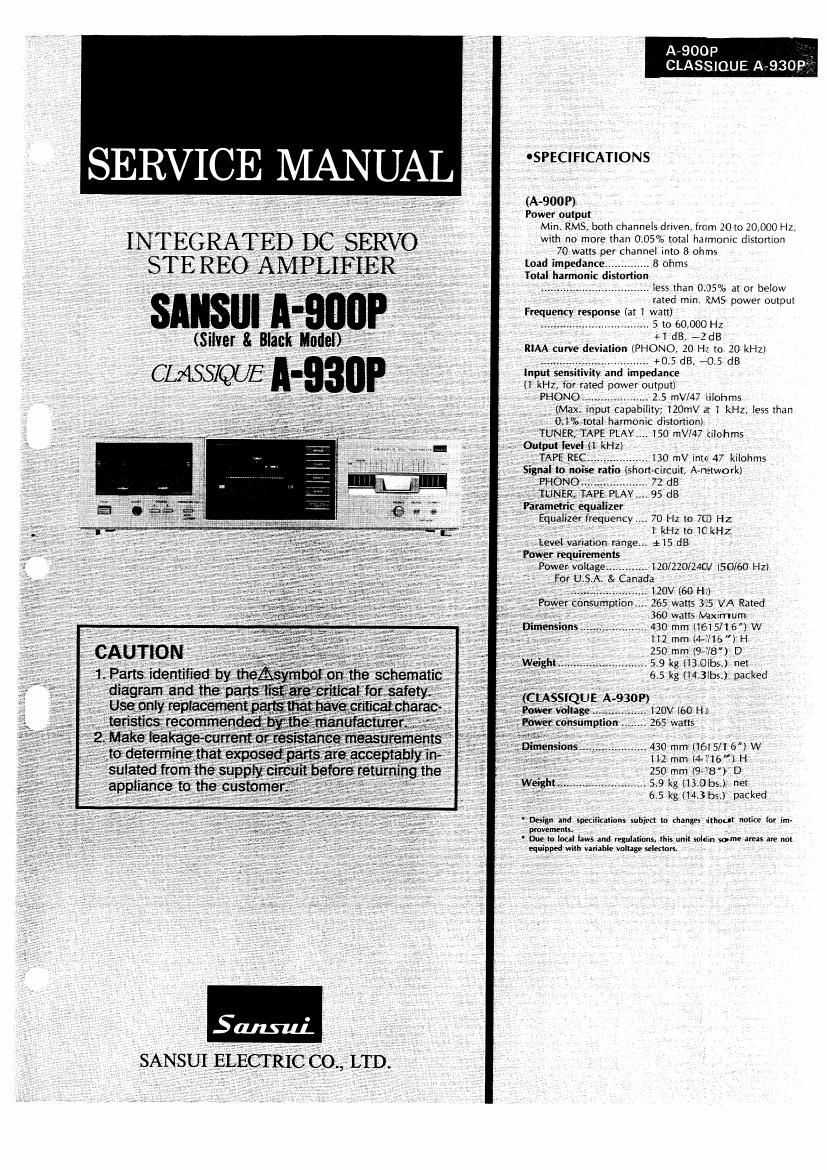

Sansui A 900P Service Manual

Page 2

A-900P
CLASSIQUE A-930P

CSA ..

CAUTION

1. The symbols, UL, CSA, SA, BS, UK, EU, AS, XX and
XX-V < EXPORT(V)> on the parts list and the schematic diagram
mean followings respectively.
UL ............................... Manufactured for USA market.

(Underwriters Laboratories approved model.)

Manufactured for Canadian market.
Manufactured for South African market.
Manufactured for United Kingdom market.
Manufactured for European market.

.. Manufactured for Australian market.

AS ....................

XX ..Standard Version with inner Voltage
Selector.

XX-V ....Standard Version with Outer Voltage
Selector.

NON MARK ................ Common Parts.

2. Some printed circuit boards are not supplied as the assembled.
To separate these in this service manual, the stock Nos are not in-
dicated at the ends of the board names. However, the individual parts
on the circuit boards are provided by orders.

3. Since some of capacitors and resistors are omitted from parts lists
in this service manual, refer to the Common Parts List for capacitors
& resistors, which was issued on February 1983.

4. Abbreviations in this service manual are as follows.

W 'Abbreviations List
: Carbon Resistor

: Solid Resistor

: Cement Resistor

: Metal Film Resistor

: Fusing Resistor

: Non-lnflammabie Resistor
: Array Resistor

: Ceramic Capacitor

: Ceramic Capacitor,

C.R.
S.R.
Ce.R.
MR.
FR.
Nt|.R.
AR.
CC.
C.T.

E.C.
E.L.

E.B.

Temperature Compensation

: Electrolytic Capacitor
: Low Leak Electrolytic

Capacitor

: Bi-Polar Electrolytic

Capacitor

E.B.L.

Ta.C.
F.C.
MP.

ac.
A,C.
V,R.
eve.
sw.
Chip a:
Chip c.:

: Low Leak BiAPolar

Electrolytic Capacitor

: Tantalum Capacitor

: Film Capacitor

: Metalized Paper Capacitor
: Polystyrene Capacitor

: Gimmic Capacitor

: Array Capacitor

: Variable Resistor

: Semi Variable Resistor

: Switch

Chip Resistor
Chip Capacitor
