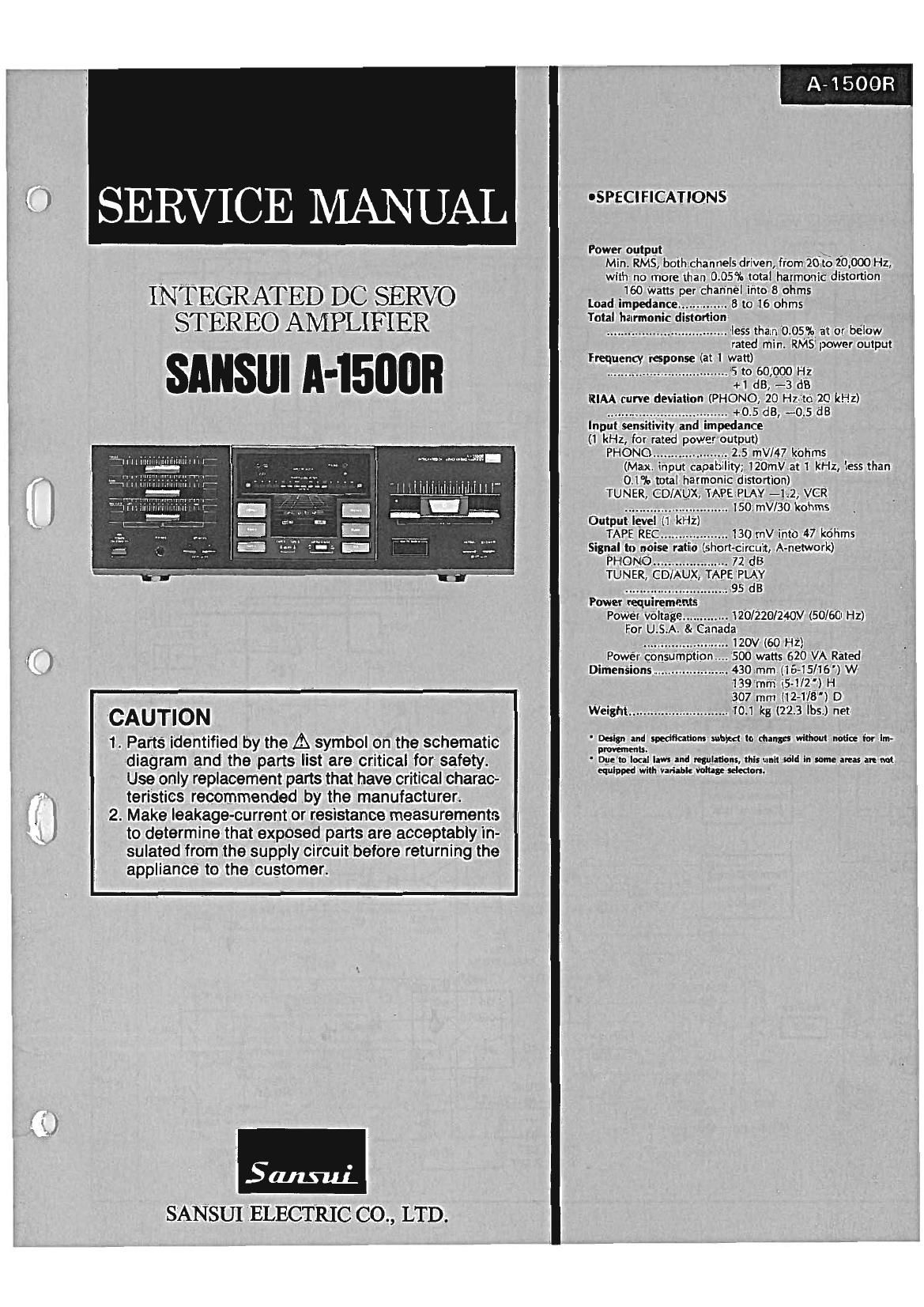

Sansui A 1500 R Service Manual

Page 1

Er

SERVICE MANUAL

INTEGRATEDIKXEEWU
STEREO AMPLIFIER

SAIISIII II-IEIIIIII

CAUTION

i 1. Parts identified by the A symbol on the schematic
diagram and the parts list are critical for safety.
Use only replacement parts that have critical charac-
teristics recommended by the manufacturer.

2. Make leakage-current or resistance measurements
to determine that exposed parts are acceptably 'm-
sulated from the sUpply circuit befOre returning the
appliance to the customer.

SANSUI ELECTRIC CO., LTD.

A-1506R

SPECIFICATIONS

Power output _ y 7
Min. RMS, bothchannels driven, from 2010 20,000 Hz;
with no more than 0.05% total harmonic distortion
160 Watts per Channel into 8 ohms
Load impedance .............. 8 to 16 ohms
Iotall harmonic distortion
leis than 0.05%; at or below
rated min. IRMS power output
Frequency response (at 1 watt)
.................................. 5 3to 60,000 Hz
+1 d8, -3 dB
RIAA curve deviation (PHONO, 20 stzo 20 kHz)
.................................. +0.5 d8, «0.5 08
Input sensitivity and impedance
(1 kHz, for rated poweroutputi
PHONO ..................... 2.5 mV/éi? kohms
(Max. input capability; 120me 1 kHz, less than
0 1%. total harmonic distortion)
TUNER, ice/xux. TAPE PLAY -t}2, VCR;
............ 150, mV/30. kohms
Output level (1 kHz)
TAPE REC 130 mVihtO 47' kdhms
Signal to noise ratio (gshortxircuit, A-necwork)

P'Horio' ..................... 72 dB
TUNER, CID/AUX, TAPE PLAY,
............................. 95 dB

Power requirements
PdWérovéIt'a'ge ............. 1240/220/2405/ (50/60 HZ)
{For U.S.A. 8: Canada
.. ..... 120V (60 Hz)

_ . _ , pti n.,..'500 watts 620 VA Rated

Dinnens'iions ..................... 430mm (1645/1617) W
139 1mm: (5-1/2") H
307 mm (.12-1'13") D

Weight ............................ 10.1. 'Kg- (22.3 lbs.) net

' Design and waifiations'suhkd to changes without notice for Im-
movements.

Dyeto local laws and resujatiqns, this unit sold in some areas are not
equipped with variabie voltagetselecton.

Page 2

A~1500R

CAUTION

1. The symbols, UL, CSA, SA, BS, UK, EU, AS. XX and
XX-V < EXPORT(V)> on the parts list and the schematic diagram
mean followings respectively.

UL ....................... Manufactured for U.S.A market.
(Underwriters Laboratories approved model.)

CSA .................... Manufactured for Canadian market.

SA ....................... Manufactured for South African market.

BS, UK ............... Manufactured for United Kingdom market.

EU ...................... Manufactured for European market.

AS ....................... Manufactured for Australian market.

XX Standard Version with Inner Voltage Selector.

XX-V

Standard Version with Outer Voltage Selector.

NON MARK ........ Common Parts.

2. Some printed circuit boards are not suppliedassembled.
To separate these in this service manual, the stock numbers are not
indicated for these boards. However, stock numbers for individual
parts are indicated.

3. Since some capacitors and resistors are omitted from parts lists in
this service manual, refer to the Common Parts List for capacitors
& resistors, which was issued on February 1983.

4. Abbreviations in this service manual are as follows.

CR.
SH.
W.Fl.
MR.
F.Fl.
N.I.R.
FLA.
C.C.
C.T.

E.C.
E.L.

- -Abbreviations List

:Carbon Resistor

: Solid Resistor

: Wire Wound Resistor

: Metal Film Resistor

: Fusing Resistor

: Non-Inflammable Resistor
: Resistor Array

: Ceramic Capacitor

: Ceramic Capacitor,

Temperature Compensation

: Electrolytic Capacitor
: Low Leakage Electrolytic

Capacitor

E.B.

E.B.L.

Ta.C.
F.C.
M.P.
F.C.
C.A.
V.R.
SW

: Bi-Polar Electrolytic

Capacitor

: Low Leakage Bi-Polar

Electrolytic Capacitor

: Tantalum Capacitor

: Film Capacitor

: Metallized Paper Capacitor
: Polystyrene Capacitor

: Capacitor Array

: Variable Resistor

: Switch

Chip R. : Chip Resistor
Chip C. : Chip Capacitor
