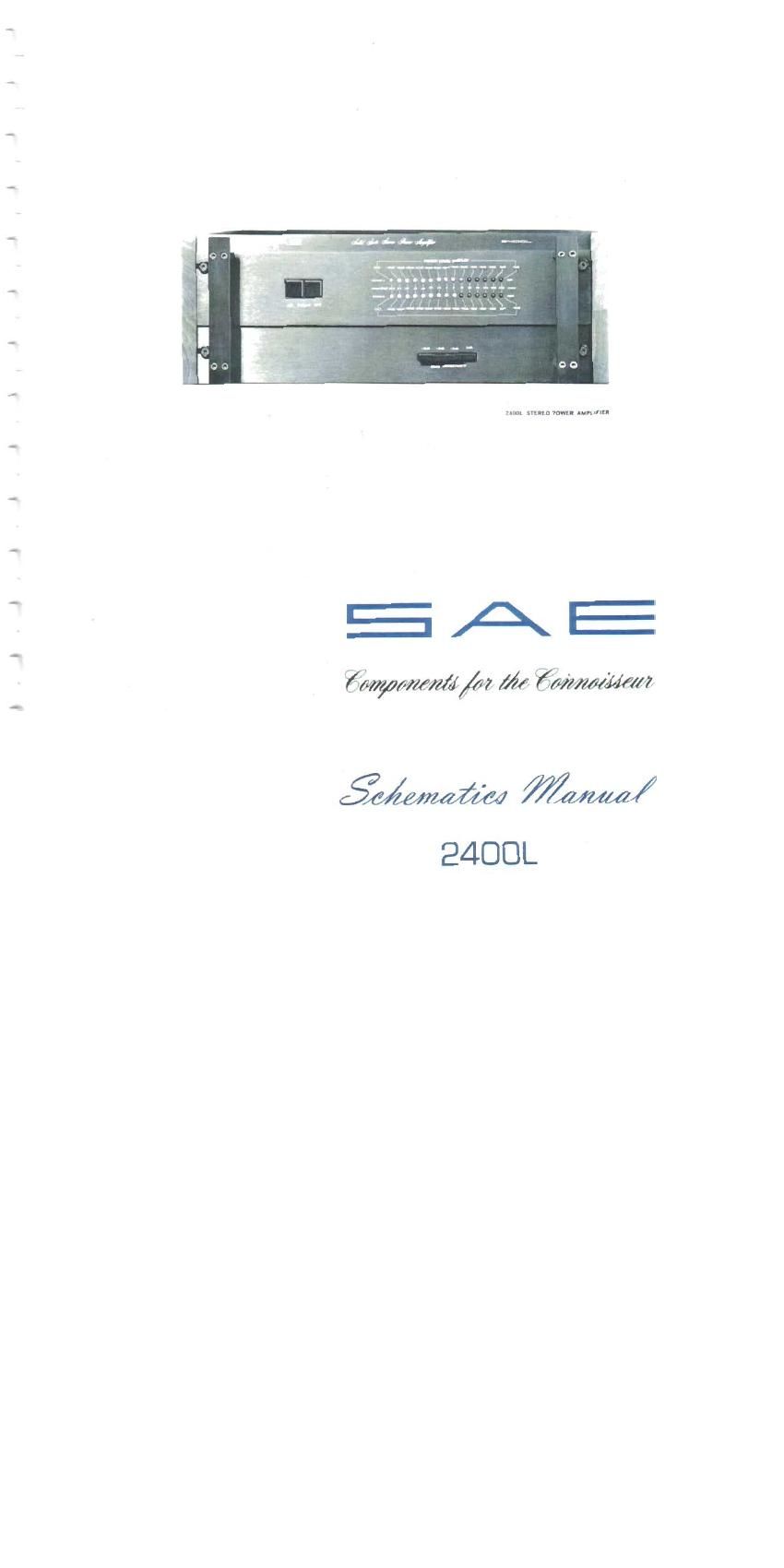

SAE 2400L pwr sm

Page 2

I

Fl

-I-li-I

SPECIFICATIONS

RMS (Min) Continuous Power Output 200 watts @ 0.05% Total
Per Channel 20 Hz to ZOKHz (both Harmonic Distortion
channels driven) into 4 or 8 Ohms

THD (Total Harmonic Distortion) from 20Hz to 20KHZ ...... ._....0.05°/o Max.
at 250mW to rated power into 4 or 8 Ohms

[M (lntermodulation Distortion) from 250mW to rated

power at 4 or 8 Ohms with any 2 mixed trequuencies between

ZOHZ and ZOKHZ at 4 1 voltage ratio 005% Max.
Frequency Response at rated power .. «025 dB, 20Hz to ZOKHZ
Noise _... w,.u...Greater than 100dB below rated p0wer

Transient Response of any Square Wave ..... 2.5 microseconds rise and fall time

Slew Rate ,. 40 Volts per microsecond

Stability Unconditionaliy stable with any type of load or no
load includingfullrange electrostatic loudspeakers

150 Min (IOOHz)
1.5V RMS for rated output at 8 Ohms
Input impedance 50K Ohms

Damping Factor

input Sensitivity

Overload Protection ---------------------------------- 1. Low impedance electroniosensing circuit limits with
output current below 2 Ohms without limiting with 4 Ohms
or higher (or reactive loads).

2. Thermal sensing of inadequate ventilation

Loudspeaker Protection ......................... Relay circuit protects loudspeakers from low frequency
oscillations and plus or minus DC output. Five second
turn on/oft delay eliminates onfoff disturbances.

Power Requirements .... llOlZOV, 50Hz 60Hz 100 Watts (92;
idling to 1100 Watts @ rated output

Shipping Weight ,,,,,,, .....~47 pounds (21.3 Kg)

Dimensions ~ Front Panel: 19 in. (48.3cm) W X 7 in. (17.8cm) H
Chassis: 11.50 in. (29.2cm) D (excluding handles.

controls. and connections)

Cabinet . .. C2 (not inciuded)""

Assembly required
