Page 1
The RSP-1582 has been two years in the making and
is a wholly new platform. Rotel engineers evaluated
painstakingly every circuit design and feature
requirement. It is built with a modular construction to
facilitate upgrades of key internal circuit boards, and is
software updateable over the Internet or via a simple
USB download if a network connection is not available.
The RSP-1582 is a home theatre preamplifier/processor,
of course, but first and foremost, it truly shines as
an audio component. For example, six Wolfson
24bit/192kHz devices are arrayed as four independent
DACs for Front Left, Front Right, Center and Subwoofer
channels with shared stereo DACs for the rear
channels. This topology offers exemplary performance
all around, but provides the absolute best quality on
the most critical channels. In theater mode, a Texas Instruments Aureus DSP high-performance decoder
is utilized with 10-channel Parametric Equalization. A
high performance Texas Instruments Analog-to-Digital
convertor is used to facilitate optimum conversion of
analog signals for playback in surround sound modes.
Balanced XLR and single ended connections are
offered, and the audio stages use premium components
in all signal critical applications. For pure stereo
playback of analog sources, the RSP-1582 features an
analog bypass to obtain the cleanest path.
For video use, the preamp/processor incorporates eight
HDMI 4K video inputs (no scaling) with two HDMI 4K
video outputs. The RSP-1582 also employs a Silicon
Image 2K/4K HDMI transceiver. Its modular HDMI
circuit construction means future upgrades can be
accommodated easily.
Page 2

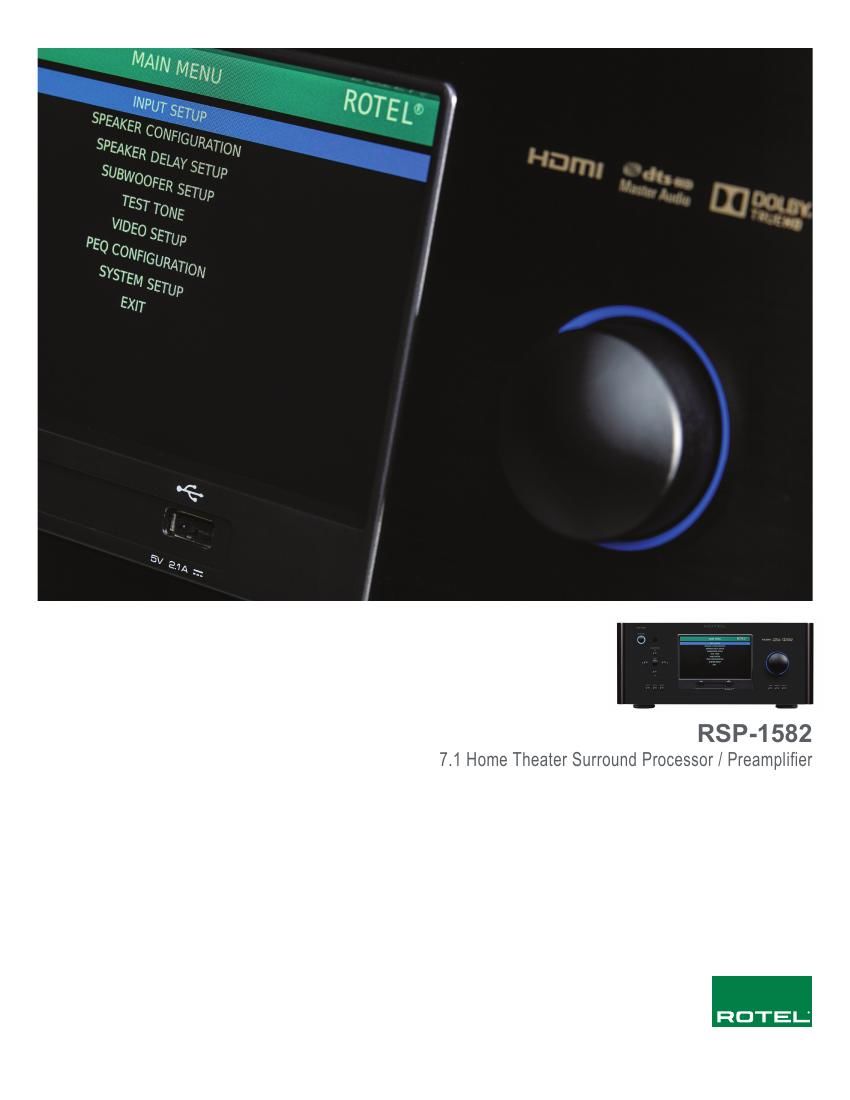

RSP-1582
7.1 Home Theater Surround Processor / Preamplifier
Other features include one front panel HDMI input
with 4K video pass-through, built-in aptX Bluetooth
technology, a PC-USB input that supports 24 bit
/192kHz audio, CD, Tuner and 4 AUX analogue inputs,
along with a multichannel input and XLR input. It even
has a phono stage!
There is a seven-inch TFT display on the front panel
to provide easy adjustments to all audio and video
parameters without the need to turn on an external
display or video projection system -“ perfect for when
the equipment rack is remote located. And the RSP-
1582 comes with rack ears in the box to make such
installations easy.
In addition to its unassailable audio and video
performance, custom installers will find the RSP- 1582 ideal for any installation application with an
RJ45 network connection, Internet or USB front panel
software updates, three source independent trigger
outputs, a wired IR remote input, RS232 and IP
interface for automation system control, 2 x IR output
connectors for IR pass-through and front panel setup
navigation control.
All of these features and technology mean nothing,
though, if the end result doesnt meet your performance
expectations. Thats why Rotel engineers spend
countless hours measuring, listening and refining
the circuitry. The end result is a surround processor/
preamplifier that is worthy of the finest music systems
and theaters at an unrivalled price.
If you are passionate
about home theater and
are looking to create the
highest quality audio/video
system possible, you need
to begin with a reference
level preamp/processor.
