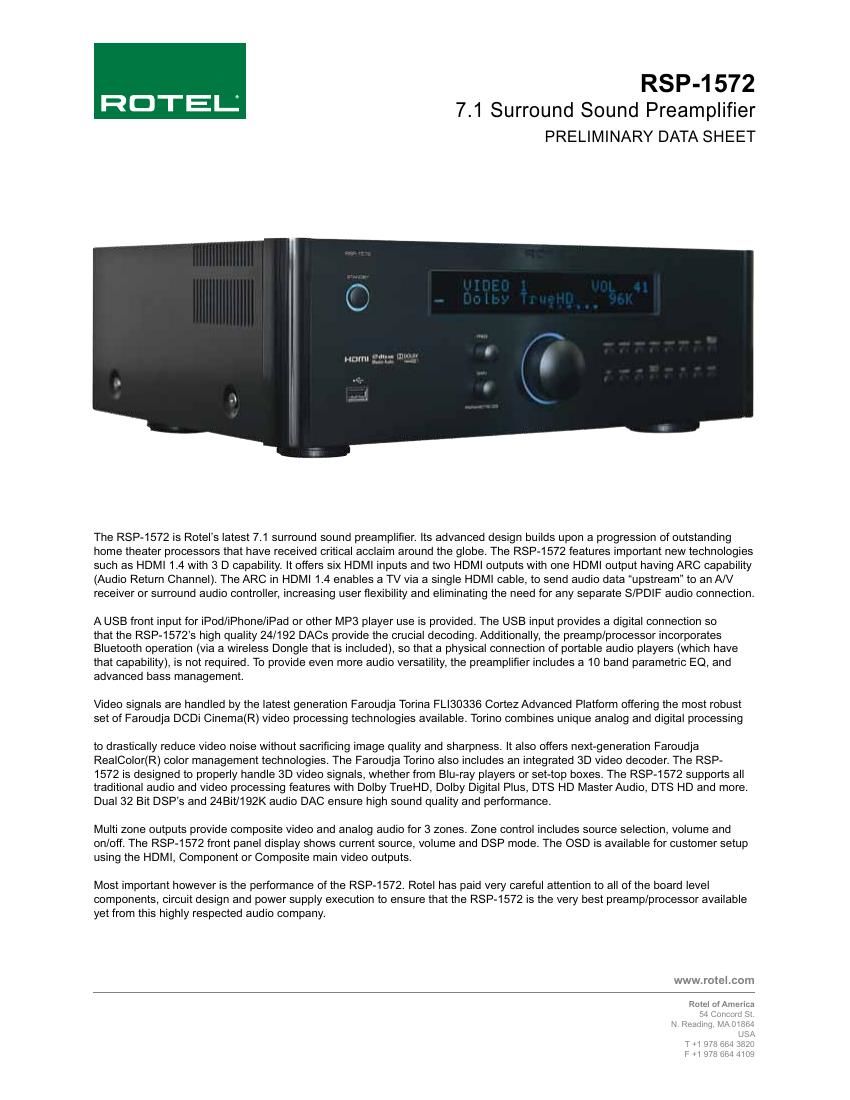

RSP-1572
7.1 Surround Sound Preamplifier
PRELIMINARY DATA SHEET
Input Voltage/Power
120VAC and 230VAC Operation
47 Watts Operating Power
0.4 Watt Standby Power
Agency Compliance
ROHS
IECEE (CB)
ETL/CETL
CE
Operating Temperature
0°C to +60°C
Operating Humidity
90% RH at 60°C
Video Inputs
HDMI (6)
Component (2)
Composite (2)
Audio Inputs
Optical (4)
Coax (3)
Tuner (1)
CD (1)
Analog Stereo (6)
Multi Input 7.1 (1)
USB (1) Video Outputs
HDMI (2)
Component (1)
Composite Main (1)
Composite Zone (3)
Audio Outputs
Optical (1)
Coax (1)
Pre Out 7.1 (1)
Analog Stereo Main (1)
Analog Stereo Zone (3)
Accessory Controls
Computer RS232 Control
RR-CX94 IR Remote
Learning IR Control System
12V Trigger Out (6)
Rear IR Zone Pass through (2)
Rear IR Zone In (4)
Rear Addressable IR Out (4)
Video Features
Faroudja Video Scalar
ARC and CEC Enabled
3-D Pass-Through Compatible
Analog to HDMI 1080p Scalar
Specifications
Audio Features
Dual DSP Supports Dolby HD & DTS
7.1 +XS, +PLIIx, +PLIIz
DTS HD Master
DTS HD Express
Dolby True HD
Dolby Digital Plus
Adjustable Crossover
Speaker Group Delay
Speaker Distance Setting
10 Band Parametric EQ
Color Selection
Black and Silver
Weight
Product Only 9.7 KG
Shipping 12.8 KG
Product Dimensions
Height 143 mm
Length 338 mm
Width 431 mm
Front Panel Height 3U
Shipping Dimensions
Height 270 mm
Length 440 mm
