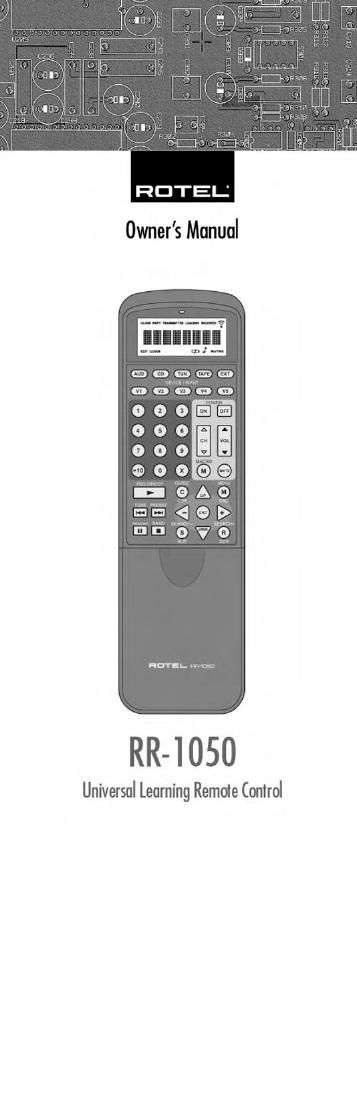

Owners Manual
RR-1050
Universal Learning Remde Control
.-
5. To enter a time delay following a command, hold the
button for the desired length at the time delay.
6. When the entire macro sequence has been entered,
press the LEARN button to complete the process. A
confirmation MAROK" appears in the display.
The last device selected in the macro sequence remains the
device the RR»T050 is set to operate. If you want a differ»
ent device to be active after using the macro command,
select that device as the last step in the macro.
Clearing Stored Commands n
The CLEAR button erases learned commands from a single
button, all of the commands under a particular DEVICE
button, or a MACRO sequence.
1. Press the recessed CLEAR button with the point of a
ball point pen. A "CLEAR? promptappears.
2. Press a COMMAND button to cleara single command.
Press a DEVICE/ INPUT button for less than one sec-
ond to clear the device selection code. Press and hold
a DEVICE/INPUT button to clear the input source se-
lection code. Press the MACRO button and then the
button where the macro is stored to erase a MACRO
sequence. A confirmation OK! appears in the dis-
play.
NOTE: When a learned command is cleared from a
DEVIC E/ INPUT button the factory original command code
is restored.
The RR-lOSO automatically leaves the CLEAR mode it no
button is pressed for 15 seconds. Manually exit by press-
ing the CLEAR button again.
Preload Function m
Press the recessed PRELOAD button with a ballpoint pen to
restore the RR-lOSO to its original factory programming.
LOADlNG appears in the display while the codes are
being restored, followed by a confirmation OK!" when
the process is complete.
NOTE: Pressing PRELOAD erases all learned commands
for the AUD and VI buttons. The factory programmed
codes for Rote/ receivers and surround sound processors
and Rotel DVD players are restored. Be sure this is
what you want to do! The learned commands {or the
other buttons are not erased.
Clone Function [II
The CLONE Function transfers all programming, including
learned commands and custom labels, from one RR-TOSO
to a second RR-TOSO. To transfer the programming, place
two RR-TOSO remote controls with their IR windows facing
each other, then proceed as follows.
