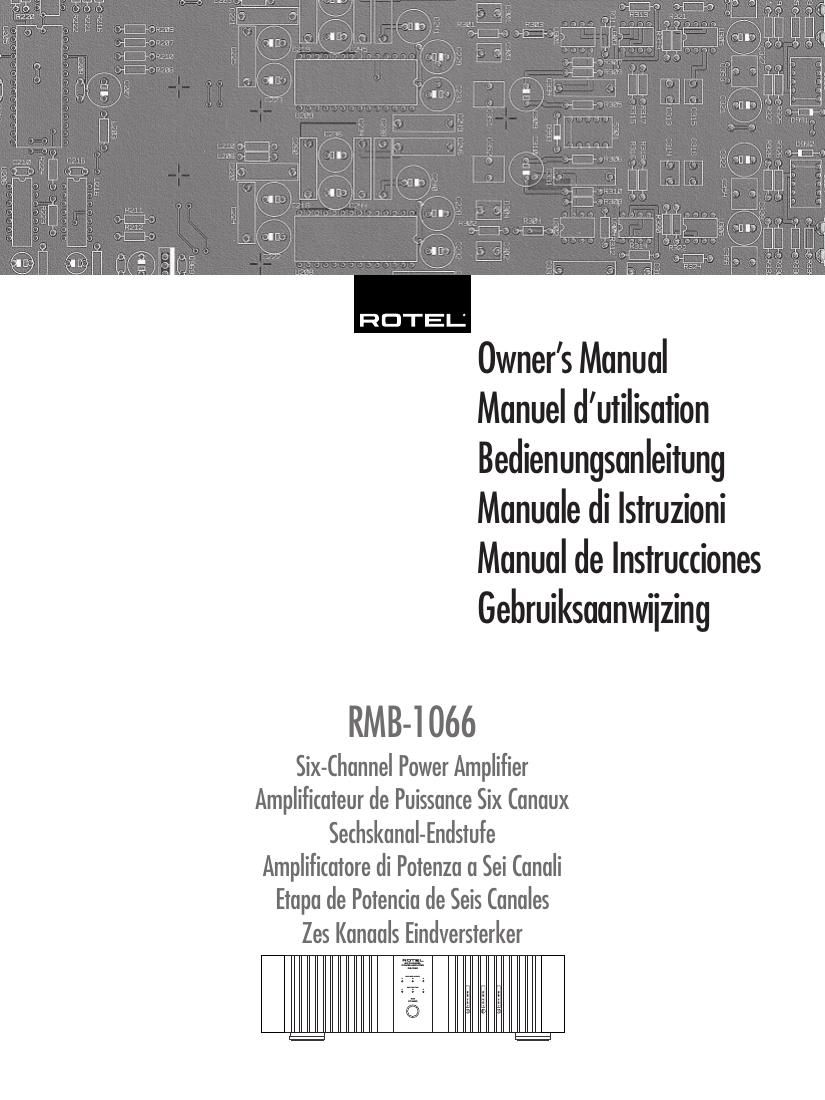

Rotel RMB 1066 OM

Page 1

2 WARNING: There are no user serviceable parts inside. Re- fer all servicing to qualified service personnel. WARNING: To reduce the risk of fire or electric shock, do not expose the unit to moisture or water. Do not allow for- eign objects to get into the enclosure. If the unit is exposed to moisture, or a foreign object gets into the enclosure, im- mediately disconnect the power cord from the wall. Take the unit to a qualified service person for inspection and nec- essary repairs. Read all the instructions before connecting or operating the component. Keep this manual so you can refer to these safety instructions. Heed all warnings and safety information in these instructions and on the product itself. Fol- low all operating instructions. Clean the enclosure only with a dry cloth or a vacuum cleaner. You must allow 10 cm or 4 inches of unobstructed clearance around the unit. Do not place the unit on a bed, sofa, rug, or similar surface that could block the ventilation slots. If the compo- nent is placed in a bookcase or cabinet, there must be ventilation of the cabinet to allow proper cooling. Keep the component away from radiators, heat registers, stoves, or any other appliance that produces heat. The unit must be connected to a power supply only of the type and voltage specified on the rear panel of the unit. Connect the component to the power outlet only with the supplied power supply cable or an exact equivalent. Do not modify the supplied cable in any way. Do not attempt to defeat grounding and/or polarization provisions. Do not use extension cords. Do not route the power cord where it will be crushed, pinched, bent at severe angles, exposed to heat, or damaged in any way. Pay particular attention to the power cord at the plug and where it exits the back of the unit. The power cord should be unplugged from the wall outlet if the unit is to be left unused for a long period of time. Immediately stop using the component and have it inspected and/or serviced by a qualified service agency if: ¥ The power supply cord or plug has been damaged. ¥ Objects have fallen or liquid has been spilled into the unit. ¥ The unit has been exposed to rain. ¥ The unit shows signs of improper operation ¥ The unit has been dropped or damaged in any way Place the unit on a fixed, level surface strong enough to support its weight. Do not place it on a moveable cart that could tip over. CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT. INSERT FULLY. APPLICABLE FOR USA, CANADA OR WHERE APPROVED FOR THE USAGE ATTENTION: POUR EVITER LES CHOCS ELECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU AU FOND. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. RMB-1066 Six Channel Power Amplifier

Page 2

3 Figure 1: Controls and Connections Commandes et branchements Bedienelemente und AnschlŸsse Controlli e collegamenti Controles y Conexiones Bedieningsorganen en aansluitingen SIX CHANNEL POWER AMPLIFIER RB-1066 CH - B LEVEL CH - C LEVEL CH - A LEVEL POWER APROTECTION BRIDGED MONO C B ACB 1 2 3 4 5 SPEAKER IMPEDANCE SIX CHANNEL AMPLIFIER MODEL NO. RMB-1066 POWER CONSUMPTION: 700W SERIAL NO. STEREO 4 OHMS MINIMUM BRIDGED 8 OHMS MINIMUMSIGNAL OUTPUT LINK BRIDGED -“ + BRIDGED -“ + BRIDGED -“ + RP-388 ~ ++ -“ -“ RIGHTLEFT SPEAKERS ++ -“ -“ RIGHTLEFT SPEAKERS ++ -“ -“ RIGHTLEFT SPEAKERS WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRICAL SHOCK, DO NOT EXPOSE THIS EQIPMENT TO RAIN OR MOISTURE. OUTIN 12V TRIG. SIGNAL SENSE R L LINK OFF BRIDGED STEREO INPUTC R L LINK BRIDGED STEREO INPUTB RL BRIDGED STEREO INPUTA RL 12 11 8 10 8 8 6 7 9 9 9 English
