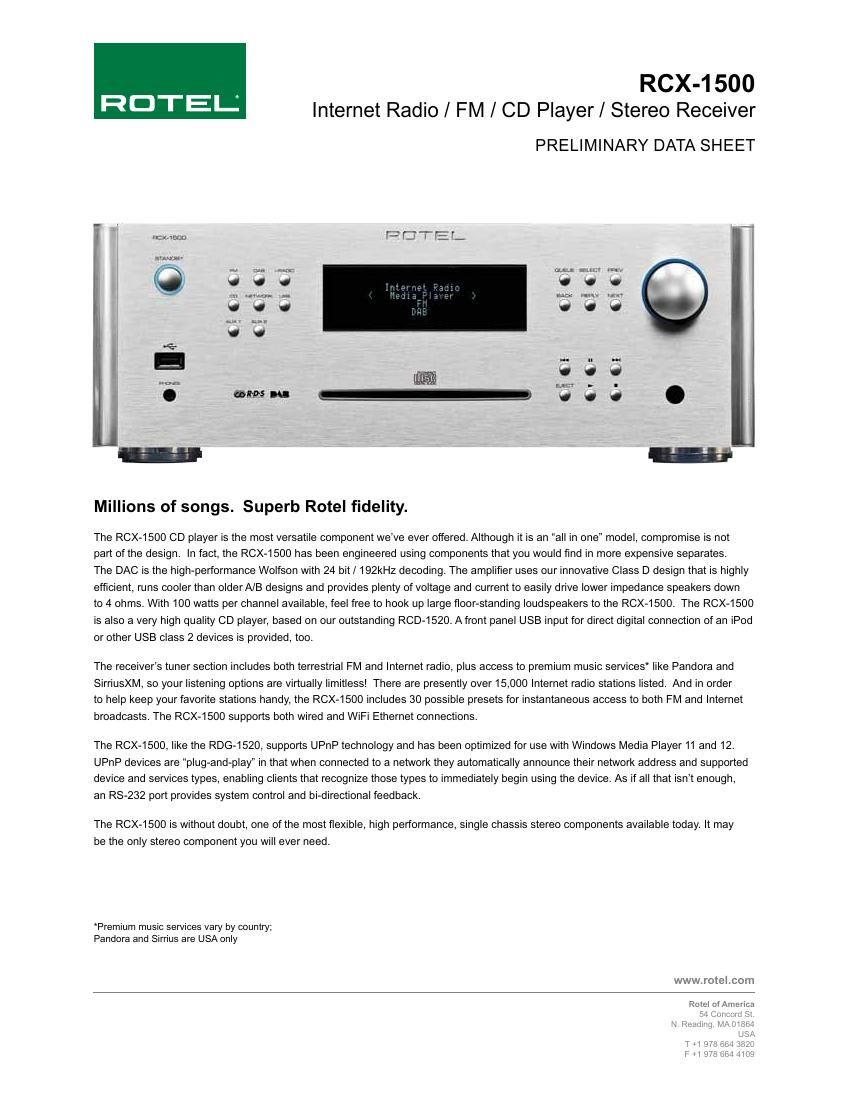

RCX-1500
Internet Radio / FM / CD Player / Stereo Receiver
Specifications
Audio
Continuous Amplifier Power 100 watts/channel
(20 - 20k Hz, < 0.05% THD, 8 ohms)
Total Harmonic Distortion < 0.05% at rated power
Intermodulation Distortion < 0.05% at rated power
(60 Hz:7 kHz)
Wi-Fi Standards 802.11g, 802.11b (2.4 GHz)
DAC Wolfson 24bit 192KHz
USB front input for digital connection of
iPod/iPhone (all iPod compatible codecs)
check list for compatible models, charges
iPod/iPhone while playing. Also supports USB
Class 2 drives (MP3 or WMA codecs only).
Auxiliary analog stereo Line Level Input
Auxiliary digital input either TOS or Co-ax
Analog stereo output 2 x RCA
RJ-45 connector for RS 232 Full bi-directional
communication, Crestron module available
WIred Ethernet or Wi-Fi (B & G),
Dongle adaptors included
CD slot-loading, plays CDs and CDs with MP3
VFL Display with 4 lines
Tuner FM 88.5-108MHz, DAB (Not USA) Internet Tuner, supports MP3, WMA, Org Vorbis,
AAC and AAC+ format determined by broadcast
station
30 Presets can be combined with FM, DAB,
Internet Radio and Premium Radio Services
Register at Rotelradio.com for more services
and free PC setup
Premium Radio Services are provided by
3rd parties via the Internet and may require
subscription; availability will vary by country.
U.S. Premium radio services currently include
SiriusXM, Pandora, AUPEO, Live365. More
to follow. See Radiorotel.com for details.
UPnP streaming from PC has been optimized for
Windows Media Player 11/12. WMP11 supports
WMA, WAV, MP3, AIFF codecs; WMP12 adds AAC
support. Other UPnP servers will be recognized
but have not been verified.
Additional features: Dimmer for VFL Display,
Preset Turn On Volume, Time Display, Wi-Fi
Strength Readout
Power AC
115 volts, 60 Hz (USA version)
230 volts, 50 Hz (European version)
Dimensions (W x H x D)
391 x 144 x 343 mm,
15 1/3 x 5 3/5 x 13 1/2 in
2 U chassis height
Weight 18 lbs.
