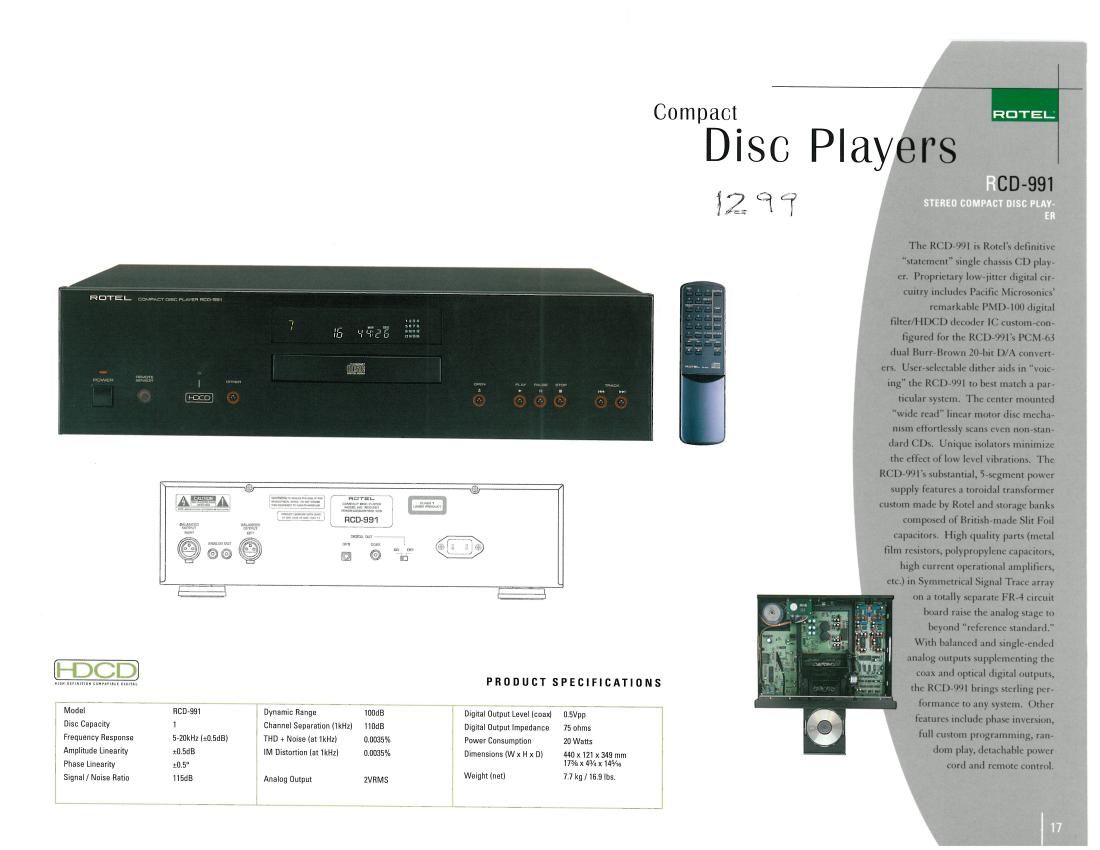

Compact
Disc Players
CD-991
The RCD-991 is Rotel's definitive
statement single chassis CD play:
er. Proprietary low-jitter digital cir-
cuitry includes Pacific Microsonics'
remarkable PMD-IOO digital
filter/HDCD decoder IC custom-con-
figured for the RCD-99I's PCM-63
dual Burr-Brown 20-bit D/A convert-
ers. User-selectable dither aids in voic-
ing" the ROD-991 to best match a par-
ticular system The center mounted
wide read" linear motor disc mecha-
nism effortlessly scans even non-stan-
dard CD5. Unique isolators minimize
the effect aflow level vibrations. The
KGB-991's substantial, 5-segment power
supply features a toroidal transformer
custom made by Rotel and storage banks
composed of British-made Slit Foil
capacitors. High quality parts (metal
film resistors, polypropylene capacitors.
high current operational amplifiers.
etc) in Symmetrical Signal Trace array
on a totally separate FR4 circuit
board raise the analog stage to
beyond reference standard 3'
With balanced and single-ended
analog outputs supplementing the
coax and optical digital outputs,
the Ran-991 brings sterling pep
formance to any system, Other
PRODUCT SPECIFICATIONS
Model RCDVBEI Dvnamm Range
IHDdB Digital Dutnut Level (max) 0 5va features include phase inversion,
l Disc Capacity 1 Channel Separation (mm nude Dlgllal uiiiput impedance 75 ohms -
_ full custom programming, ran-
Frequency Respunse 5-ZOkH1 1:0 Etta) THD i Nuise lat ikHz) ovonasu/i Power Cunsumptlun 20 Watts dom Ia detachable w
Amplitude Linearity :0 ads lM Disteniun (at lkHzl uvuoas% Dimensmns {W x H x D) 440 X m x 349 mm pd y, d Po I
phase new, :0 5° 17% x 4% x 14% cor an remote contra i
signal / Nuise Ratio Hana Analog Output ZVRMS we'gl ("9" 7'7 9 i 39 5
