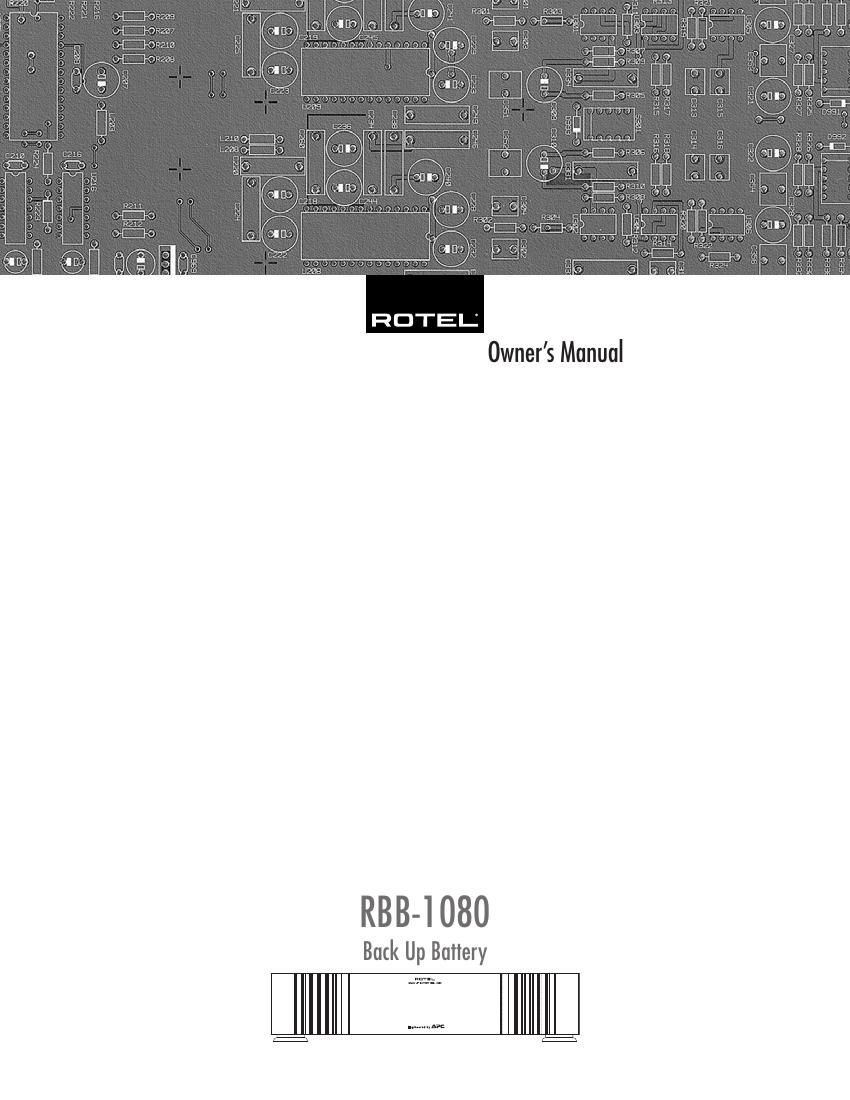

Rotel RBB 1080 OM

Page 1

2 Placement Caution: The RBB-1080 weighs approximately 55 pounds. Two-peo - ple should work together when the unit is being moved. Lift the RBB- 1080 carefully by firmly grasping both sides of unit in the middle. Failure to use caution and proper procedures when lift - ing or moving the unit may result in personal injury and/or equipment damage. Place unit on a solid, flat surface that is capable of supporting at least 55 lbs. Note: Avoid placing other components directly on top of or behind the unit. Leave at least one inch of space on all sides to allow for proper air ventilation. Rack Mounting The RBB-1080 can be mounted in a standard 19 rack. Rack-mounting hardware is provided. 1. Install the rack-mount rails. (See the installation sheet located in the box containing the rack-mount rails.) 2. Install the rail cleats. (See the installation sheet packaged with the cleats.) 3. Install rack-mount ears. (OPTIONAL - See the installation sheet pack - aged with these parts.) Note: Rack-mount ears are not required. The only function they serve is to fasten the unit to the front of the rack and prevent front-to-rear movement. Caution: Rack-mount ears should NEVER be used alone to support the unit. Rack-mount rails must always be used to support the units weight when rack-mounting. 4. Slide the unit into the rack so that the cleats mounted on the side of the unit fit within the track of the rack-mount rails. If the ears were mounted, screw the mounted ears into the rack to lock unit into position. (See the installation sheet.) Limited Warranty The standard warranty is two (2) years from the date of purchase. Be sure to keep your purchase receipt as proof of the original date of purchase. Rotels standard procedure is to replace the original unit with a factory reconditioned unit. Customers who must have the original unit back due to the assignment of asset tags and set depreciation schedules must declare such a need at first contact with Rotel Technical Support. Rotel will ship the replacement unit once the defective unit has been received by the repair department, or cross-ship upon the receipt of a valid credit card number. The customer pays for shipping the unit to Rotel. Rotel pays ground freight transportation costs to ship the replacement unit to the customer. RBB-1080 Back Up Battery Introduction Thank you for purchasing the Rotel RBB-1080 Back Up Battery. It is designed to be used in conjunction with the RLC-1080 Power Conditioner with Battery Backup. One or two RBB-1080 may be added to increase the amount of time the RLC-1080 can run on battery power by 200%. Please register your product online at www.rotel.com. Be sure to keep your purchase receipt as proof of the original date of purchase. Notes on Battery Replacement The batteries in the RBB-1080 are not user serviceable or replaceable. Contact your authorized Rotel dealer or Rotel Technical Support at 800-370-3741 to purchase another RBB-1080 Extended Battery Pack. By default RLC-1080 performs an automatic Self-Test every two weeks. If the test fails, a Replace Battery message will appear on the front panel display of the RLC-1080. To determine if it is the internal RLC-1080 bat - tery pack or the external RBB-1080 Extended Battery Pack that needs replacing, disconnect the RBB-1080 and initiate a new Self-Test. If the test passes, the RBB-1080 likely needs to be replaced. If in warranty, contact Rotel Technical Support (see below). If the test fails again, then the RLC-1080 internal battery pack likely needs to be replaced. To initiate a Self-Test manually, press the Setup button on the front panel until you reach the Initate Self-Test screen. Then use the up or down arrows to initiate the test. Safety Precautions Be sure you have read and understand all of the safety information in the front of the RLC-1080 Users Manual. If you have any questions about the safety information, or are concerned that your home may not be prop - erly wired for this equipment, please contact Rotel Technical Support at 800-370-3741 or a qualified and licensed electrician. Also note, this unit weighs 55 pounds. Two-person lift is required to install this device. Failure to comply may result in personal injury and/or equip - ment damage. Further, ensure the unit is placed on a surface able to hold more than 55 pounds. If rack-mounting the unit, refer to the instructions provided with the mounting brackets and slide rails. Do not install this device during a lightning storm. Do not dispose of this device by placing it in a fire. Please contact Rotel Technical Support at 800-370-3741 for information on the proper recycling and disposal of lead-acid batteries.

Page 2

3 English RLC-1080 with Single RBB-1080 Extended Battery CONNECT TO RLC-1080 OR RBB-1080 NOTICE: USE ONLY WITH RLC-1080 POWER CONDITIONER AND/OR RBB-1080 EXTENDED BATTERY PACK ������ ����������� �������� �������� ���������������� ���������������� ���� ������������������������������������������������� �������������������������������� NOTICE: USE ONLY WITH RLC-1080 POWER CONDITIONER AND/OR RBB-1080 EXTENDED BATTERY PACK NOTICE: USE ONLY WITH RLC-1080 POWER CONDITIONER AND/OR RBB-1080 EXTENDED BATTERY PACK CONNECT TO RLC-1080 OR RBB-1080 CONNECT TO RLC-1080 OR RBB-1080 ������ ����������� �������� �������� �������� ���������������� ���������������� RLC-1080 with Dual RBB-1080 Extended Batteries Specifications Nominal Voltage 48 Vdc Battery Quantity/Type Eight 12-Volt, 9-Amp-Hour, Sealed Lead -Acid, Maintenance-Free Batteries. Not User-Serviceable Battery Life 2-5 Years (Depending on use, environment, and temperature) Battery Runtime 1 RBB-1080 + RLC-1080 battteries: Full load: 32 minutes. Half load: 81 minutes 2 RBB-1080 + RLC-1080 battteries: Full load: 62 minutes. Half load: 159 minutes Note: Actual runtimes are determined by load, battery charge level, battery health and quantity of the batteries. Additional runtime can be achieved by adding a second RBB-1080 unit to your system. Unit Dimensions 17 x 3.5 x 18.55 in. (43.2 x 8.9 x 47.1 cm) Unit Weight 55 lbs.
