Rotel RA 945 OM

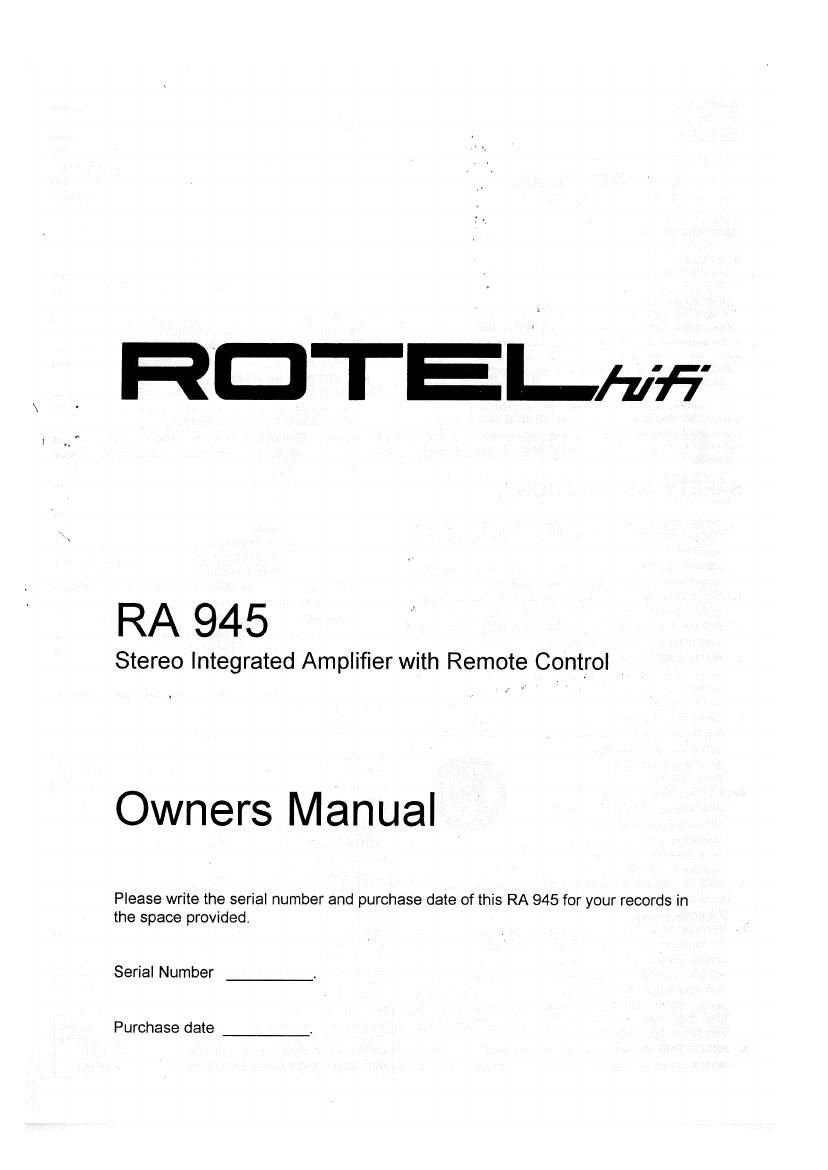

Page 1

, HOTEL/nae-

l

RA 945

Stereo Integrated Amplifier with Remote Control _

Owners Manual

Please write the serial number and purchase date of this RA 945 for your records in
the space provided

Serial Number

Purchase date

Page 2

WARNING: TO REDUCE THE RISK OF FIREOR ELECTRIC
SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR
MOISTURE

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK). NO USER-
SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.

Explanation of Graphical Symbols

The lightning flash with arrowhead symbol, within
an equilateral triangle, is intended to alert the user
to the presence of uninsulated 'dangerous voltage'
within the product's enclosure that may be of
sufficient magnitude to constitute a risk of electric
shock to persons.

The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and maintenance
lnstructions in the literature accompanying the
appliance.

SAFETY INSTRUCTIONS

A
&

1. Read Instructions - All the safety and operating
instructions should be read before the appliance is
operated.

2. Retain Instructions . The safety and operating I

instructions should be retained for future reference.

3. Heed Warnings - All warnings on the appliance and
in the operating instructions should be adhered to.

4. Follow Instructions - All operating and use
instructions should be followed.

5. Water and Moisture - The appliance should not be
used near water - for example, near a bathtub,
kitchen sink, laundry tub, in a wet basement or near a
swimming pool, etc.

6. Carts and Stands - The
appliance should be used only
with a cart or stand that is
recommended by the
manufacturer.

6A.An appliance and cart
combination should be moved
with care. Quick stops,
excessive force and uneven
surfaces may cause the
appliance and cart combination to overturn.

7. Wall or Ceiling Mounting - The appliance should be
mounted to a wall or ceiling only as recommended by
the manufacturer.

8. Ventilation - The appliance should be situated so that
its location or position does not interfere with its
proper ventilation. For example, the appliance should
not be situated on a bed, sofa, rug, or similar surface
that may block the ventilation openings; or placed in a
built-in installation, such as a bookcase or cabinet that
may that may impede the flow of air through the
ventilation openings.

9. Heat « The appliance should be situated away from
heat sources such as radiators, heat registers, stoves

PORTABLE CART
WARNING

or other appliances (including amplifiers) that produce
heat.

10. Power Sources - The appliance should be connected
to apower supply only of the type described in the
operating instructions or as marked on the appliance.

11. Grounding or Polarization - The precautions that
should be taken so that the grounding or polarization
means of an appliance is not defeated.

12. Power-Cord Protection - Power supply cords should
be routed so that they are not likely to be walked on
or pinched by items placed upon or against them,
paying particular attention to cords and plugs,
convenience receptacles and the point where they
exit from the appliance.

13. Cleaning - The appliance should be cleaned only as
recommended by the manufacturer.

14. Nonuse Periods - The power cord of the appliance

. should be unplugged from the outlet when left unused
fora long period of time.

15. Object and Liquid Entry - Care should be taken so
that objects do not fall and liquids are not spilled into
the enclosure through the openings.

16. Damage Requiring Service - The appliance should
be serviced by qualified factory-authorized service
personnel when:

r The power-supply cord or the plug has been
damaged; or

- Objects have fallen, or liquid has been spilled into
the appliance; or

- The appliance has been exposed to rain; or

- The appliance does not appear to operate normally
or exhibits a marked change in performance; or

- The appliance has been dropped, or the enclosure
damaged.

17. Servicing - The user should not attempt to service
the appliance beyond that described in the operating
instructions. All other servicing should be referred to
qualified factory-authorized service personnel.

APPLICABLE FOR U.S.A., CANADA OR WHERE
APPROVED TO THE USAGE.

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE
BLADE OF PLUG TO WIDE SLOT, FULLY INSERT,

ATTENTION: POUR EVITER LES CHOCS ELECTRIQUES,
INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS
LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER
JUSQU AU FOND.

EXCLUSIVE NOTE FOR U.K.

IMPORTANT: The wires in this mains lead are coloured in
accordance with the following code:

GREEN-AN D-YELLOW: EARTH

BLUE: NEUTRAL

BROWN: LIVE
As the colours of the wires in the mains lead of this apparatus
may not correspond with the coloured markings identifying the
terminals in your plug proceed as follows:
The wire which is coloured GREEN-and-YELLOW must be
connected to the terminal in the plug which is marked by the
letter E or by the safety earth symbol ._.I__ or coloured GREEN
or GREEN-and-YELLOW. '
The wire which is coloured BLUE must be connected to the
terminal which is marked with the letter N or coloured BLACK.
The wire which is coloured BROWN must be connected to the
terminal which is marked with the letter L or coloured RED.
WARNING: THIS APPARATUS MUST BE EARTHED
