Rotel RA 870 BX Owners Manual

Page 1

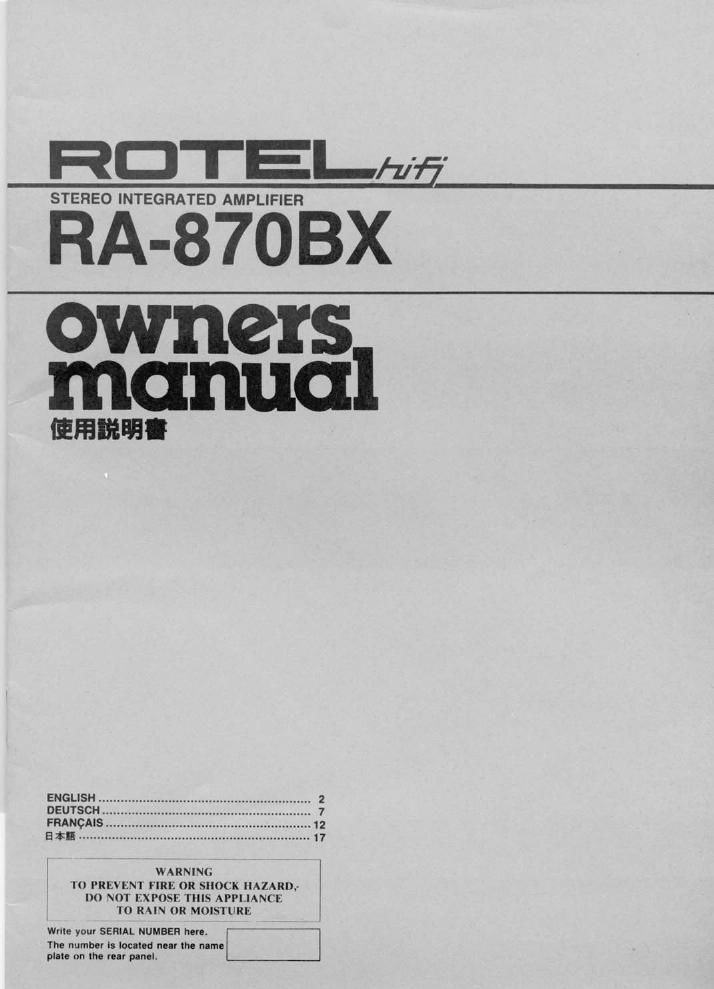

RDTEI-hjfi'

-
STEREO INTEGRATED AMPLIFIER

RA-87OBX

owners
manual

ENGLISH
oeurscH

ancms .
a m ......

WARNING
10 PREVENT FIRE OR SHOCK HAZARD.-
I)() NOT EXPOSE TIIIS APPLIANCE
10 RAIN ()R MOISTURE

Write your SERIAL NUMBER have,

The number Is loomed near the Mme
plate on the ram paneL

Page 2

SAFETY INSTRUCTIONS

RISK OF ELECTRIC SHOCK
DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF
ELECTRIC SHOCK. DO NOT REMOVE
COVER (OR BACK). N0 USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.

- Explanation cl Graphical Symbols

mmmmmm.mm
mmWJlfl-fldbmmmm
muMM-mvmw'wmmm
mmmimmuumm
mm-mdmmnm.

mmmmmuwmmu

EXCLUSIVE NOTE FOR U.K.

ll your unit comes with a 2-core cable without a plug. make
certain live and neutral leads are connected to the proper
terminals. Check that the terminals are screwed down
firmly and no loose strands ol wire are present.
IMPORTANT: The WIres in this mains lead are coloured
in accordance with the following code:

BLUE: NEUTRAL

BROWN: LIVE
As the colours ol the wires in the mains lead at this ap»
paratus may not correspond with the coloured markings
identifying the terminals in your plug proceed as lollows.
The wire which is coloured BLUE must be connected to
the terminal which is marked with the letter N or coloured
BLUE or BLACK. The wire which is coloured BROWN
must be connected to the terminal which is marked WlIh
the letter L or colour BROWN or RED.

1. Read lnstructrons- All the salety and operating instruc-
tions should be read belore the appliance is operated.

2. Retain instructions -- The salety and operating instruc-
tions should be retained tor luture reference.

3. Head Warnings -- Alt warnings on the appliance and in
the operating instructions should be adhered to

4. Follow Instructions - All operating and other instructions
should be loilowed.

5. Water and Moisture - The appliance should not be used
near water - lor example. near a bathtub. washbowl.
kitchen sink. laundry tub, in a wet basement. or near a

1 swimming pool, etc.

10.

11.

12.

13.

14.

15.

16.

17.

. Cans and Stands - The appliance should be used only

with a cart or stand that is recommended by the
manulaclurer.

. Wall or Ceiling Mounting - The appliance should be

mounted to a wall or ceiling only as recommended by
the manulacturer,

. Ventilation - The appliance should be situated so that

its location or position does not interlere with its proper
ventilation. For example. the appliance should not be
situated on a bed. sola. rug. or similar surlace that may
block the ventilation openings: or placed in a built-in in-
stallation. such as a bookcase or cabinet that may im-
pede the flow ol air through the ventilation openings.

Heat - The appliance should be situated away lrorn heat
sources such as radiators. stoves. or other appliances
that produce heat.

Power Sources - The appliance should be connected
to a power supply only at the type described in the oper-
ating instructions or as marked on the appliance.

Power-Cord Protection - Power-supply cords should be
routed so that they are not likely to be walked on or
pinched by items placed upon or against them. paying
particular attention to cords at plugs. convenience recap
tacles, and the point where they exit item the appliance.

Cleaning - The appliance should be cleaned only as
recommended by the manufacturer.

Nonuse Periods - The power cord or the appliance
should be unplugged trom the outlet when Ielt unused
tor a long period at time.

Object and Liquid Entry - Care should be taken sothat
objects do not tall into and liquids not spilled into the in
side 0! the appliance.

Damage Requiring Service - The appliance should be
serviced by qualified service personnel when:

A The power-supply cord or the plug has been
damaged; or

. Obyects have lallen. or liquid has been spilled into
the appliance; or
The appliance has been exposed to rain; or

. The appliance does not appear to operate normally
or exhibits a marked change in pertormance; or
The appliance has been dropped. or the cabinet
damaged,

MUCH!

Servncrng - The user should not attempt to service the
appliance beyond those means described in the oper-
ating instructions. All other servicnng should be relerred
to qualilted service personnel.

Grounding or Polarization -- The precautions that should
be taken so that the grounding or polarization means 01
an appliance Is not deleated.
