Rotel RA 840BX3 OM

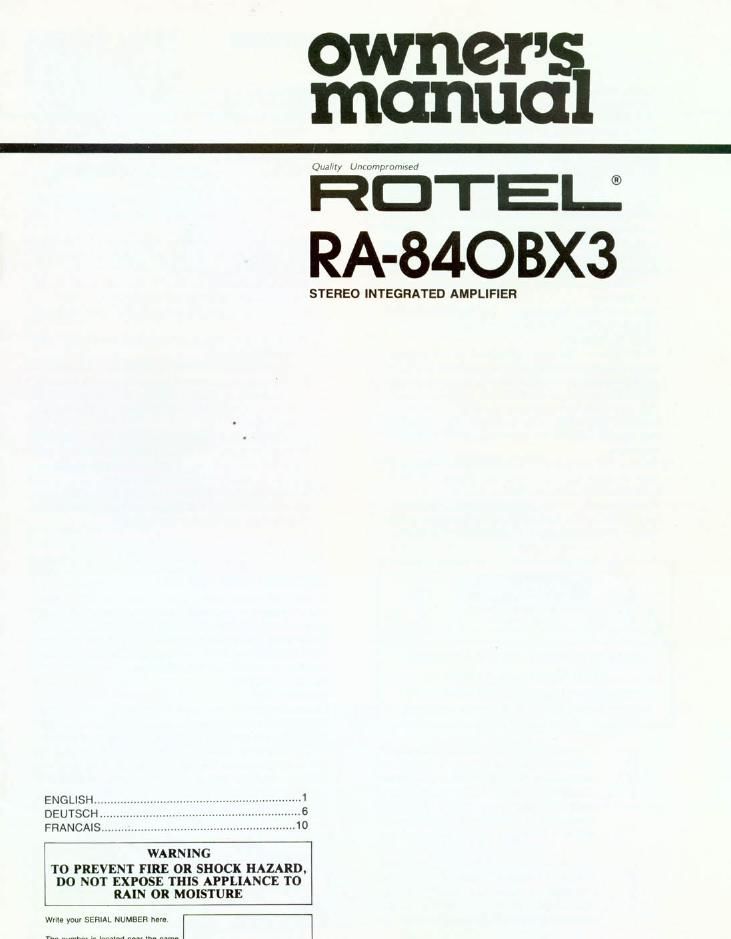

Page 1

owners
manual

(gummy UNOmp/vmrsed

RDTEU
RA-84OBX3

STEREO INTEGRATED AMPLIFIER

ENGLISH
DEUTSCH .. V
FRANCAIS..

WARNING
TO PREVENT FIRE 0R SHOCK HAZARD.
DO NOT EXPOSE THIS APPLIANCE TO
I RAIN 0R MOISTURE

Wm; youv SERIAL NUMBER new I
.M m, . .. M... .... m, mm.

Page 2

SAFETY INSTRUCTIONS

. Read lnstructlons -- All the safety and operating
instructions should be read before the appliance is
operated.

. Retain Instructions - The safety and operating in-
structions should be retained for future reference.

. Heed Wamlngs - All warnings on the appliance and
in the operating instructions should be adhered to.

. Follow Instructions - All operating and other instruc-
tions should be followed.

. Water and Moisture - The appliance should not be
used near water - for example, near a bathtub. wash-
bowl. kitchen sink. laundry tub. in a wet basement. or
near a swimming pool. etc.

. Carts and Stands - The appliance should be used
only with a cart or stand that is recommended by the
manufacturer.

. Wall or Ceiling Mounting - The appliance should
be mounted to a wall or ceiling only as recommended
by the manufacturer,

, Ventilation - The appliance should be situated so
that its location or position does not interfere with its
proper ventilation. For example, the appliance should
not be situated on a bed. sofa. rug, or similar surface
that may block the ventilation openings: or placed in
a built-in installation, such as a bookcase or cabinet
that may impede the flow of air through the ventilation
openings.

. Heat - The appliance should be situated away from
heat sources such as radiators. stoves. or other
appliances that produce heat.

. Power Sources - The appliance should be connected
to a power supply only of the type described in the
operating instructions or as marked on the appliance.

11. Power-Cord Protection -- Power-supply cords should

be routed so that they are not likely to be walked on
or pinched by items placed upon or against them.
paying particular attention to cords at plugs, con-
venience receptacles. and the point where they exit
from the appliance.

12. Cleaning - The appliance should be cleaned only as

recommended by the manufacturer.

13. Nonuee Periods - The power cord of the appliance

should be unplugged truth the outlet when left unused
for a long period of time.

14. Object and Liquid Entry - Care should be taken so

that obiecta do not fall into and liquids not spilled into
the inside of the appliance.

15. Damage Requiring Service - The appliance should

be serviced by qualified service personnel when:
A. firepower-supplycordorthaplughasbeendarnaged;
. or

B. Objects have fallen. or liquid has been spilled into
the appliance; or

C. The appliance has been exposed to rain; or

D. The appliance does not appear to operate normally
or exhibits a marked change ih performance; or

E. The appliance has been dropped. or the cabinet
damaged.

16. Servicing - The user should not attempt to service

the appliance beyond those means described in the
operating instructions. All other servicing should be
referred to qualified service personnel.

17. Grounding or Polarization - The precautions that

should be taken so that the grounding or polarization
means of an appliance is not deleated.

6 RISK OF ELECTRIC SHOCK
DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER [OR RACK!
N0 USERSERVICEAILE PARTS IISIOE

REFER SERVICING TO OURlIFIEO SERVICE PERSONNEL

magnitude to constitute a risk ol electric
shock to persons.

The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.

The lighting flash with arrowhead symbol.
within an equilateral triangle. is intended to
alart the user to the presence of uninsulated
dangerous voltage" within the product's
enclosure that may be of sufficient

EXCLUSIVE NOTE FOR UK.

If your unit comes with a 2-core cable without a plug,
make certain live and neutral leads are connected to the
proper terminals. Check that the terrninais are screwed
down firmly and no loose strands of wire are present.
IMPORTANT: The wires in this mains lead are coloured
in accordance with the following code:

BLUE : NEUTRAL

BROWN: LIVE

As the colours of the wires in the mains lead oi this
apparatus may not correspond with the coloured markings
identifying the terminals in your plug proceed as follows,
The wire which is coloured BLUE must be connected to
the terminal which is marked with the letter N or coloured
BLUE or BLACK. The wire which is coloured BROWN
must be connected to the terminal which is marked with
the letter L or colour BROWN or RED.

CAUTION:

To prevent electric shock do not use this (polarized)
plug with an extension cord. receptacle or other outlet
unless the blades can be fully inserted to prevent

blade exposure.
