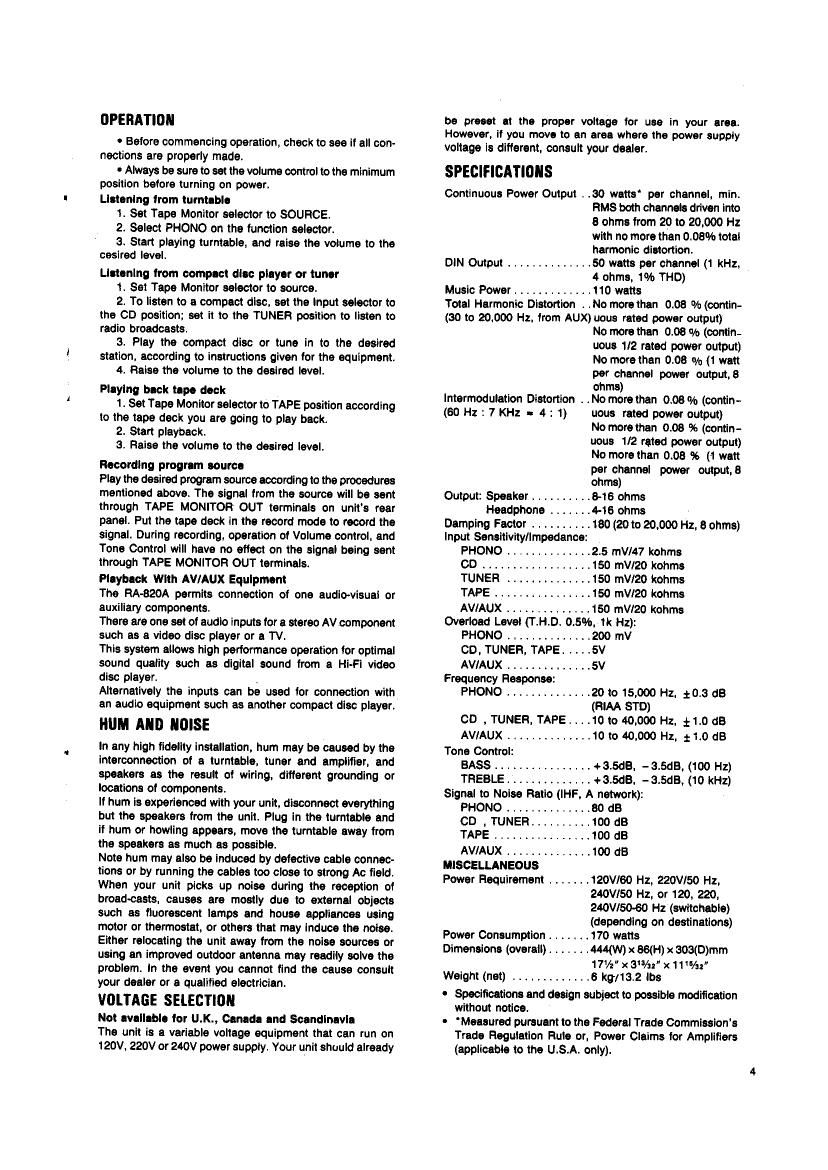

OPERATION

0 Beiore commencing operation, check to see it all con-
nections are properly made.

- Always be sure to set the volume control to the minimum
position beiore turning on power.

Listening from turntable

1. Set Tape Monitor selector to SOURCE.

2. Select PHONO on the function selector.

3. Start playing turntable, and raise the volume to the
cesired level.

Listening from compact disc player or tuner

1. Set Tape Monitor selector to source.

2. To listen to a compact disc. set the input selector to
the CD position; set it to the TUNER position to listen to
radio broadcasts.

3. Play the compact disc or tune in to the desired
station, according to instructions given tor the equipment.

4. Raise the volume to the desired level.

Playing back tape deck

1. Set Tape Monitor selector to TAPE position according
to the tape deck you are going to play back.

2. Start playback.

3, Raise the volume to the desired level.

Recording program source

Play the desired program source according to the procedures
mentioned above. The signal from the source will be sent
through TAPE MONITOR OUT terminals on unit's rear
panel. Put the tape deck in the record mode to record the
signal. During recording, operation at Volume control, and
Tone Control will have no eflect on the signal being sent
through TAPE MONITOR OUT terminals.

Playback With AV/AUX Equipment

The RA-820A permits connection of one audio-visual or
auxiliary components.

There are one set of audio inputs for a stereo AV component
such as a video disc player or a TV.

This system allows high performance operation Ior optimal
sound quality such as digital sound from a Hi-Fi video
disc player. _

Alternatively the inputs can be used ior connection with
an audio equipment such as another compact disc player.

HIIM MID IIOISE

In any high fidelity installation, hum may be caused by the
interconnection of a turntable. tuner and amplifier. and
speakers as the result or wiring. ditterent grounding or
locations at components.

if hum is experienced with your unit, disconnect everything
but the speakers from the unit. Plug in the turntable and
ii hum or howling appears. move the turntable away from
the speakers as much as possible.

Note hum may also be induced by defective cable connec-
tions or by running the cables too close to strong Ac field,
When your unit picks up noise during the reception at
broad-casts, causes are mostly due to external objects
such as fluorescent lamps and house appliances using
motor or thermostat, or others that may Induce the noise.
Either relocating the unit away from the noise sources or
using an improved outdoor antenna may readily solve the
problem. in the event you cannot find the cause consult
your dealer or a qualitied electrician.

VOLTAGE SELECTION
Not available for U.K., Canada and Scandinavia

The unit is a variable voltage equipment that can run on
120V, 220V or 240V power supply. Your unit should already

be preset at the proper voltage ior use in your area.
However. it you move to an area where the power supply
voltage is diflerent. consult your dealer.

SPECIFICATIONS

Continuous Power Output . .30 watts per channel, min.
RMS both channels driven into
6 ohms from 20 to 20,000 Hz
with no more than 0.08% total
harmonic distortion.

DlN Output .............. 50 watts per channel (1 kHz,
4 ohms, 1% THD)
Music Power ............. 110 watts

Total Harmonic Distortion . .No more than 0.08 % (comin-

(30 to 20,000 Hz. from AUX) uous rated power output)
No more than 0.08 % (oontln-
uous 1/2 rated power output)
No more than 0.06 % (1 watt
per channel power output. 8
ohms)

lntermodulation Distortion . .No more than 0.06% (contin-

(60 Hz : 7 KHz - 4 : 1) uous rated power output)
No more than 0.08 '36 (contin-
uous 1/2 rated power output)
No more than 0.08 36 (-1 watt
per channel power output, 5
ohms)

Output: Speaker .......... 8-16 ohms

Headphone . .4-16 ohms
Damping Factor ...... . . 100 (20 to 20,000 Hz, 8 ohms)
Input Sensitivity/impedance:
PHONO .............. 2.5 mV/47 kohms

OD . . . . .150 mV/20 kohms
TUNER .150 mVIZO kohms
TAPE . .150 mV/20 kohms
AV/AUX ..... . . . .150 mV/20 kohms
Overload Level (T .H.D. 0.5%, 1k Hz):
PHONO .............. 200 mV
CD. TUNER. TAPE ..... 5V
AVIAUX .............. 5V
Frequency Response
PHONO .............. 20 to 15,000 Hz. 10.3 dB
(RIAA STD)
CD , TUNER, TAPE. . . .10 to 40,000 Hz, :10 dB
AV/AUX .............. 10 to 40,000 Hz, 1 1.0 dB
Tone Control:
BASS . . . ........... +3.5dB, -3.5dB, (100 Hz)
THEBLE ............ +3.5dB, -3.5dB, (10 kHz)
Signal to Noise Ratio (lHF, A network):
PHONO .............. 80 dB
CD , TUNER .......... 100 dB
TAPE ..... . .100 dB
AVIAUX ....... . .100 dB
MISCELLANEOUS
Power Requirement ....... 120VI60 Hz, 220V/50 Hz.
240VI50 Hz, or 120, 220,
240V/50-60 Hz (switchable)
(depending on destinations)
Power Consumption ....... 170 watts
Dimensions (overall) ....... 444(W) x 86(H) x 303(D)mm
17/: x 3"/u" x 11'5/51
Weight (net) ............. 6 kg/13.2 lbs

- Specifications and design subject to possible modification
without notice.

0 Measured pursuant to the Federal Trade Commissions
Trade Regulation Rule or, Power Claims for Amplifiers
(applicable to the U.S.A. only).
