INTRODUCTION

We at Hotel want to thank you for
purchasing our audio product.
Flotel audio products are designed
to use the latest electronic techno-
logy, and they incorporate our long
experience as a specialist manufac-
turer of audio equipment. We are
confident that you will find satis-
faction in the higt quality sound
and top performance, and that you
will find pleasure in the functional
beauty achieved through human-
engineering concept. Before start-
ing operation, please read this
instruction manual thorouyily and
acquaint yourself with the proper
mode of using the unit and all
its connections

We hope you will enjoy top-notch
performance for many years to
come.

SPEAKERS CONNECTION

RIGHT

SPEAKER A

LEFT

ventilation may result in damage
due to excessive heat.

5, Do not open the cﬁinut

In order to avaid electric shock or
damage to the component, never
open the cabinet. if a foreign object
lalls inside the unit by mistake,
turn the newer olll disconnect the
wall plug, and consult a qualified
electrician or your dealer

6. Turn the volume control initial-
ly to minimum

When lowering the tonearm ol your
turntable onto a record, an excess
OI current in the lower frequency
range may cause damage to the
speakers To prevent thls, always
minimize the volume setting lnlltal'
ly_

7. Moving the unit

When transportinu. remove the AC
cord lrurri the wall oullet and all
other connected cords on the rear
panel to pieyeni WIVF breakage arid
short CIVCUllS

8, If the unit gets wet

If the unit should gel wet, lmmedl-
ately disconnect ihe AC cord, and
consult your dealer or a qualified
electriman

9. Cleaning and maintenance

Do not use chemicals such as
benzine or thinners on the front
panel. Always use a soft, dry cloth
to clean the unit,

10. Retain the owners manual
Retain the owner's manual near the
unit, and write down the serial
number (found on the rear panel)
on the cover.

INSTALLATION

Be suite to place the unit in a level
and flat place where it is free from
humidityl vibration, high tempera
ture and not exposed to direct
sunlight. Be careful not to place the
unit in a higily enclosed place such
as near a wall or on a bookshelf. A
poor ventilation will cause undesira-
ble effects to the unit.

SPE A KE RS

Be sure to use only speakers rated
at 4 7 16 ohms. The unit will ac-
cept two pairs of speaker systems,
but if the two systems are to be
driven at a time, each speaker
should be rated at B - 16 ohms.
The speaker impedance may be
found on its name plate or the
instruction manual of the speaker.

\
$F'EAKERA \
, lOmm
I
V PUSH-INSERT
, +
9 93- Q l .69
k

RIGHT

SPEAKER a

SPEAKER B

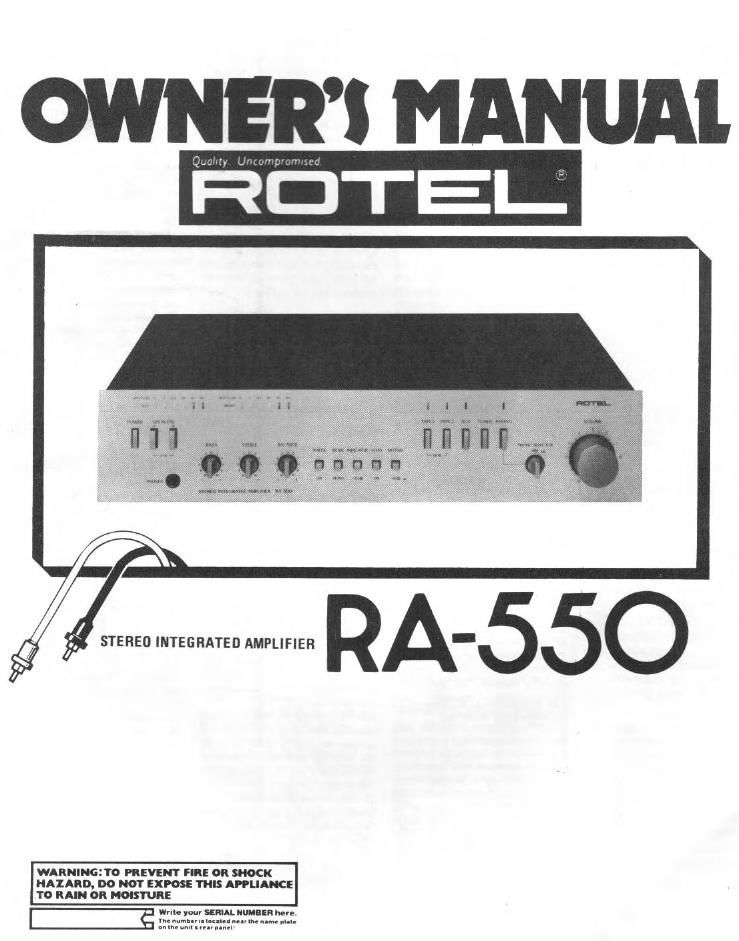

Rotel RA 550 OM
