Rotel RA 210 OM

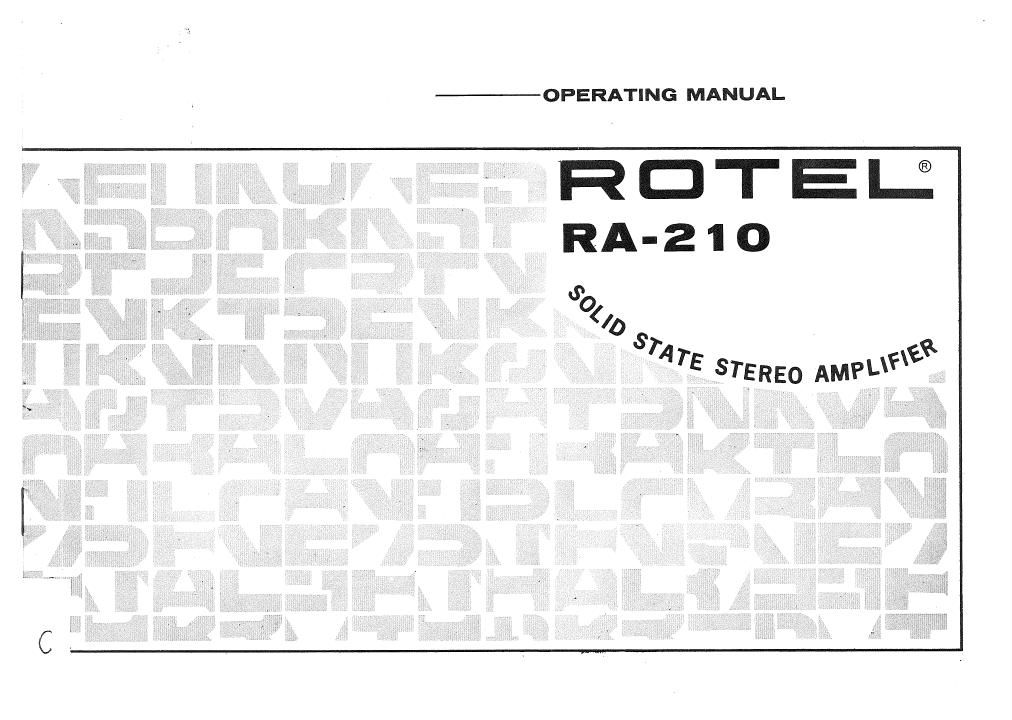

Page 1

OPERATING MANUAL

HOTEL?
RA-21O

6
0(4)

87
ATE STEREO AMPLFW}

Page 2

INTRODUCTION

We would like to take this opportunity to thank you for purchasing
our Rotel RA-210 Stereo Pre-Main Integrated Amplifier. We are
confident that it will give you unequaled excellence in trouble-free
performance for many years to come.

The RA210 is equipped with every necessary control and feature
to give it both'versatility and ease of operation. lt will add studio

flexibility to your present music system.

In order to obtain the maximum use'out of your unit, please,

read all of the following pages of this Operating Manual carefully.
Do not attempt to operate the unit until you have made all the

connections as specified in this Manual.

SPECIAL FEATURES

1)
2)
3)
4)
5)
6)
7)
8)
9)
10)
11)

12)

All Solid State Electronics design.

All Silicon Output Transistors.

Pushbutton Function Selectors: Phono, Tuner, Aux and Tape.
Bass'and Treble with both boost and cut tone controls.
Balance and Volume/Power controls.

Power indicator Light.

Front Panel Headphone Jack.

Inputs for: Phono, Tuner, Aux'and Tape.

Output for Tape Recorder.

AC Power Outlet

Record Player Ground Terminal.

Handsome Wood Cabinet.
