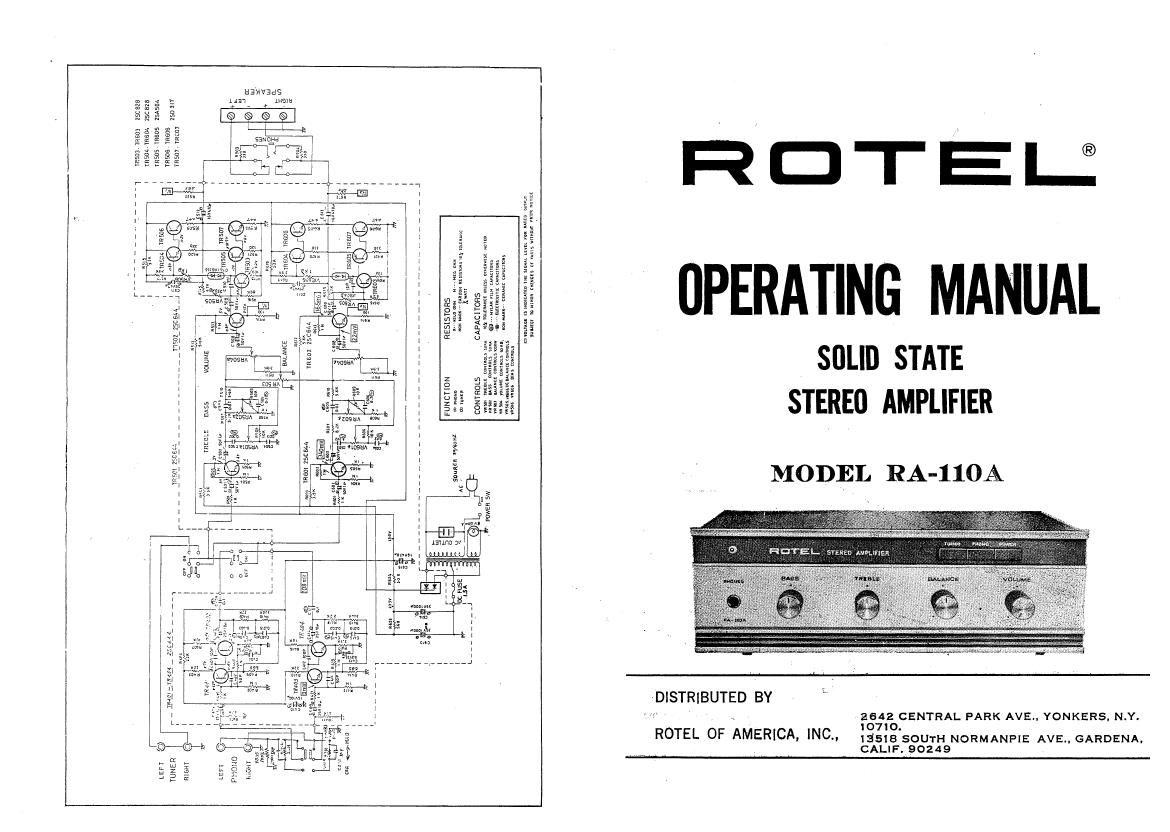

Rotel RA 110A OM

Page 1

haw/ads
A421 * mans

250 311

(HEM mew. 25cm
msns mans zsnsu
:07

mice mans

mam mam zscnza
nan-L m

R (:1 T E I_®
OPERATING MANUAL

SflLID STATE
STEREO AMPLIFIER

mm; wk lawn»:

m. .. mm.
alumna:
x..."

CAPA TORS

RESTS 0R5

FUNCTION
2; 32::
comno

BAiS

mm-

mam mew.

MODEL RA-llOA

a a x
m

DISTRIBUTED BY

w ,. ?g;I%CENTRAL PARK AVE.. YONKERS. N.Y.

ROTEL OF AMERICA. INC-1 13518'sou1-H NORMANPIE AVE., GARDENA.
CALIF. 90249

Page 2

FEATURES

THE ALL-TRANSISTOR STEREO AMPLIFIER MODEL RA-llOA HAS SUCH
QUALITY FEATURES'AS 20 WATTS IHF MUSIC POWER, BASS AND TREBLE
CONTROLS, FUSED OUTPUT STAGE AND AUXILIARY AC OUTLET.

THE MODEL RA-llOA IS AN INTEGRATED PREAMAIN STEREO AMPLI-
ElER,

INSTALLATION
PICK up SELECTOR SWITCH
RESIOEISDEI? TAPE MAGNETIC oRCERAMvc
AC OUTLET RDTEL HA m; 0
Max 200w _ ma
. AC nw sowow ran my.
MAnE IN TAIWAN. VHF verL-C :7» CHIN» @
a" Q
SPEAKEDS
Emu LEFT mm mm
r [R
. O O r I I s
W] Eezéme @@@@y
/ , + _ + a _ Fy
I
RIGHT LEFT RECORD PLAYER
|:I wnm MAGNETIC or CERAMIC
SPEAKERS CARTRIDGE V

SPEAKER CONNECTIONS:

Connect the left hand speaker leads to the terminals designated LEFT SPEAKER
and the rightspeaker leads to RIGHT SPEAKER. Any speaker system of 4,8, or 16
ohm impedance can be connected.

WARNING:

Make sure that all the speaker leads are fastened securely to the proper terminals
and that there are no stray strands shorting one terminal with adjacent terminal or
the chassis. .F . .. I. I.

TUNER CONNECTIONS: '

Use the TUNER terminals for connecting a tuner. In case of a Monophonic
Tuner, connect the tuner output lead to either the RIGHT or LEFT terminal on
the RA-llOA by means of shielded cables.

RECORD PLAYER CONNECTIONS:

Connect the outputs from a magnetic or ceramic type pick-up to the input jacks

marked PHONO

OPERATION

When all the connections have been made according to the preceding instruc-
tions, you may apply the power by pushing IN the POWER button.
PHONO OPERATION: y.

Set the Selector to PHONO position and the MAG/GER switch to MAG. or

CER, depending upon your pick-up.

The BASS and TREBL controls may be set to your personal preference.
Adjust the BALANCE control to obtain proper balance between the two speakers.
TUNER OPERATION:

Set the SELECTOR to TUNER position and adjust all other controls as
necessary for proper operation.

PLAYBACK OF TAPE RECORDING:

To listen to a playback of pre-recorded tape, connect the output lead of tape
recorder to the jack marked TUNER and set the ELECTOR to TUNER position.
STEREO HEADPHONES:

Simply plug the lead from your headphones into the jack provided on the front
panel. Speakers connected to this amplifier will be automatically disconnected.

FUSE:

The model RA-IlOAhas a fuse in the secondary circuit to prevent damage to
the transistors. The rating of the fuse is 1 ampere. In the event of its failure, this

{use should be replaced with another of the same rating.

SPECIFICATIONS

POWER SOURCE: ACI17V, 50/60 Hz.

POWER CONSUMPTION: 30 Watts

MUSIC POVIHER OUTPUT: ' 20 Watts at 4 ohms, 13 Watts at 8 ohms.
AUDIO DISTORTION: 05% at Maximum Output

HUM & NOISE: Phone, 60 db, TUNER 60 db. RESIDUAL 2mv.
BASS CONTROL: 2: Hall: at 50 Hz
TREBLE CONTROL: :1: 12db at 10,000 Hz

SPEAKER IMPEDANCE: 4. 8, 16 ohms.
DIMENSIONS: 11" (W) x3e" (H) x7e" (D)
