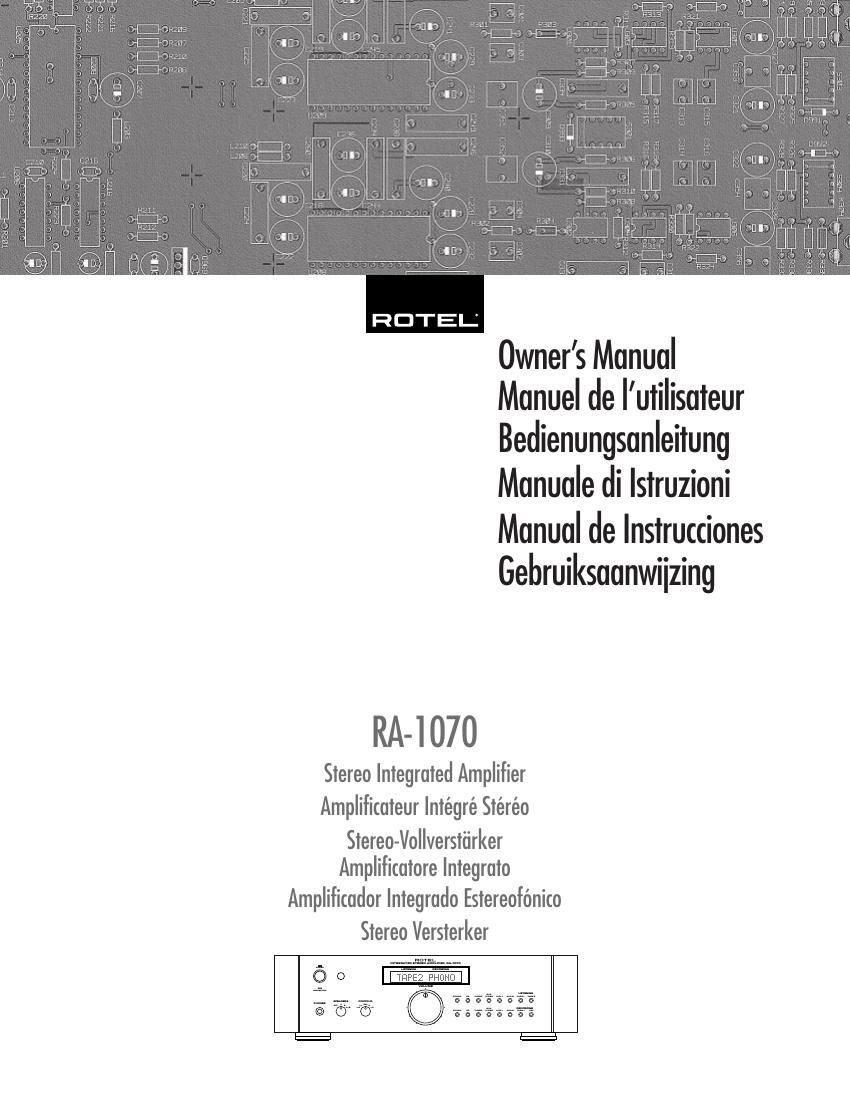

Rotel RA 1070 OM

Page 1

2 CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT. INSERT FULLY. APPLICABLE FOR USA, CANADA OR WHERE APPROVED FOR THE USAGE ATTENTION: POUR EVITER LES CHOCS ELECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU AU FOND. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. WARNING: There are no user serviceable parts inside. Re- fer all servicing to qualified service personnel. WARNING: To reduce the risk of fire or electric shock, do not expose the unit to moisture or water. Do not allow for- eign objects to get into the enclosure. If the unit is exposed to moisture, or a foreign object gets into the enclosure, im- mediately disconnect the power cord from the wall. Take the unit to a qualified service person for inspection and nec- essary repairs. Read all the instructions before connecting or operating the component. Keep this manual so you can refer to these safety instructions. Heed all warnings and safety information in these instructions and on the product itself. Follow all operating instructions. Clean the enclosure only with a dry cloth or a vacuum cleaner. You must allow 10 cm or 4 inches of unobstructed clearance around the unit. Do not place the unit on a bed, sofa, rug, or similar surface that could block the ventilation slots. If the component is placed in a bookcase or cabinet, there must be ventilation of the cabinet to allow proper cooling. Keep the component away from radiators, heat registers, stoves, or any other appliance that produces heat. The unit must be connected to a power supply only of the type and volt- age specified on the rear panel of the unit. Connect the component to the power outlet only with the supplied power supply cable or an exact equivalent. Do not modify the supplied cable in any way. Do not attempt to defeat grounding and/or polarization provi- sions. Do not use extension cords. Do not route the power cord where it will be crushed, pinched, bent at severe angles, exposed to heat, or damaged in any way. Pay particular attention to the power cord at the plug and where it exits the back of the unit. The power cord should be unplugged from the wall outlet if the unit is to be left unused for a long period of time. Immediately stop using the component and have it inspected and/or ser- viced by a qualified service agency if: ¥ The power supply cord or plug has been damaged. ¥ Objects have fallen or liquid has been spilled into the unit. ¥ The unit has been exposed to rain. ¥ The unit shows signs of improper operation ¥ The unit has been dropped or damaged in any way Place the unit on a fixed, level surface strong enough to support its weight. Do not place it on a moveable cart that could tip over. RA-1070 Stereo Integrated Amplifier

Page 2

3 Figure 1: Controls and Connections Commandes et branchements Bedienelemente und AnschlŸsse Collegamenti e comandi Controles y Conexiones De bedieningsorganen en aansluitingenEnglish INTEGRATED STEREO AMPLIFIER RA-1070 VOLUME PHONESCONTOUR OFF H LH L- 1 L- 2 SPEAKERS A B A+B OFF PROTECTIONPOWER RECORDINGLISTENING DVD /VIDEO TUNER DVD /VIDEO TUNERTAPE 1 TAPE 2 AUX 2 AUX 1 PHONO CD PHONO CD TAPE 1AUX 2 AUX 1 OFF LISTENING RECORDING 1 3 2 6 7 8 9 4 5 10 11 RIGHT AUX 1 DVD /VIDEO TUNER CD PHONOTAPE 2IN OUT TAPE 1IN OUTLEFT 12PRE OUT RIGHT AUX 2 LEFT RIGHT LEFTIN EXT REM IR OUT 12V TRIGGER OUT COMPUTER I/O SWITCHED 200W MAX. 121 2 INTEGRATED AMPLIFIER MODEL NO. RA-1070 POWER CONSUMPTION: 400W LEFT SPEAKERS A RIGHT LEFT SPEAKERS B RIGHT SPEAKER IMPEDANCEA AND B -“ 8 OHMS MINIMUM A OR B -“ 4 OHMS MINIMUM WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRICAL SHOCK, DO NOTEXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE 18 19 20 21 22 23 12 14 15 13 16 17 SR - + UP DWN ENT POWER AUD TV SAT VCR DVD CD TUN AV 1 AV 2 AV 3 123 456 789 +10 0 X BAND MUTE CH VOL PLAY TRACK STOP PAUSEGUIDEINPUT MENU OSD PREV CH SEARCH+ SEARCH -“ CM A B C D E H G F Figure 2: RR-969 Remote Control TŽlŽcommande RR-969 Fernbedienung RR-969 Comando a distanza RR-969 Mando a Distancia RR-969 De afstandsbediening RR-969 TIME/ALM MACRO LEARNEDIT / CLONE LANG PAGE 1/2 CLEAR RESETPRELOAD SHIFTFILTER EXT IN SUR + CD TUN PH TAPE1 TAPE2 V1 V2 V3 V4 V5 SR DWN DISPLAY TV/VCR SWAP PIP POS ANT MODE INPUT1 INPUT2 INPUT3 RECORD STOP PA U S E PREV CH SEARCH+ SEARCH -“ TUNER FM MONO DIRECT FM NARROW SHIFT PTY TA TP FILTER EXT IN ZONE PRESET SUR +DISPLAY CD TUN PH TAPE1 TAPE2 V1 V2 V3 V4 V5 TV/VCR SWAP PIP POS ANT MODE INPUT1 INPUT2 INPUT3 TV/VCR RECORD M L K I J
