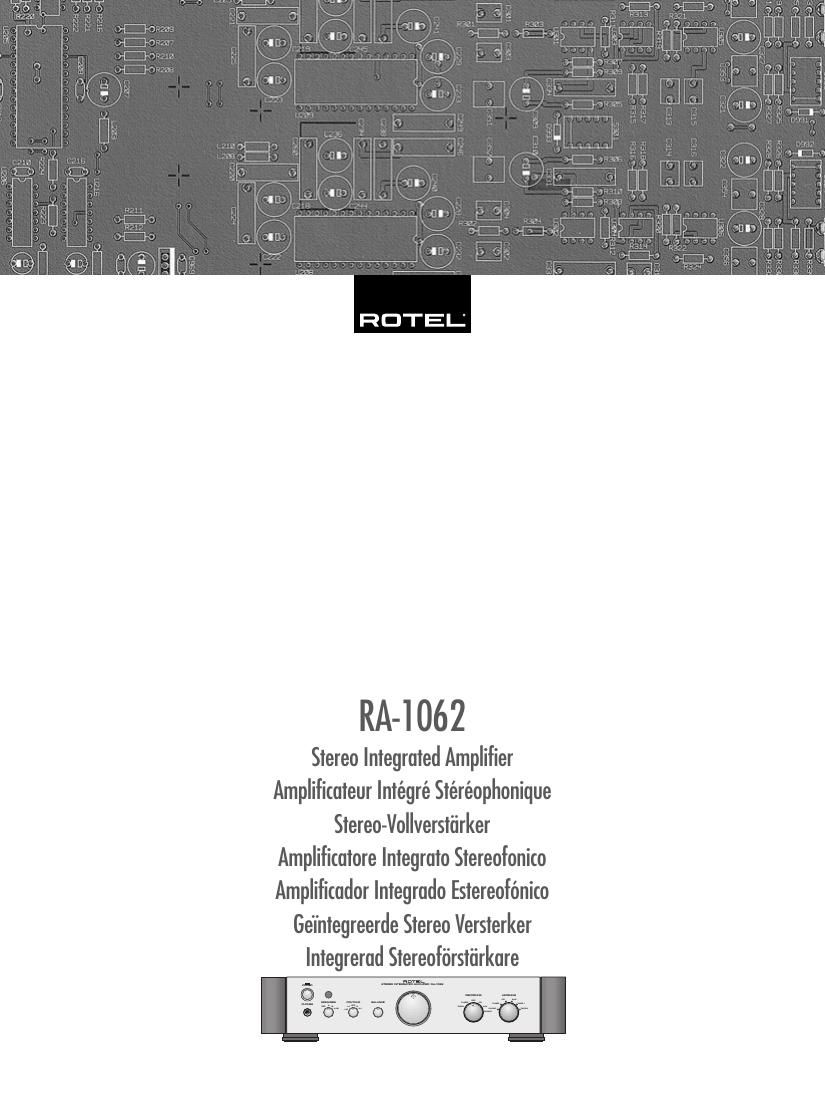

Rotel RA 1062 OM

Page 1

2 Important Safety Instructions WARNING: There are no user serviceable parts inside. Re- fer all servicing to qualified service personnel. WARNING: To reduce the risk of fire or electric shock, do not expose the unit to moisture or water. Do not allow for- eign objects to get into the enclosure. If the unit is exposed to moisture, or a foreign object gets into the enclosure, im- mediately disconnect the power cord from the wall. Take the unit to a qualified service person for inspection and nec- essary repairs. Read all the instructions before connecting or operating the component. Keep this manual so you can refer to these safety instructions. Heed all warnings and safety information in these instructions and on the product itself. Follow all operating instructions. Clean the enclosure only with a dry cloth or a vacuum cleaner. You must allow 10 cm or 4 inches of unobstructed clearance around the unit. Do not place the unit on a bed, sofa, rug, or similar surface that could block the ventilation slots. If the component is placed in a bookcase or cabinet, there must be ventilation of the cabinet to allow proper cooling. Keep the component away from radiators, heat registers, stoves, or any other appliance that produces heat. The unit must be connected to a power supply only of the type and volt- age specified on the rear panel of the unit. Connect the component to the power outlet only with the supplied power supply cable or an exact equivalent. Do not modify the supplied cable in any way. Do not attempt to defeat grounding and/or polarization provi- sions. Do not use extension cords. Do not route the power cord where it will be crushed, pinched, bent at severe angles, exposed to heat, or damaged in any way. Pay particular attention to the power cord at the plug and where it exits the back of the unit. The power cord should be unplugged from the wall outlet if the unit is to be left unused for a long period of time. Immediately stop using the component and have it inspected and/or ser- viced by a qualified service agency if: -The power supply cord or plug has been damaged. -Objects have fallen or liquid has been spilled into the unit. -The unit has been exposed to rain. -The unit shows signs of improper operation -The unit has been dropped or damaged in any way Place the unit on a fixed, level surface strong enough to support its weight. Do not place it on a moveable cart that could tip over. RA-1062 Stereo Integrated Amplifier

Page 2

3 English STEREO INTEGRATED AMPLIFIER RA-1062 PHONESRECORDING LISTENING CD AUX TUNER TAPE 1 TA P E 2 PHONO OFF CD TUNER TA P E 1 A U X PHONO CONTOURL- 1 L- 2LH SPEAKERS A OFFBA+B POWER OFF H BALANCE 1 2 3 4 5 6 7 8 9 10 Figure 1: Controls and Connections Commandes et branchements Bedienelemente und Anschlüsse Controlli e collegamenti Controles y Conexiones De bedieningsorganen en de aansluitingen Funktioner och anslutningar PHONO CD TUNER TAPE 1 IN OUT IN OUT TAPE 2 PRE OUT AUX LEFT RIGHT LEFT RIGHT R L 12V TRI GGER OUT LEFT SPEAKER A RIGHT LEFT SPEAKER B RIGHT A AND B -“ 8 OHMS MINIMUM A OR B -“ 4 OHMS MINIMUM WARNING: TO REDUCE THE RIS K OF FIRE OR ELECTRICAL SHOCK, DO NOTEXPOSE THIS EQUIPMENT TO RAIN OR MOISTUR E INTEGRATED AMPLIFIE R MODEL NO. RA-1062 POWER CONSUMPTION: 300 W SPEAKER IMPEDANCE RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION WARNIN G: SHOCK HAZARD - D O NOT OPEN AVIS: RIS QUE DE CHOC ELECTRI QUE - NE PAS OUVRI R 12 11 13 14 15 16 17 18 19 20 A D E F G B C Figure 2: RR-AT92 Remote Control Télécommande RR-AT92 Fernbedienung RR-AT92 Telecomando RR-AT92 Mando a Distancia RR-AT92 De RR-AT92 afstandsbediening RR-AT92 Fjärrkontroll
