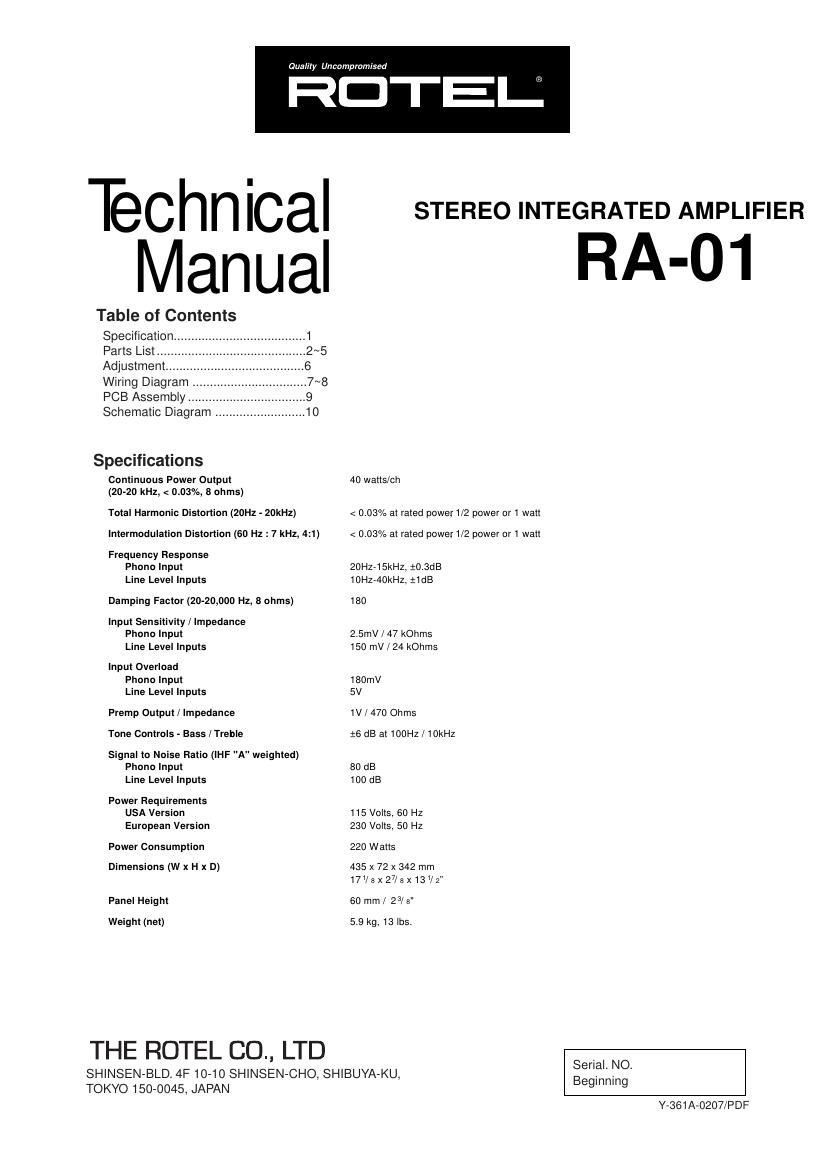

Rotel RA 01 Service Manual

Page 1

Quality Uncompromised

RDTEI-

TeChn ical STEREO INTEGRATED AMPLIFIER
Manual RA-01

Table of Contents
Specification ...................................... 1
Parts List
Adjustmen
Wiring Diagram
PCB Assembly ......
Schematic Diagram

Specifications
Continuous Power Output 40 watts/ch
(20-20 kHz, < 0.03%, 8 ohms)
Total Harmonic Distortion (20H: - 20kHz) < 0.05% at rated power 1/2 power or 1 watt
lntermodulation Distortion (60 Hz :7 kHz, 4:1) < 0.03% an rated power 1/2 power or 1 watt
Frequency Response
Phono Input 20H2715kHz, :O.3dB
Line Level Inputs 10H2740kHz, :1dB
Damping Factor (20-20,000 Hz, 8 ohms) 180
Input Sensitivity / Impedance
Phono Input 2.5mV / 47 kOhms
Line Level Inputs 150 mV / 24 kOhms
Input Overload
Phono Input 180mV
Line Level Inputs 5V
Premp Output / Impedance 1V / 470 Ohms
Tone Controls - Bass lTreble :6 dB at 100Hz / 10kHz
Signal to Noise Ratio (IHF "A" weighted)
Phono Input 80 dB
Line Level Inputs 100 dB
Power Requirements
USA Version 115 Volts, 60 HZ
European Version 230 Volts. 50 Hz
Power Consumption 220 Waits
Dimensions (W x H x D) 435 x 72 x 342 mm
17/ax27/ax13/2"
Panel Height 60 mm/ 23/ a"
Weight (net) 5.9 kg, 13 lbs.

THE ROTEL 00., LTD

SHINSEN-BLD. 4F 10-10 SHINSEN-CHO, SHIBUYA»KU, 23:45:?
TOKYO 150-0045, JAPAN 9 9

Y-361A-0207/PDF
