Extracted text from Rotel CD Player Belt Replacement (Ocr-read)

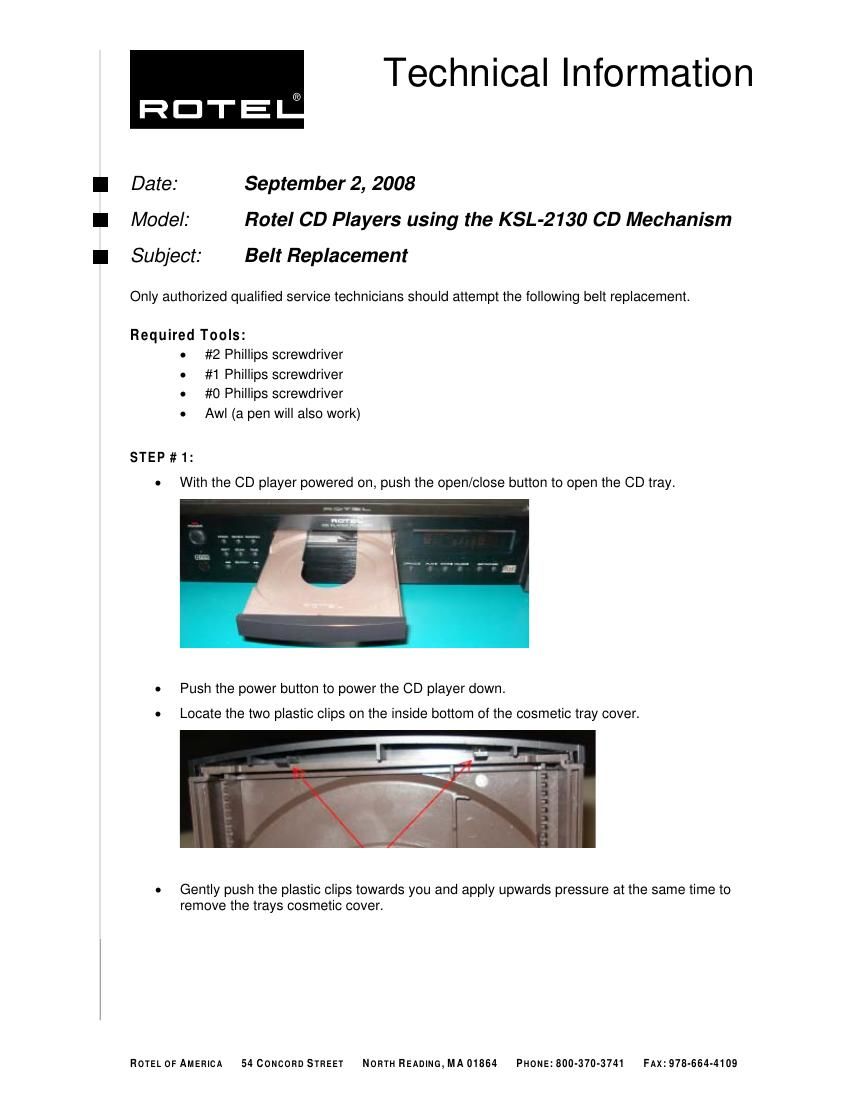

Page 1
9/2/2008 - Page 2
- Push the power button to power the CD player up. If the tray does not go in automatically, close
the tray using the open/close button.
- Push the power button to power the CD player down and unplug it from AC power.
STEP # 2:
- Remove the eight screws holding the top cover in place using a #2 Phillips screwdriver (two on
the top of the rear panel and six on the bottom that secure it to the chassis).
- Slide the top cover towards the back of the CD player and remove the top cover.
Page 2
9/2/2008 - Page 3
STEP # 3:
- Gently remove the two connectors on the right side of the mech from the main circuit board.
- Gently remove the flat ribbon cable towards the rear of the mech from the Main circuit board
by firmly grasping the cable and gently pulling straight up.
- Remove the four screws, using a #2 Phillips screwdriver, from each corner of the mech that
secure the mech to the chassis.
