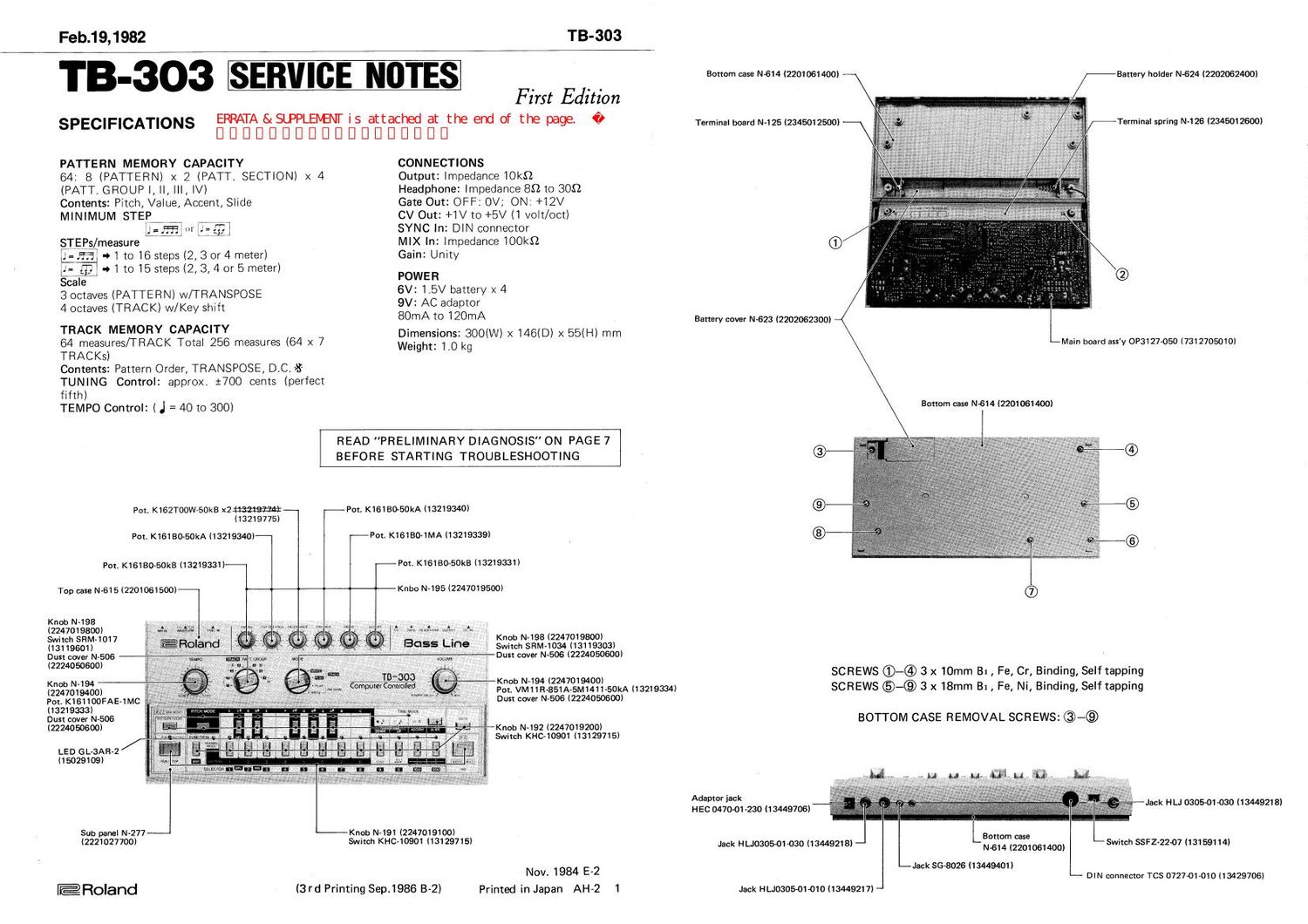

Feb.19,1982 TB- 303
II1E3-EBC):3 :SEFFVIGMEIMIrrEg; [WntEfifimz
ERRATA&SLPPLEI\ENI'is attached at the end of the page. 0
DDDDDDDDDDDDDDDDDD
CONNECTIONS
Output: Impedance IOkQ
Headphone: Impedance 852 to 309
Gate Out: OFF: 0V; ON: +12V
CV Out: +IV to +5V (1 volt/oct)
SYNC In: DIN connector
SPECIFICATIONS
PATTERN MEMORY CAPACITY
64: 8 (PATTERN) x 2 (PATT. SECTION) x 4
(PATT, GROUP I, II, III, IV)
Contents: Pitch, Value, Accent, Slide
MINIMUM STEP
Janie iii i=3?
STEPS/measure MIX In: Impedance IOOkSZ
fl? *1 to 16 steps (2, 3 or 4 meter) Gain: Unity
J: t 15 t 2, 3, 4 5 t
(seal? 4 1 o 5 eps ( or me er) POWER
6V: 1.5V battery x 4
9V: AC adaptor
80mA to 120mA
Dimensions: 300(W) x 146(D) x 55(H) mm
Weight: 1.0 kg
3 octaves (PATTERN) w/TRANSPOSE
4 octaves (TRACK) w/Key shift
TRACK MEMORY CAPACITY
64 measures/TRACK Total 256 measures (64 x 7
TRACKS)
Contents: Pattern Order, TRANSPOSE, DC. *5
TUNING Control: approx 1700 cents (perfect
fifth)
TEMPO Control: (J = 40 to 300)
READ PRELIMINARY DIAGNOSIS" ON PAGE 7
BEFORE STARTING TROUBLESHOOTING
Pot. K1GIBO-SOkA (13219340)
Pot. K161BO-1MA113219339)
I -Pot. K1613050k8 (13219331)
Knbo N-195 (2247019500)
tittii
Pot. K162TO0W»50kB XZflSfifififir
(13219775)
Pot. K161 BO-50kA (13219340)
Pot. K161BO-50kB (13219331 )-
Top case N-615 (2201061500)
Knob N498 _
(2247019800) (A) mm W m. ' K N 198 (2247019300)
Switch SRM-1017 . - nob .
(13119601) _ 13°55 Llfie : Switch SRM-1034 (13119303)
Dust cover N-506 ' WW, Dust cover N-506 (2224050600)
(2224050600) *
Knob N-194 (2247019400)
1 Pot. VM11R-851A-5M1411-50kA (13219334)
Dust cover N-506 (2224050600)
Knob N-194
(2247019400)
Pot. K161100FAE-1MC
(13219333)
Dust cover N-506 1
(2224050500) Knob N492 (2247019200)
Switch KH010901 (13129715)
LED GL-3AR-2
(15029109)
Knob N-191 (2247019100)
Sub panel N-277
Switch KHC-10901 (13129715)
(2221027700)
Nov. 1984 E2
(3rd Printing 800.1986 B-2) Printed in Japan AH-2 1
IE Roland
Bottom case N-614 (2201061400)
Terminal board N-125 (2345012500)
Battery cover N-623 (2202062300)
Battery holder N-624 (2202062400)
Terminal spring N-126 (2345012600)
Main board assy OP3127-050 (7312705010)
Bottom case N-614 (2201061400)
SCREWS ®-@ 3 x 10mm BI, Fe, Cr, Binding, Self tapping
SCREWS ©-© 3 x 18mm 31 , Fe, Ni, Binding, Self tapping
Adaptor jack
HEC 0470-01 -230 (13449706)
Jack H LJ0305-01030 (13449218)
Jack HLJ0305-01 -010 (13449217)
BOTTOM CASE REMOVAL SCREWS: ©-©
Jack HLJ 0305-01 -030 (13449218)
Bottom case
N-614 (2201061400) Switch SSFZ-22-07 (13159114)
Jack 36-8026 (13449401 )
DIN connector TCS 072701-010 (13429706)
