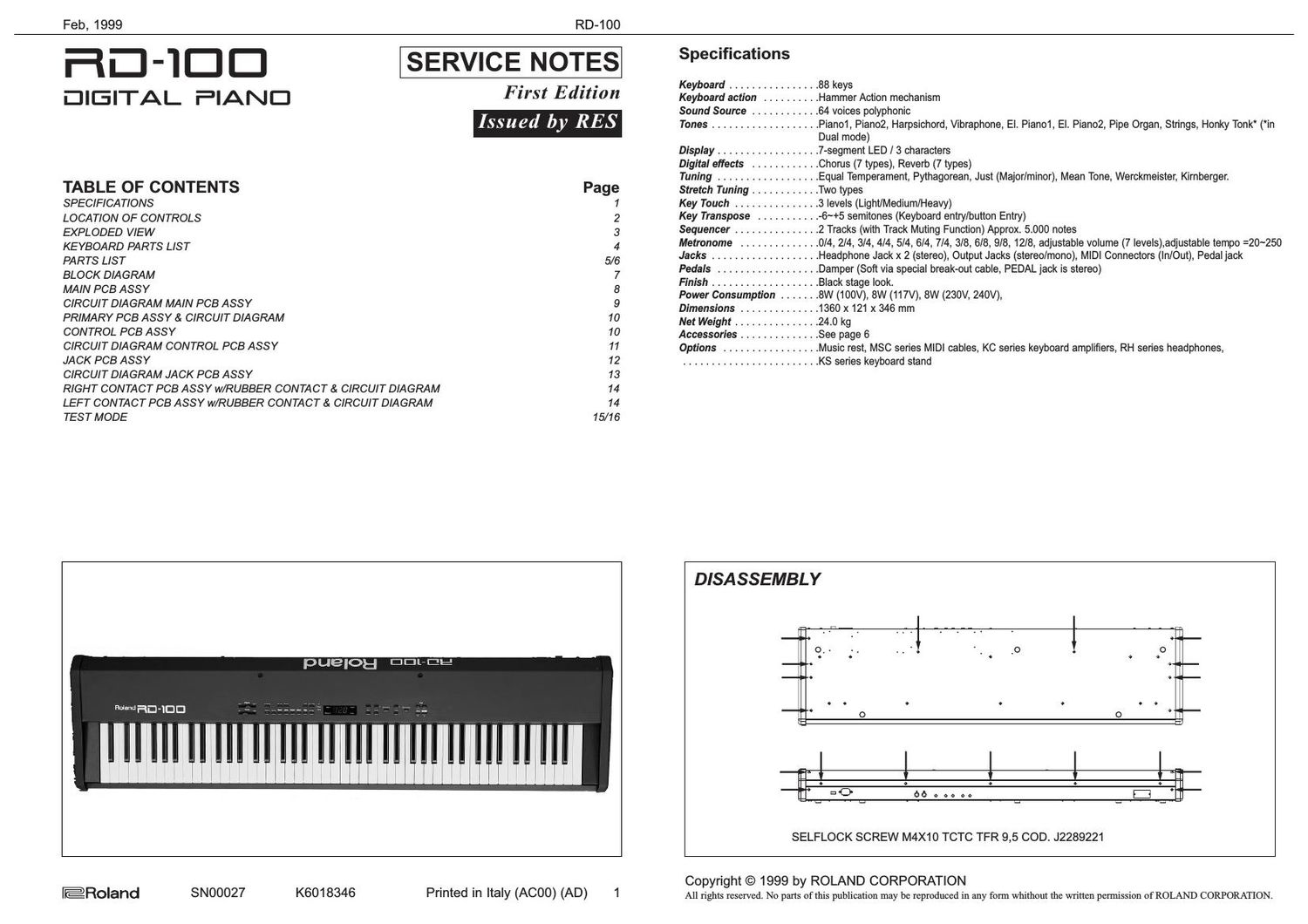

Page 1
Feb, 1999
FIEl-TCICI
DIGITAL F'IANIII
RD-100
SERVICE NOTES
First Edition
Issued by RES
TABLE OF CONTENTS Page
SPECIFICATIONS 1
LOCATION OF CONTROLS 2
EXPLODED VIEW 3
KEYBOARD PARTS LIST 4
PARTS LIST 5/6
BLOCK DIAGRAM 7
MAIN PCB ASSY 8
CIRCUIT DIAGRAM MAIN PCB ASSY 9
PRIMARY PCB ASSY & CIRCUIT DIAGRAM 10
CONTROL PCB ASSY 10
CIRCUIT DIAGRAM CONTROL PCB ASSY 11
JACK PCB ASSY 12
CIRCUIT DIAGRAM JACK PCB ASSY 13
RIGHT CONTACT PCB ASSY W/RUBBER CONTACT & CIRCUIT DIAGRAM 14
LEFT CONTACT PCB ASSY w/RUBBER CONTACT & CIRCUIT DIAGRAM 14
TEST MODE 15/16
WHO-TDD
pueloH DBL-DE
@Roland SN00027
K6018346 Printed in Italy (ACOO) (AD) 1
SpeCIfications
Keyboard ................ 88 keys
Keyboard action .......... Hammer Action mechanism
Sound Source ............ 64 voices polyphonic
Tones ................... Pianoi, Pian02, Harpsichord, Vibraphone, El. Piano1, El, Piano2, Pipe Organ, Strings, Honky Tonk* (*in
Dual mode)
Display .................. 7-segment LED / 3 characters
Digital effects ............ Chorus (7 types), Reverb (7 types)
Tuning .................. Equal Temperament, Pythagorean, Just (Major/minor), Mean Tone, Werckmeister, Kirnberger.
Stretch Tuning ............ Two types
Key Touch ............... 3 levels (Light/Medium/Heavy)
Key Transpose ........... -6~+5 semitones (Keyboard entry/button Entry)
Sequencer ............... 2 Tracks (with Track Muting Function) Approx. 5.000 notes
Metronome .............. 0/4, 2/4, 3/4, 4/4, 5/4, 6/4, 7/4, 3/8, 6/8, 9/8, 12/8, adjustable volume (7 levels),adjustable tempo =20~250
Jacks ................... Headphone Jack x 2 (stereo), Output Jacks (stereo/mono), MIDI Connectors (In/Out), Pedal jack
Pedals .................. Damper (Soft via special break-out cable, PEDAL jack is stereo)
Finish ................... Black stage look.
Power Consumption ....... 8W (100V), 8W (117V), 8W (230V, 240V),
Dimensions .............. 1360 x 121 x 346 mm
Net Weight ............... 24.0 kg
Accessories .............. See page 6
Options ................. Music rest, MSC series MIDI cables, KC series keyboard amplifiers, RH series headphones,
........................ KS series keyboard stand
DISA SSEMBLY
SELFLOCK SCREW M4X1O TCTC TFR 9,5 COD. J2289221
Copyright © 1999 by ROLAND CORPORATION
All rights reserved. No parts of this publication may be reproduced in any form whithout the written permission of ROLAND CORPORATION.
