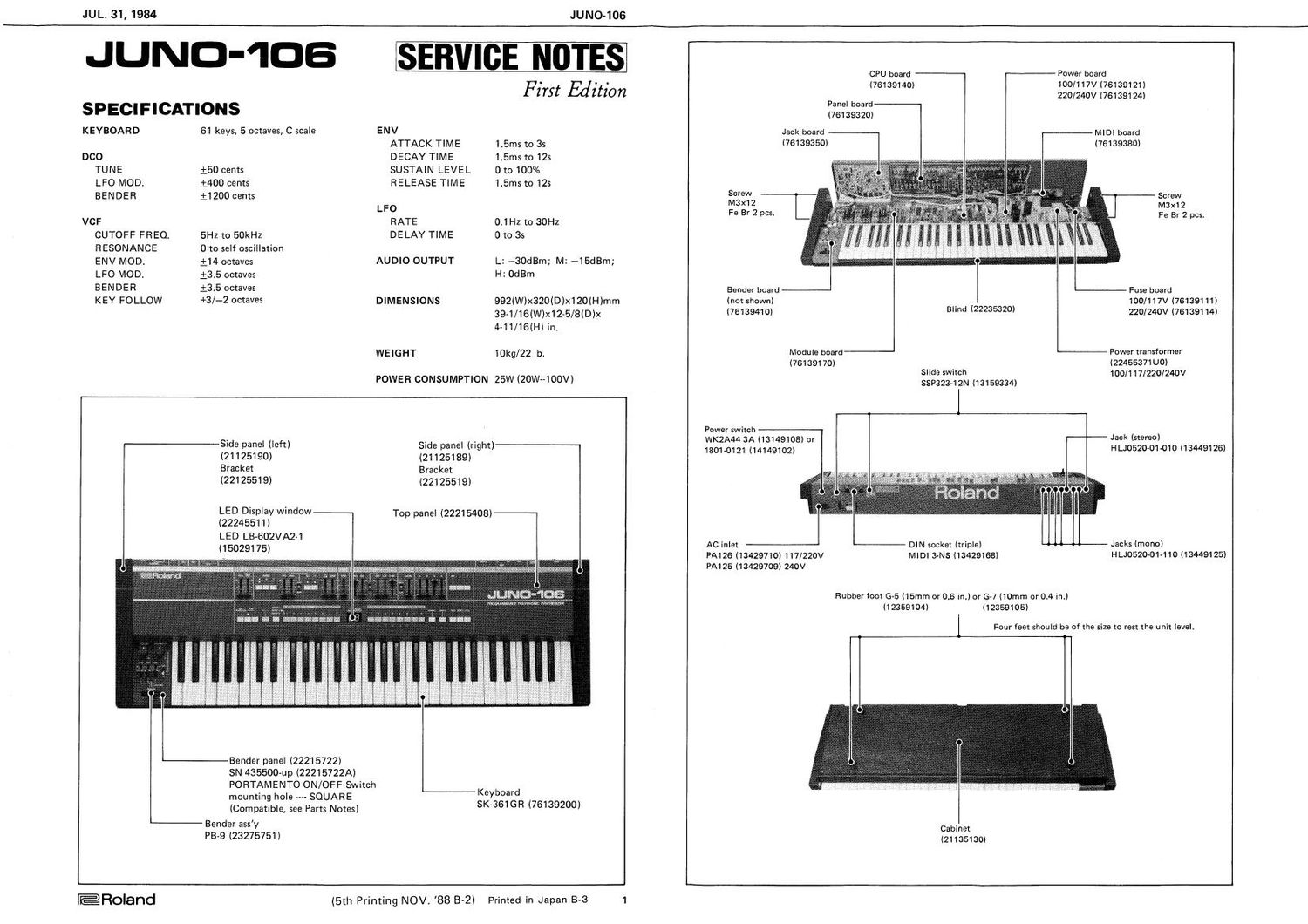

JUL. 31,1984
JUNO-106
JUNO-106
SERVICE NOTES
First Edition
SPECIFICATIONS
KEYBOARD 61 keys, 5 octaves, C scale ENV
ATTACK TIME 1.5ms to 35
D60 DECAY TIME 1.5ms to 125
TUNE 150 cents SUSTAIN LEVEL 0 to 100%
LFO MOD. 1400 cents RELEASE TIME 1.5ms to 12s
BENDER 11200 cents
LFO
VCF RATE 0.1 Hz to 30Hz
CUTOFF FREQ. 5H2 to 50kHz DELAY TIME Oto 3s
RESONANCE 0 to self oscillation
ENV MOD. 114 octaves AUDIO OUTPUT L: -30dBm; M: -15dBm;
LFO MOD. 13.5 octaves H: OdBm
BENDER 13.5 octaves
KEY FOLLOW +3/-2 octaves DIMENSIONS 992(W)x320(D)x120(H)mm
39-1/16(W)x12-5/8(D)x
4-11/16(H) in.
WEIGHT 10kg/22 lb.
POWER CONSUMPTION 25W (20W--100V)
Side panel (left)
(21125190)
Bracket
(22125519)
LED Display window
(22245511)
LED LB-602VA2-1
(15029175)
Bracket
(22125519)
Side panel (right)
(21125189)
Top panel (22215408)
Bender panel (22215722)
SN 435500-up (22215722A)
PORTAMENTO ON/OFF Switch
mounting hole SQUARE
(Compatible, see Parts Notes)
Keyboard
SK-361 GR (76139200)
Bender assy
PB-9 (23275751)
Panel board
(76139320)
Jack board
(76139350)
Screw
M3x12
Fe Br 2 pcs.
Bender board
(not shown)
(76139410)
Module board
(761391 70)
CPU board
(76139140)
Power board
100/117V176139121)
22o/240v (76139124)
MIDI board
(76139380)
Screw
M3x12
Fe Br 2 pcs.
Fuse board
100/117v (76139111)
Blind (22235320) 220/240V (76139114)
Power transformer
(22455371 U0)
Slide switch 100/1 17/220124ov
SSP323-12N (13159334)
Power switch
WK2A44 3A (13149108) or
1801-0121 (14149102)
AC inlet
PA126 (13429710) 117/220V
PA125 (13429709) 240V
Jack (stereo)
H U0520-01-010 (13449125)
Jacks (mono)
H LJ0520-01-110 (13449125)
DIN socket (triple)
M)Dl 3~NS (13429163)
Rubber foot G-5 (15mm or 0.6 in.) or 6-7 (10mm or 0.4 in.)
(12359104) (12359105)
Four feet should be of the size to rest the unit level.
Cabinet
(21135130)
IE Roland
(5th Printing NOV. '88 32) Printed in Japan B-3
JUNO-106
JUL. 31, 1984
runs:
1 4 (Ll /l
5 ° 0
51145111511 lmm
3" 2P
m root 5"
""ch'f"; 2335. 2 . . 5 a 1 .
m El III
h-Fld-ZP-fi 1P 1P )--3P-+~3P-+-2P-l
Button Part No.
WHITE 1P 22475593
W 2P 22475590
3P 22475587
B LU E 1P 22475594
B 2? 224 75591
SP 22475588
ORANGE 1P 22475595
0 2P 22475592
3P 22475589
All switches: KHH10910 (13169633)
1
]--3 P-+-3 P-+-2P--| 1P
2 a 4
orrr u
|-1-;|+2P->(
MAM/Al wan: saws mm tom
.57.. Doc
1P)<-3P->(
©®®®®®O®®®®®
© mm
m new
'iANsPOSivd»: mum Mow
5w! mm to.»
@_22? W. lii_@
CI:I:| l:l Cl |:| m1
C3) C) C) <9
.1 v/ PartNo.
®- m w. 1 KNOB 22475324
0 © POT 13339445 EWA-NKO-D15B54 50KB
°" 2 KNOB 22475324
um)..- POT 13339339 $2018P405-50KB 50KB
W 3 KNOB 22475326
@ E POT 13219756 EWJ-EJAP20B14 10KBx2
4 KNOB 22475326
POT 13219241 VEVH-5XAP20354 50KB
5 BENDER 23275751 PBS
6 LEVER sw 13139137 SLE622-18P (SN 380100-425499)
5 LEVER sw 13139152 SLE622-QC (SN 435500- )
KNOB 22475336
7 KNOB 22475325
SLIDE sw 13159147 SSY022-6N
a KNOB 22475324
SLIDE sw 13159506 SW3028-4
9 LED 15029103 TLR-124 (red)
10 LED 15029105 TLG-124A (green)
11 LED 15029175 LB-602VA2-1
PARTS CHANGE NOTES
CPU |C1 CPU BOARD
I029 MODULE BOARD
Various CPUs used on both boards
1. uPD781OG ........... CPU Board, Module Board
without internal ROM
2. uPD7811G-033/037/076 .CPU Board, Module Board
with internal ROM that
contains program for dif-
ferent model
3. pPD7811G-102-### . . . .with internal ROM that
contains program dedicat-
ed to Module Board of
JUNO-106
4. uPD7811G-101-## . . . .with internal ROM that
contains program dedicat-
ed to CPU Board of
JUNO-106
CPUs of 1 and 2 need an external ROM:
CPU Board - 102
Module Board - |C37
CPU of 3 or 4 can replace existing CPU regardless of pre-
sence or absence of ROM. Although both CPUs do not
require external ROM, it is harmless for their perfor-
mance.
WAVE GENERATOR
I65 4, 8, 12 MODULE BOARD
Three versions used on the board
1. M05534 ..... incomplete 2-channel
2. MCS534-1 . . . .1-channel
3. M05534A . . . .complete 2-channel
When replacing existing MC5534 series, use only
MC5534A for better performance and easier job.
NOTEszo 105 of 1 or 2 are accommodated together in
the same mounting holes which are originally
designed for one 1C.
VCF/VCA le 3, 5, 7, 9 MODULE BOARD
Change from A1QH800170 to A1 OH80017A
Compatible with each other. However, to avoid timbre
difference among voices, mixing use of two versions in a
unit is not recommended.
ICs 16, 19, 20 MODULE BOARD
Both TL072CP and TL082CP can be used.
ICS 23, 24, 26 MODULE BOARD
TC4051B (Toshiba) cannot be used.
PORTAMENTO SWITCH/ SLOT
BENDER PANEL
SN 435500-up
Switch ......... from SLE-622~18P (SLE622-QC with
an aluminum sleeve) to SLE622-90
and synthetic knob (22475336).
This change is to reduce the chance
of RAM memory from being shifted
by static charges entering through
the switch.
Bender Panel . . . .For accommodating above-mention-
ed square knob, mounting slot in the
Bender Panel is also squared.
RUBBER FEET CABINET
From 6-5 to 6-7
6-5 ........... H: 15mm (0.6 in.)
G7 ........... H: 10mm (0.4 in.)
Also diameter is different between the two.
To rest the unit level use four of a size.
JAPANESE VERSION ONLY
SN 418100-up
Transformer ..... change to 22455380N0 100V only.
SN 419000-up
Power Cable ..... change from detachable Cord Set
(13439825) to Non-detachable cable
(13439801) which requires Cord
Holder (22195549) and Bushing
instead of AC Inlet.
