ROLAND HP 555G

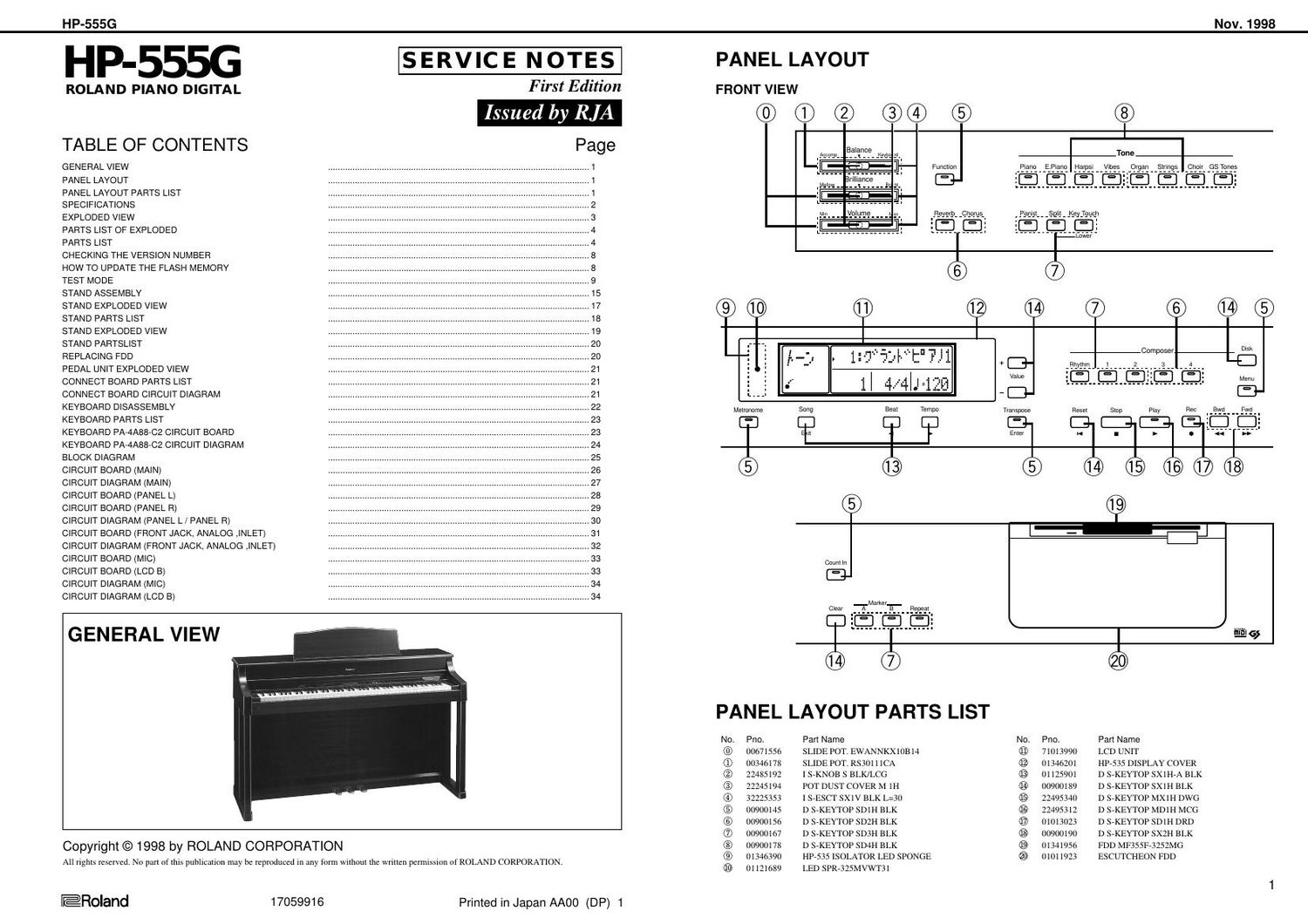

Page 1

HP-555GNov. 1998 2 HP-555G :ROLAND DIGITAL PIANO l Keyboard :88 keys Hammer action mechanism l TouchSensitivity :Preset:3 Levels, User Programs:60 levels l Keyboard Mode :Whole :Split(adjustable split point) :Dual :Pianist :Manual Drum/SFX Conforms to GM/GS l Max.Polyphony :64 voices l Tones :8 groups 378 variations (incl.8 drum sets,1 SFX set) l Temperament :7 types, selectable tonic l Stretched Tuning :2 types l Master Tuning :415.3 Hz ~ 466.2 Hz (0.1 Hz Step) l Transpose :Key Transpose (-6 ~ +5 Half-steps) :Playback Transpose (-24 ~ +24 Half-steps) l Effects :Reverb(8 types / 10 levels), Chorus(8 types / 10 levels) :Sympathetic Resonance(10 levels) l Music Styles :22 Pianist Styles l Control :Start/Stop :Intro/Ending l Metronome :Beat: 2/2,0/4,2/4,3/4,4/4,5/4,6/4,7/4,3/8,6/8,9/8,12/8 :Volume:10 levels :Metronome Pattern:11 patterns :Sounds:4 types l Tracks :5/16 tracks l Song :1 song l Note Storage :Approx. 30,000 notes l Tempo :Quarter note = 20 to 250 l Resolution :120 ticks per quarter note l Recording Method :Realtime(Replace, MIX, Auto Punch In, Manual Punch In, Loop, Tempo) :Beat Map l Edit :Copy / Quantize / Delete, Insert / Erase, Transpose / Part Exchange / Note Edit / PC Edit l Rhythm Pattern :30 patterns l Control :Song Select / Reset / Stop / Play / Rec / Bwd / Fwd / AllSongPlay / Track Select / PlaybackBalance / Marker Set, Repeat / Count In SPECIFICATIONS 3.5 inch Micro Floppy Disk Drive l Disk Format :720K byte (2DD) / 1.44M byte (2HD) l Song :99 Songs l Note Storage :Approx.120,000 notes (2DD) :Approx.240,000 notes (2HD) l Playable Software :Standard MIDI File (0/1) :Roland Original Format (i-format) l Save :Standard MIDI File (Format 0) :Roland OriginalFormat (i-format) l Rated Power Output :30 W x 2 l Speakers :20cm x 2 ,5cm x 2 l Display :Beat Indicator :Large custom LCD :Bouncing Ball l Language :English / Japanese l Lyric :Yes(Built-in Display, MIDI Out) l Control :Volume :Microphone Volume :Microphone Echo :Brilliance l Pedals :Damper(half-pedal recognition) :Soft(half-pedal recognition / Function assignable) :Sostenuto(Function assignable) l Other Functions :Panel Lock l Connectors :Output jacks (Stereo/Mono) :Input jacks (Stereo/Mono) :Microphone jack(with echo) :Headphone jack x2 (Stereo) :MIDI IN connector x2 / MIDI OUT connector :Computer connector :Pedal Connector (8 pin DIN type) l Power supply :AC117V/AC230V/AC240V l PowerConsumption :90W(117V)/72W(230V)/72W(240V) l Cabinet finish :Satin Mahogany l Dimensions(including Piano Stand) :1,445 mm(W) x 528 mm(D) x 920 mm(H) :56-15/16(W) x 20-3/4 (D) x 36-1/4(H) inches l Weights(including piano Stand) :69.8 kg / 153 lbs 15 oz l Accessories :Owner's manual English (71121034) :Power cord 100V : (13499219) 117V : (13499220) 230V : (13499221) 240V : (13499222) :Euro converter plug(230V only) (00905234) :Pianist Panel Sheet English (40239445)

Page 2

HP-555GNov. 1998 3 A B C D E F G H I J K L M N O P Q R S T U V EXPLODED VIEW NOTE The cushion under the UPPER BLIND H is #01452501 UPPER BLIND CUSHION.
