ROLAND HP 535

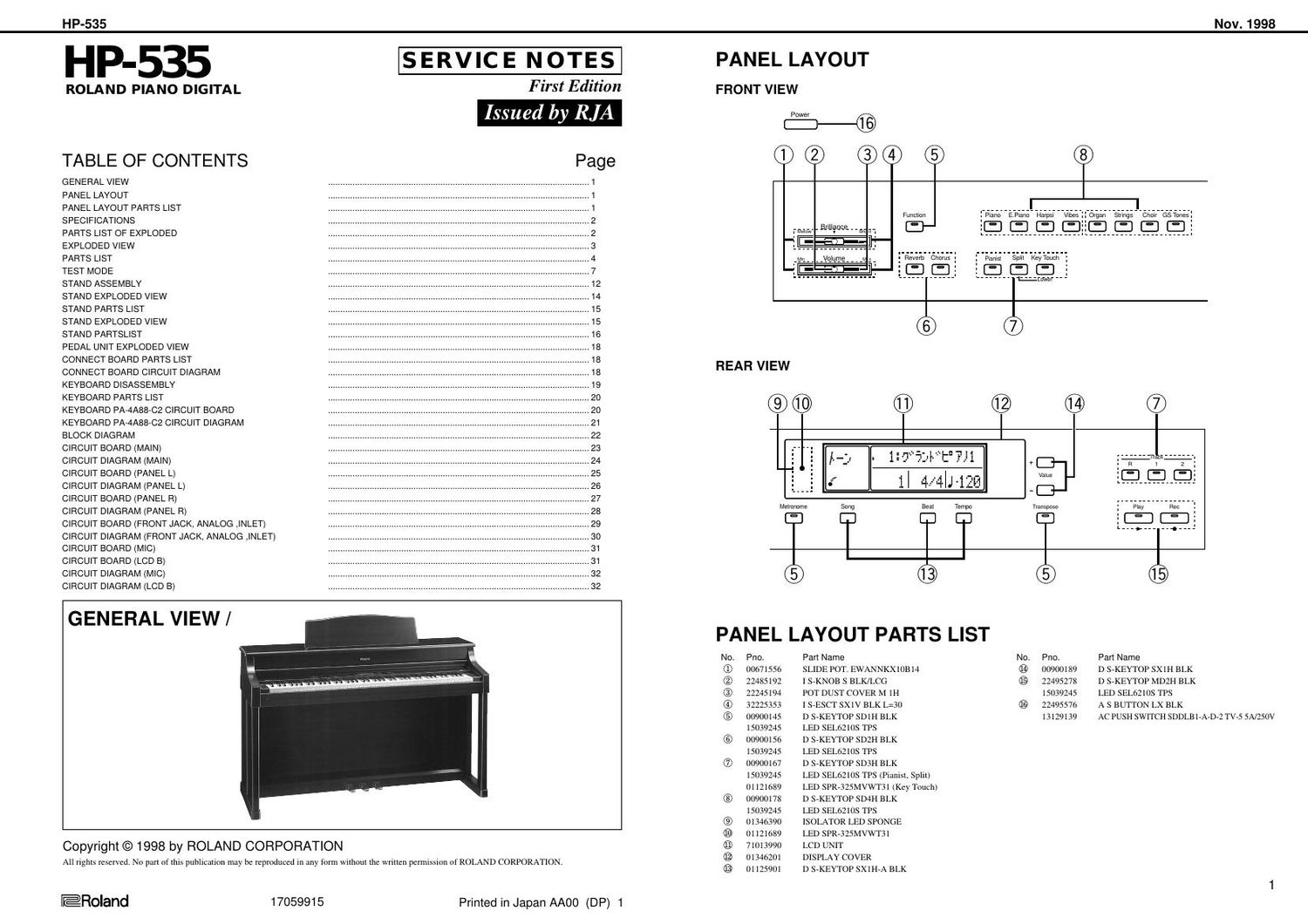

Page 1

HP-535Nov. 1998 2 HP-535 :ROLAND DIGITAL PIANO l Keyboard :88 keys Hammer action mechanism l TouchSensitivity :Preset:3 Levels, User Programs:60 levels l Keyboard Mode :Whole :Split(adjustable split point) :Dual :Pianist :Manual Drum/SFX Conforms to GM/GS l Max.Polyphony :64 voices l Tones :8 groups 263 variations (incl.8 drum sets,1 SFX set) l Temperament :7 types, selectable tonic l Stretched Tuning :2 types l Master Tuning :415.3 Hz ~ 466.2 Hz (0.1 Hz Step) l Transpose :Key Transpose (-6~+5 Half-steps) :Playback Transpose (-6~+5 Half-steps) l Effects :Reverb(10 levels), Chorus(10 levels) :Sympathetic Resonance(10 levels) l Music Styles :22 Pianist Styles l Control :Start/Stop :Intro/Ending l Metronome :Beat: 2/2,0/4,2/4,3/4,4/4,5/4,6/4,7/4,3/8,6/8,9/8,12/8 :Volume:10 levels :Metronome Pattern:11 patterns :Sounds:4 types l Tracks :3 tracks l Song :1 song l Note Storage :Approx. 30,000 notes l Tempo :Quarter note = 20~250 l Resolution :120 ticks per quarter note l Control :Song Select, Play/Stop, Rec, AllSongPlay :Track Select, PlaybackBalance, CountIn l Rated Power Output :30 W x 2 l Speakers :20cm x 2 ,5cm x 2 l Display :Beat Indicator :Large custom LCD, Bouncing Ball l Language :English / Japanese l Control :Volume :Microphone Volume, Microphone Echo :Brilliance l Pedals :Damper(half-pedal recognition) :Soft(half-pedal recognition) :Sostenuto(Function assignable) SPECIFICATIONS l Other Functions :Panel Lock l Connectors :Output jacks (Stereo/Mono) :Input jacks (Stereo/Mono) :Microphone jack(with echo) :Headphone jack x2 (Stereo) :MIDI IN connector x2 / MIDI OUT connector :Computer connector :Pedal Connector (8 pin DIN type) l Power supply :AC117V/AC230V/AC240V l PowerConsumption :90W(117V)/68W(230V)/68W(240V) l Cabinet finish :Satin Mahogany l Dimensions(including Piano Stand) :1,445 mm(W) x 528 mm(D) x 920 mm(H) :56-15/16(W) x 20-3/4 (D) x 36-1/4(H) l Weights(including piano Stand) :69.2 kg / 152 lbs 9 oz l Accessories :Owner's manual English (71015401) :Power cord 100V: (13499219) 117V: (13499220) 230V: (13499221) 240V: (13499222) :Euro converter plug (230V only) (00905234) PARTS LIST OF EXPLODED No. Pno. Part Name q01346167 TOP BOARD w00900478 TOP BOARD HOLDER e01346190 MUSIC REST r22325182 MR HINGE ASSY t01234656 HINGE CUSHION A y01452490 MUSIC STOPPER u00239367 SHOULDER SCREW 1165 i01346256 UPPER HOLDER o01346234 UPPER BLIND !071011878 PAB3 INLET 100/117V !100900534 BRACKET !201455767 END BLOCK L !301344467 SW HOLDER !471011867 PAB3 FRONT JACK BRD !513129139 AC PUSH SWITCH !622495576 A S-BUTTON LX BLK !771012234 SIDE PANEL L ASSY !801346178 LID BOARD !971015512 LID BLIND ASSY @001017134 LID RAIL STOPPER @101450212 PWR TRANS 01450212 UNIVERSAL @271121767 PAB3 ANALOG PHANTOM @371018067 MAIN BOARD ASSY @471012223 SIDE PANEL R ASSY @501455778 END BLOCK R @671011901 MIC BOARD ASSY @701349778 FULL-RANGE PD-20103A3 @800904145 TW HOLDER @900904090 TWEETER TW-5104A #000900467 PWB HOLDER #101346245 LOWER BLINDNo. Pno. Part Name #201346212 FRONT PANEL #300900289 CENTER HOLDER #400900567 PANEL HOLDER FP A40011123 BINDING TAPTITE B 4 x 8 BZC B40011312 BINDING TAPTITE P 3 x 8 BZC C40012178 TPA BIND 3 x 12 BZC D40012145 TPA TRUSS 4 x 14 BZC E40012490 PAN TAPTITE P 4 x 10 BZC F40011323 PAN TAPTITE P 3 x 10 BZC G40011056 BINDING TAPTITE B 3 x 6 ZC H40128512 BINDING TAPTITE B WH 4 x 25 x 20 BZC W=11 I40011101 BINDING TAPTITE B 3 x 8 BZC

Page 2

HP-535Nov. 1998 3 A B C D E F G H I J K L M N O P Q R S T U V EXPLODED VIEW NOTE The cushion under the UPPER BLIND H is #01452501 UPPER BLIND CUSHION.
