ROLAND G 707

Page 2

G-707

NOV. 1984

CHECKING AND ADJ USTING

Before checking and adjusting a given guitar controller,
first always tune the guitar to playing pitch with a full
set of strings will be used on the guitar.

Check the guitar in the order described below and adjust
as necessary.

STRING HEIGHT

1-1. With a string pressed at the 1st and the 18th frets
check the distance between the 8th fret top and
bottom of the string: it must be 0.1 -0.3mm (0.004
- 0.012 in).

1-2. Adjust the truss rod as necessary.

i STRING i
If NECK \7 let

2 BRIDGE

2-1. With all strings open measure the distance between
bottom of the 1st string and the top of the 14th
fret. It must be 1.5mm (1/16 in).

2-2. Also check for the 6th string in the same manner: it
must be 2.0mm (0.08 in).

2-3. If not, adjust the height of the bridge as below.

24. Loosen screws B (not found on early products).
Then turn screws A with a hex wrench for the spe-
cified clearances.

2-5. If the string comes in touch with a pickup(s), lower
the pickup.

2-6. Tighten screws B.

©

® ®

Llflflfllill

® Early units lack screws®.

3 DIVIDEDPIC P

At least three points should have the specified clearance
above the pickup head.

However, if all the points cannot meet the values, pri<
ority is given to the closest one to allow for 0.5mm
minimum with sacrification of the others which will
have the chance of being comensated for in the later
adjustment (PICKUP SENSITIVITY).

3-1. With the all strings pressed at the 22nd fret, first
adjust the pickup height to obtain the distances
shown in Fig. 4 by turning screws C.

3-2. Check the other strings for height from the corres-
ponding head. if there is a gap which is less than 0.5
mm, lower the pickup at either side.

STRING
< 0.5mm (0.02 in) at lst string
0.8mm (0.03 in) at 6th string
Fig.4
©6t°h o o o o lit©
O

[24.5%
E §__

Fig. 5

4. liUMrBUCKlNG PICKUP

4-1. With the 1st string pressed at the 22nd fret, check .

the distance between the pickup top and the
bottom of lst string. It must be 2.5mm (0.1 in).

4-2. In the same manner check the 6th string for the
clearance. it must be 3.0mm (0.12 ini.

4-3. Adjust the height of the pickup for the above clear-
ances.

No checks are required for the 3rd to 5th strings.

<-2.5mm (0.iin) at lst string

7 3.0mm (0.l2in) at 6th string
Fig.6

DIVIDED PICKUP SENSITIVITY

Sensitivity of the divided pickup should be adjusted
whenever it is a replacement or seems to have been af-
fected by:
Changing or adjusting of Neck, Fingerboard, Bridge
or Truss rod, etc.
* Missetting of sensitivity itself.

CAUTION This adjustment must be done only after
completion of previously mentioned adjustments and
tuning of both G-707 and GRv700..

1. Expose the trimmer bay by removing trimmer cap
from the rear panel of G-707.

2. Set the trimmers to the center position.

3. Set G-707 MODE to ]I[.

4. Connect G-707 to the (SR-700 and select a preset
which reproduces a fast attack with a steady pitch.
Press DYNAMICS VGA.

5. Give the hardest pluck which may be given in normal
playing and adjust each trimmer for the maximum
volume yet having firm pitch.

6. Listen individual strings for detecting the softest one
and adjust the remaining with the corresponding
trimmiers for even outputs.

-n-.-uocnouucouoo..o..-on.nono.no.n.no.unnoonunuunu

TREMOLO ARM

CAUTION Tremolo arm must be adjusted with a full
set of strings to be used installed on the guitar and tuned
to playing pitch.

1. Adjust worm screw D so that the edge F of rolling
tailpiece is flush with top surface E of the base. (Also
see Fig. 2.)

Setting the edge above the base will result in string
breakage during tremolo play, if excessively stroked.

® (D
j j BASE
l W
(B
O
ROLLING TAILPIECE Fig.7

ELIMINATING BUZZ AT BRIDGE SADDLE

If there is a buzzing saddle at the bridge, it can be silenc-
ed.

With the guitar ready for playing;

1. Prepare alchohol soluble adhesive of a kind used for
shake-proofing screws, nut, etc. Thin adhesive to
50%.

2. Using toothpick or the like, apply a drop of adhesive
around lower outside of the saddle to fill void
between bridge.

3. Allow for 10 minutes for curing prior to further

work.
oe0aone...eItoe-toocoooooto-ooaoaoeaoeooocooooceocce-ocoeoo-eoeoooo

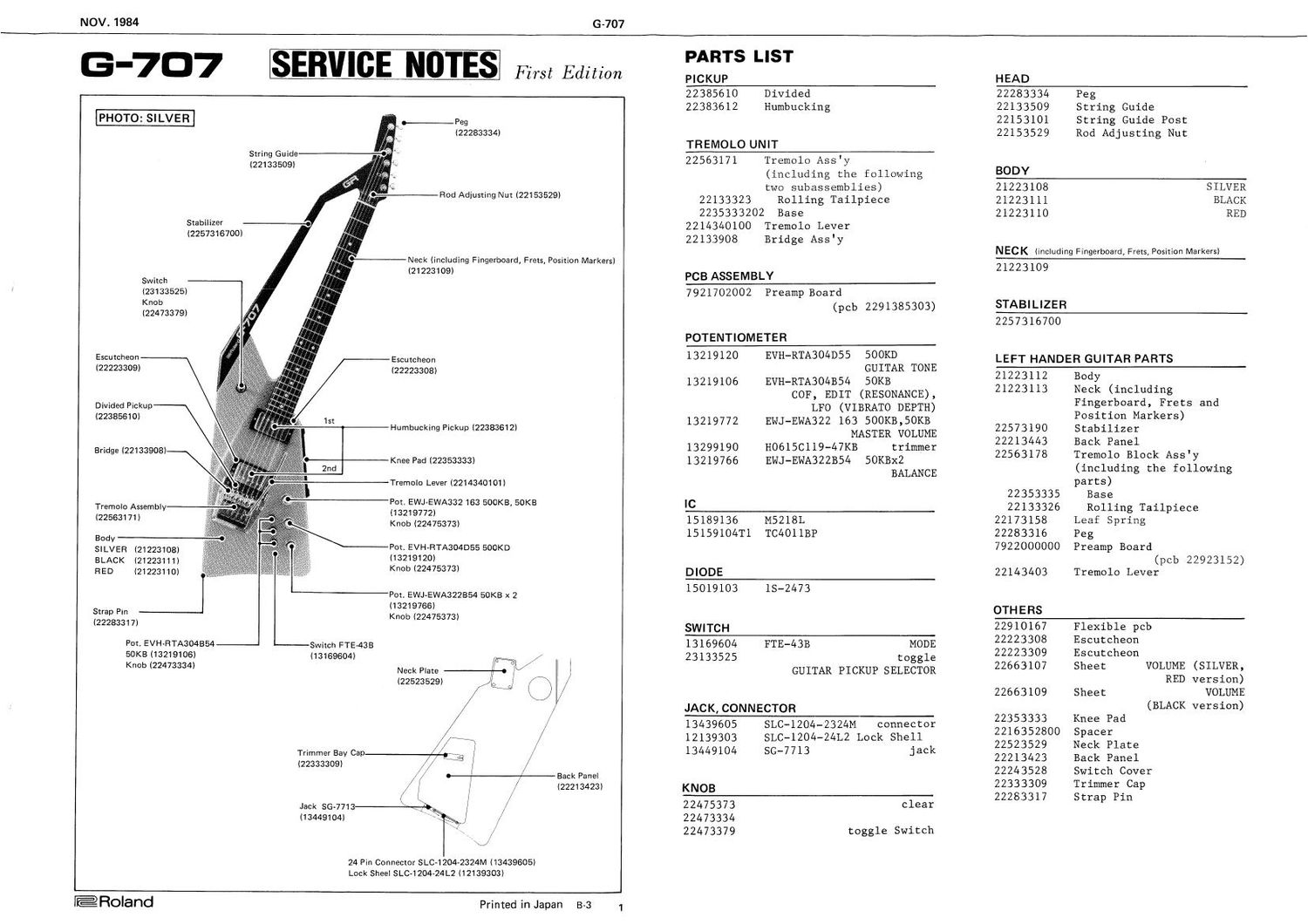

Location Flt";b" Description
1 21223108 Gultar Bodv
2 21223109 Neck, Fingerboard, Frets and Position Markers
3 22573167 Stabilizer
4
5
G
7
8
9
10
1 1 22283334 P99
12 Peg Nut
18 Peg Washer
14 22133509 String Gulde
15 22153101 String Gulde Post
16 221513529 Rod Adjusting Nut
17 22168528 Spacer
18 22353333 Knee Pad
19 22475373 Knob
20 22478334 Knob
21 22473379 Knob
22 22663107 Volume Sheet (SILV, HED)
22663109 Volume Sheet (BLK)
23 22523529 Neck Plate
24 12139303 Lock Shall SLC-1240»24L2
