Mar, 1997 ep-85
First Edition

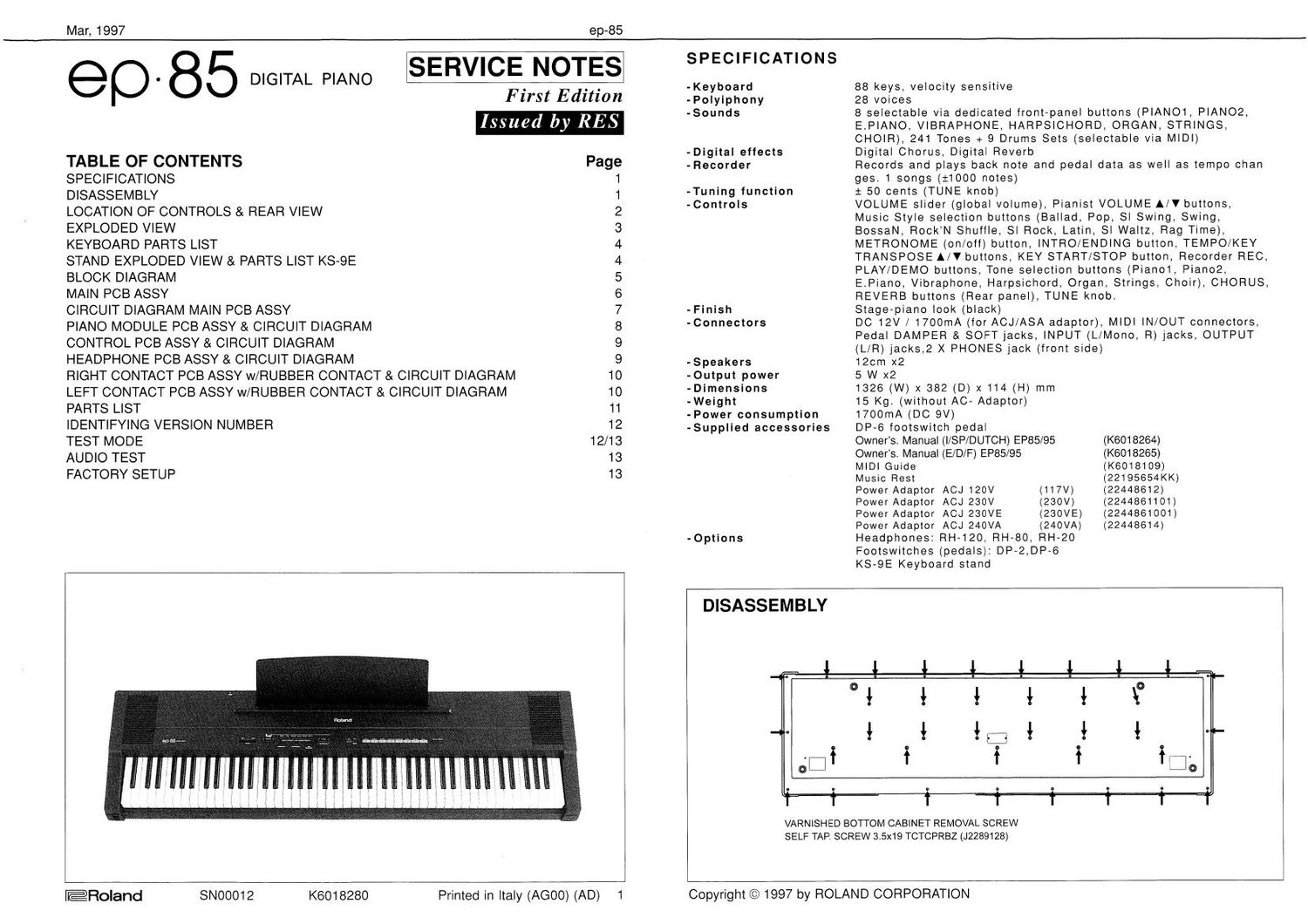

80 . 85 DIGITAL PIANO SERVICE NOTES
SPECIFICATIONS
-Keyboard
- Polyiphony
88 keys, velocity sensitive
28 voices
Issued by RES
-Sounds
-Digita| effects
-Recorder
-Tuning function
8 selectable via dedicated front-panel buttons (PIANO1, PIAN02,
E.PIANO, VIBRAPHONE, HARPSICHORD, ORGAN, STRINGS,
CHOIR), 241 Tones + 9 Drums Sets (selectable via MIDI)
Digital Chorus, Digital Reverb
Records and plays back note and pedal data as well as tempo chan
gas 1 songs (11000 notes)
1 50 cents (TUNE knob)
TABLE OF CONTENTS Page
SPECIFICATIONS 1
DISASSEMBLY 1
LOCATION OF CONTROLS & REAR VIEW 2
EXPLODED VIEW 3
KEYBOARD PARTS LIST 4
STAND EXPLODED VIEW & PARTS LIST KS-9E 4
BLOCK DIAGRAM 5
MAIN PCB ASSY 6
CIRCUIT DIAGRAM MAIN PCB ASSY 7
PIANO MODULE PCB ASSY & CIRCUIT DIAGRAM 8
CONTROL PCB ASSY 81 CIRCUIT DIAGRAM 9
HEADPHONE PCB ASSY & CIRCUIT DIAGRAM 9
RIGHT CONTACT PCB ASSY w/RUBBER CONTACT & CIRCUIT DIAGRAM 10
LEFT CONTACT PCB ASSY w/RUBBER CONTACT & CIRCUIT DIAGRAM 10
PARTS LIST 11
IDENTIFYING VERSION NUMBER 12
TEST MODE 12/13
AUDIO TEST 13
FACTORY SETUP 13
hufllihiiiiihli
@Roland SN00012 K6018280 Printed in Italy (AGOO) (AD) 1
-Controls VOLUME slider (global volume), Pianist VOLUME A/V buttons,
Music Style selection buttons (Ballad, Pop, SI Swing, Swing,
BossaN, RockN Shuflle, SI Rock, Latin, SI Waltz, Rag Time),
METRONOME (on/off) button, INTRO/ENDING button, TEMPO/KEY
TRANSPOSE A/V buttons, KEY START/STOP button, Recorder REC,
PLAY/DEMO buttons, Tone selection buttons (Piano1, Pian02,
E.Piano, Vibraphone, Harpsichord, Organ, Strings, Choir), CHORUS,
REVERB buttons (Rear panel), TUNE knob.
-Finish Stage-piano look (black)
-Connectors DC 12V/1700mA(forACJ/ASA adaptor), MIDI lN/OUT connectors,
Pedal DAMPER & SOFT jacks, INPUT (L/Mono, Ft) jacks, OUTPUT
(L/R) jacks,2 X PHONES jack (front side)
-Speakers 12cm x2
-Output power 5 W x2
-Dimensions 1326 (W) x 382 (D) x 114 (H) mm
-Weight 15 Kg. (without AC- Adaptor)
- Power consumption
- Supplied accessories
1700mA (DC 9V)
DP-6 footswitch pedal
Owners. Manual (I/SP/DUTCH) EP85/95 (K6018264)
Owners. Manual (E/D/F) EP85/95 (K6018265)
MIDI Guide (K6018109)
Music Rest (22195654KK)
Power Adaptor ACJ 120V (117V) (22448612)
Power Adaptor ACJ 230V (230V) (2244861101)
Power Adaptor ACJ 230VE (230VE) (2244861001)
Power Adaptor ACJ 240VA (240VA) (22448614)
-Options Headphones: RH-120, RH-80, RH-20
Footswitches (pedals): DP-2,DP»6
KS-9E Keyboard stand
DISASSEMBLY
VARNISHED BOTTOM CABINET REMOVAL SCREW
SELF TAP. SCREW 3.5X19 TCTCPRBZ (J2289128)
Copyright © 1997 by ROLAND CORPORATION
ep-85 Mar, 1997
LOCATION OF CONTROLS
BUTTON GROUP 15x8 (BLACK) BUTTON GROUP 15x8+D|FF (BLACK)
K2478203 K2478201
BLACK KNOB W / WHITE INDICATOR BUTI'ON GROUP 22X8+DIFF (GREY)
22485192 cod. K2478252
BUTTON GROUP 22X8+DIFF (BLACK) BUTTON GROUP 15x8+D|FF (RED)
K2478200 K2478253
POWER SWITCH KNOB N.001-BLACK
22488183
1 {-1 f-\ [-1 [=1 I
r: o o o o o o © © 0
