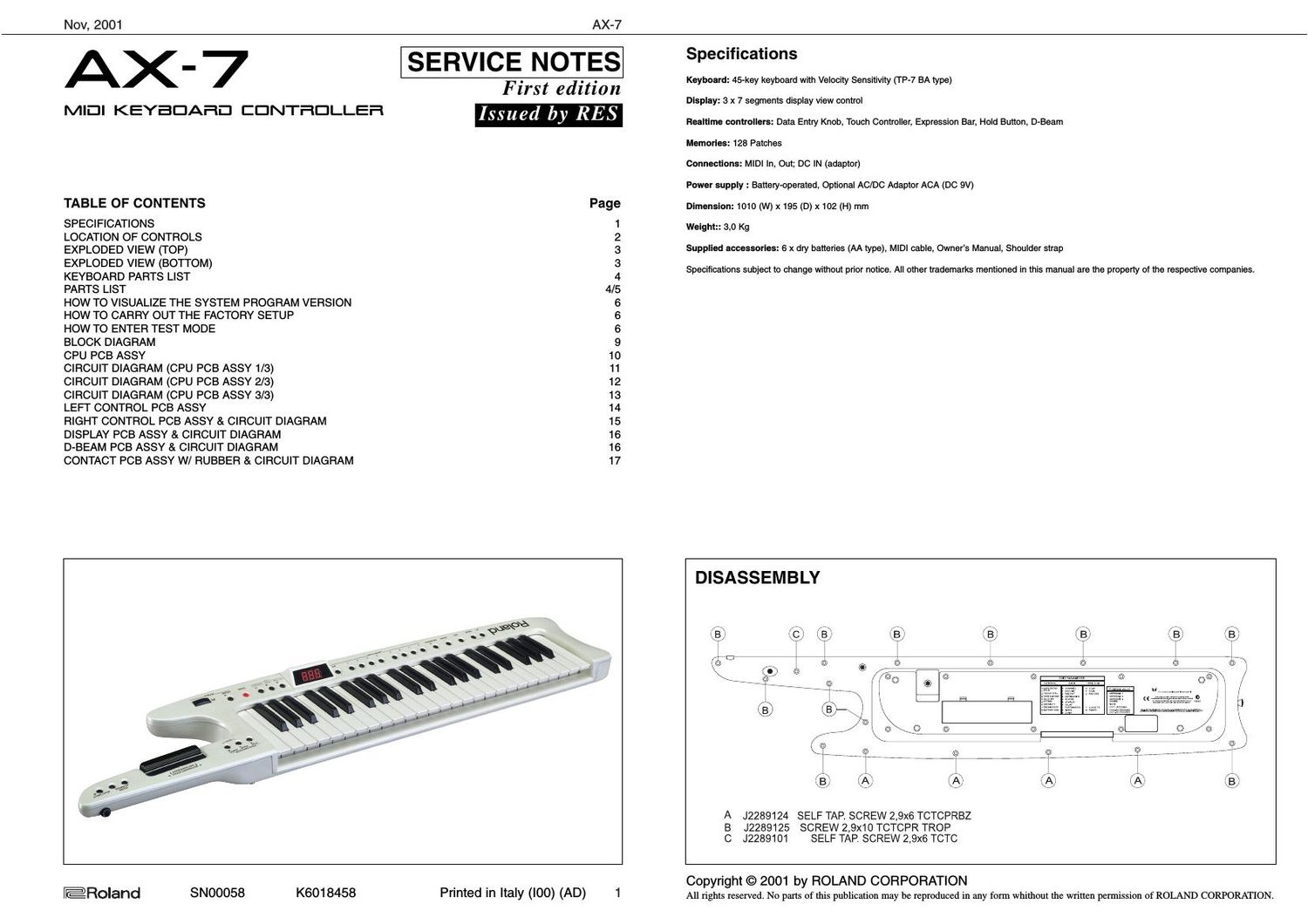

Page 1
NOV, 2001
AX-7
AX-7
MIDI KEYBOARD CDNTHDLLEFI
TABLE OF CONTENTS
SPECIFICATIONS
LOCATION OF CONTROLS
EXPLODED VIEW (TOP)
EXPLODED VIEW (BOTTOM)
KEYBOARD PARTS LIST
PARTS LIST
HOW TO VISUALIZE THE SYSTEM PROGRAM VERSION
HOW TO CARRY OUT THE FACTORY SETUP
HOW TO ENTER TEST MODE
BLOCK DIAGRAM
CPU PCB ASSY
CIRCUIT DIAGRAM (CPU PCB ASSY 1/3)
CIRCUIT DIAGRAM (CPU PCB ASSY 2/3)
CIRCUIT DIAGRAM (CPU PCB ASSY 3/3)
LEFT CONTROL PCB ASSY
RIGHT CONTROL PCB ASSY & CIRCUIT DIAGRAM
DISPLAY PCB ASSY & CIRCUIT DIAGRAM
D-BEAM PCB ASSY & CIRCUIT DIAGRAM
CONTACT PCB ASSY W/ RUBBER & CIRCUIT DIAGRAM
SERVICE NOTES
First edition
Issued by RES
'0
9)
(n
(D
J;
commmGSwwm-n
44444444.;
\IOJGUleN-KO
@Roland SN00058 K6018458
Printed in Italy (I00) (AD) 1
Specifications
Keyboard: 45-key keyboard with Velocity Sensitivity (TP-7 BA type)
Display: 3 x 7 segments display View control
Realtime controllers: Data Entry Knob, Touch Controller, Expression Bar, Hold Button, D-Beam
Memories: 128 Patches
Connections: MIDI In, Out; DC IN (adaptor)
Power supply : Battery-operated, Optional AC/DC Adaptor ACA (DC 9V)
Dimension: 1010 (W) x 195 (D) x 102 (H) mm
Weight: 3,0 Kg
Supplied accessories: 6 x dry batteries (AA type), MIDI cable, Owner's Manual, Shoulder strap
Specifications subject to change without prior notice. All other trademarks mentioned in this manual are the property of the respective companies.
DISASSEMBLY
A J2289124 SELF TAP. SCREW 2,9x6 TCTCPRBZ
B J2289125 SCREW 2,9X10 TCTCPR TROP
C J2289101 SELF TAP. SCREW 2,9X6 TCTC
Copyright © 2001 by ROLAND CORPORATION
All rights reserved. No parts of this publication may be reproduced in any form whithout the written permission of ROLAND CORPORATION.
