Roland factory reset

Page 1

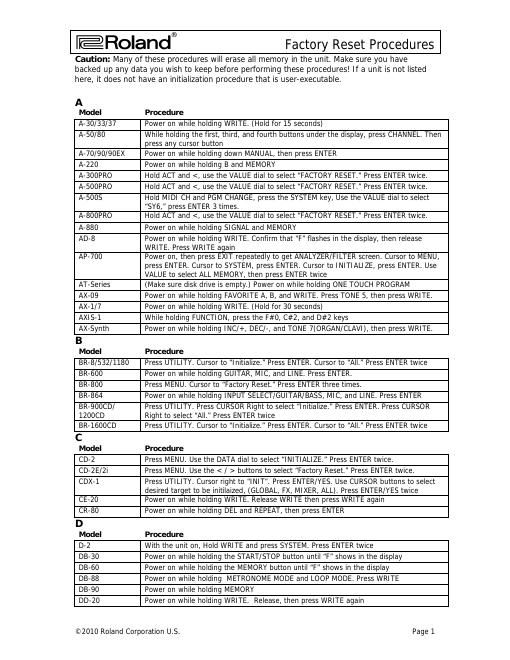

R ® Factory Reset Procedures DDR-30 Power on while holding the #1 button DEP-3/5 Power on while holding MEMORY NO UP (^) and DOWN (v) DJ-70/70MKII Power on while holding the UP ARROW bu tton to enter test mode. Press A, press C, press S1. When finished the screen will display IC21 = OK DR-3 Press EDIT. CURSOR Right to select SYS TEM. Press ENTER. CURSOR Right to select . Press ENTER twice DR-5 Power on while holding FRET LEFT (<) and RIGHT (>), then press ENTER twice DR-202 Power on while holding MUTE and ROLL. Press TAP/ENTER. Cursor to YES in the display. Press TAP/ENTER DR-550/550MKII Power on while holding -1 and +1, then press START DR-660 Press UTILITY, then use LEFT (<) and RI GHT (>) to select [8] INIT. Press ENTER twice DR-670 Power on while holding REC and STOP / CONT. Press ENTER twice DR-770 Pr ess UTILITY, then use LEFT (<) and RIGHT (>) to select [9] F. RST. Press ENTER twice DR-880 Press EDIT. Press CURSOR Right to select Factory Reset. Press ENTER twice DS-330 Power on while holding REVERB and SPLIT, then press YES E Model Procedure E-09 Press FUNCTION so it is lit. Use the FAMILY buttons to select Utility, then use the SELECT buttons to select Facto ry Reset. Press TEMPO >/YES twice E-10/20/30 Power on while holding WRITE E-35 Power on while holding REC/PUNCH IN E-36 Power on while holding RECORDER E-50/60/80 Press MENU. Press UTILITY then press FACTORY RESET. Press EXECUTE. E-56 Power on while holding WRITE E-66 Power on while holding REC in the DISK RECORDER section E-68/70/86/96 Power on while holding WRITE E-300/500 Press UTILITY. Use the buttons under the display that correspond to <> to select FACTORY PRESET. Press EXECUTE, th en press OK. When the screen displays RESET COMPLETE, turn the unit off, then on E-600 Press FUNCTION and use the PAGE (<) (>) bu ttons to select Factory Preset. Touch the Execute icon followed by the OK icon on the display screen. Power off then on EG-101 Power on while holding WRITE EM-10 Power on while holding USER PROGRAM/WRITE EM-15/25 With the unit on, press FUNCTION until RESUME shows in the display. Then press TEMPO+ EM-20/30/50/55 Power on while holding USER PROGRAM/WRITE EM-2000 Performance Sets need to be loaded from disk to restore factory default settings. Insert the factory ZIP Disk into the drive and power on. Press F5 (Disk), then F1 (Load). Press PAGE ^ / v to select PRF ME M and press UPPER 1(Execute) ep-5/7/7MKII While holding REC and PLAY, pre ss STRINGS. Power off and then back on ep-9 While holding REC and PLAY, press CHOIR. Power off and then back on ep-75/85 Power on while holding REC EQ-20 Power on holding LIGHT and SELECT. Release, then press LIGHT and SELECT again EXR-3/5 Power on while holding USER PROGRAM/WRITE EXR-40/46OR Power on while holding USER PROGRAM/WRITE F Model Procedure F-110 Hold REVERB and press TRANSPOSE, hold OTHERS and use the +/- buttons to select Fct in the display. Press the Stop/Start button twice. Fantom With the unit on, press MENU. Press the UP or DOWN cursor buttons to select FACTORY RESET. Press 8 (EXECUTE) twice Fantom-G6/7/8 Press MENU. Use the CURSOR Up and Down buttons to select Factory Reset, then press F8 [Select] followed by F7 [OK]. Press F7 [OK] when completed.

Page 2

R ® Factory Reset Procedures Fantom-S/S88 Press MENU. Use the CURSOR Up or Down buttons to select Utility, then press ENTER. Press 3 (Factory Reset) Press 8 (Execute) Fantom-Xa Press EXIT. Press MENU. Turn the VALUE di al to select Utility and then press ENTER. Press F3. Press F6 Fantom-XR Press MENU. Press CURSOR Down to se lect UTILITY. Press ENTER. Press CURSOR Down to select FACTORY RESET. Press ENTER twice Fantom-X6/7/8 Press MENU. Press the CURSOR DOWN bu tton to select Utility. Press button 3 (Factory Reset). Press Button 8 (Exec). Cycle the power FC-100MKII Power on while hold ing pedals #1, #2, and #8 FC-200 Power on while holding the # 10 pedal, then press the CTL pedal FG-10/1000 Power on while holding CLEAR and EXIT FP-2 Power on while holding REVERB until Fct shows in the display FP-4 Power on while holding FUNCTION FP-5 Power on while holding PEDAL CONTROL FP-7 Power on while holding FUNCTION FP-8 Press FUNC and release. Whil e holding PIANO, press FUNC again FR-3 Power on while holding SET and ORCHESTRA. FR-5/7 Power on while holding MENU/WRITE. Press the DATA/ENTER button G Model Procedure G-70 Press MENU. Touch UTILITY, then touch FACTORY RESET. Touch EXECUTE G-600/800 Power on while holding WRITE G-1000 Performance Sets need to be loaded from disk to restore factory default settings. Insert the factory ZIP Disk into the drive and power on. Press F5 (Disk), then F1 (Load). Press PAGE ^ / v to select PRF MEM and press UPPER 1 (Execute) GI-10 Power on while holding PARAMETER + and -, then press VALUE + GI-20 With the power off, set the GUITAR /BASS switch to match the instrument you are using. Power on while holding TUNER(STRING SEL). Press WRITE GM-70 Poly Mode: Power on while holding PLAY, GENERAL EDIT, and IND EDIT. Mono Mode: Power on while holding TUNE , CONTROL ASSIGN, and DATA TRANSFER GP-16 Power on while holding the #6, #7, and #8 buttons. Use the FUNCTION LEFT (<) and RIGHT (>) buttons to select 2.All Factor y Preset, then press WRITE three times GP-20 Power on while holding WRITE. Release WRIT E, (The MEMORY indicator will flash), then press WRITE again GP-100 Power on while pressing in th e PARAMETER knob, then press WRITE GR-09 Power on while holding Pedal #2, then press the VALUE + button. Now press EDIT/PLAY GR-1 Power on while holding WRITE/COPY, then press YES GR-20 Power on while holding WRITE, then press WRITE again GR-30 Power on while holding Pedal #2, then pr ess the PATCH+ button to select INI. Press EDIT/PLAY. Then press PATCH+ and PATCH- simultaneously GR-33 Press SYSTEM. Press PARAMETER (>) righ t to select FACTORY RESET. Use VALUE to select ALL. Press WRITE twice GS-10 Power on while holding the CHANNE L SELECT A and B buttons (within the PREAMP/SPEAKER section), then press WRITE GT-3 Power on while holding MOD and SFX. Press WRITE GT-5 Power on while holding MOD an d FEEDBACKER/SLOW GEAR. Press WRITE GT-6/8/Pro Power on while holding the PREAMP ON/OFF and (PREAMP)TYPE/VARIATION buttons. Press WRITE GT-6B Power on while holdin g COMP/LIMITER ON/OFF and TYPE VARIATION. Press WRITE GT-10/10B Press SYSTEM. CURSOR right to select FACTORY RESET then press ENTER twice. GW-7 Press FUNCTION. Press SELECT Left or Right to choose Utility. Press ENTER twice GW-8 Press MENU. Use the CURSOR Up and Down bu ttons to select Utility then press ENTER. Use the CURSOR buttons to select Factory Re set then press ENTER twice. Power off and on. GX-700 Press TUNER/UTILITY. Use PARAMETER LEFT (<) and RIGHT (>) buttons to select FACT
