Revox A 77 Schematic 2

This is the 12 pages manual for Revox A 77 Schematic 2.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 12
left right
Revox A 77 Schematic 2

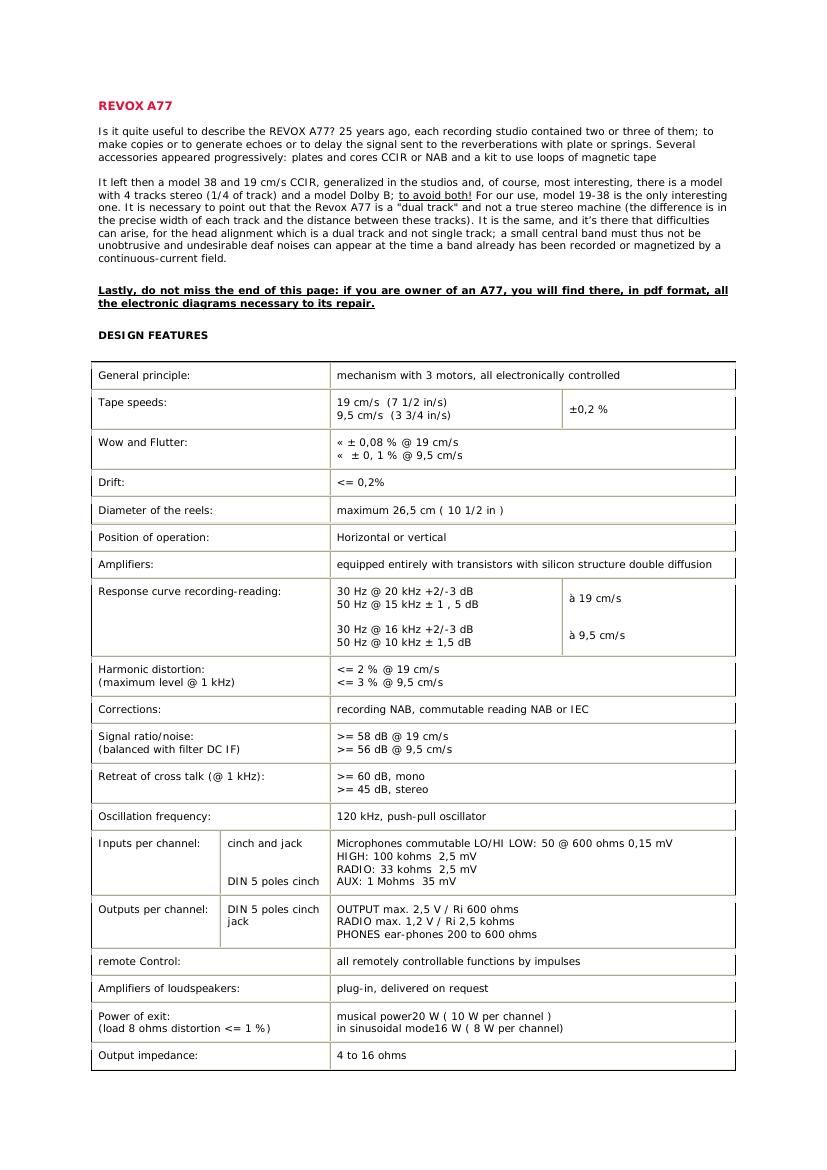

Extracted text from Revox A 77 Schematic 2 (Ocr-read)

Page 1

Built-in loudspeakers (model bag): 2 loudspeakers per channel (disconnected automatically at the time of the connection of external loudspeakers) Component: (with the amplifiers of loudspeakers) 54 transistors, 32 diodes, 4 rectifiers with silicon, 1 photo resistor, 4 relays Power supply: stabilized Tensions of the network: 110, 130, 150, 220, 240, 250 V-, 50 and 60 Hz Consumption: 70 W without the amplifiers of loudspeakers between 70 and 100 W with the amplifiers Fuses: 0,5 A for 220 to 250 V 1,O A for 110 to 150 V Weight: Approximately 15 kg
