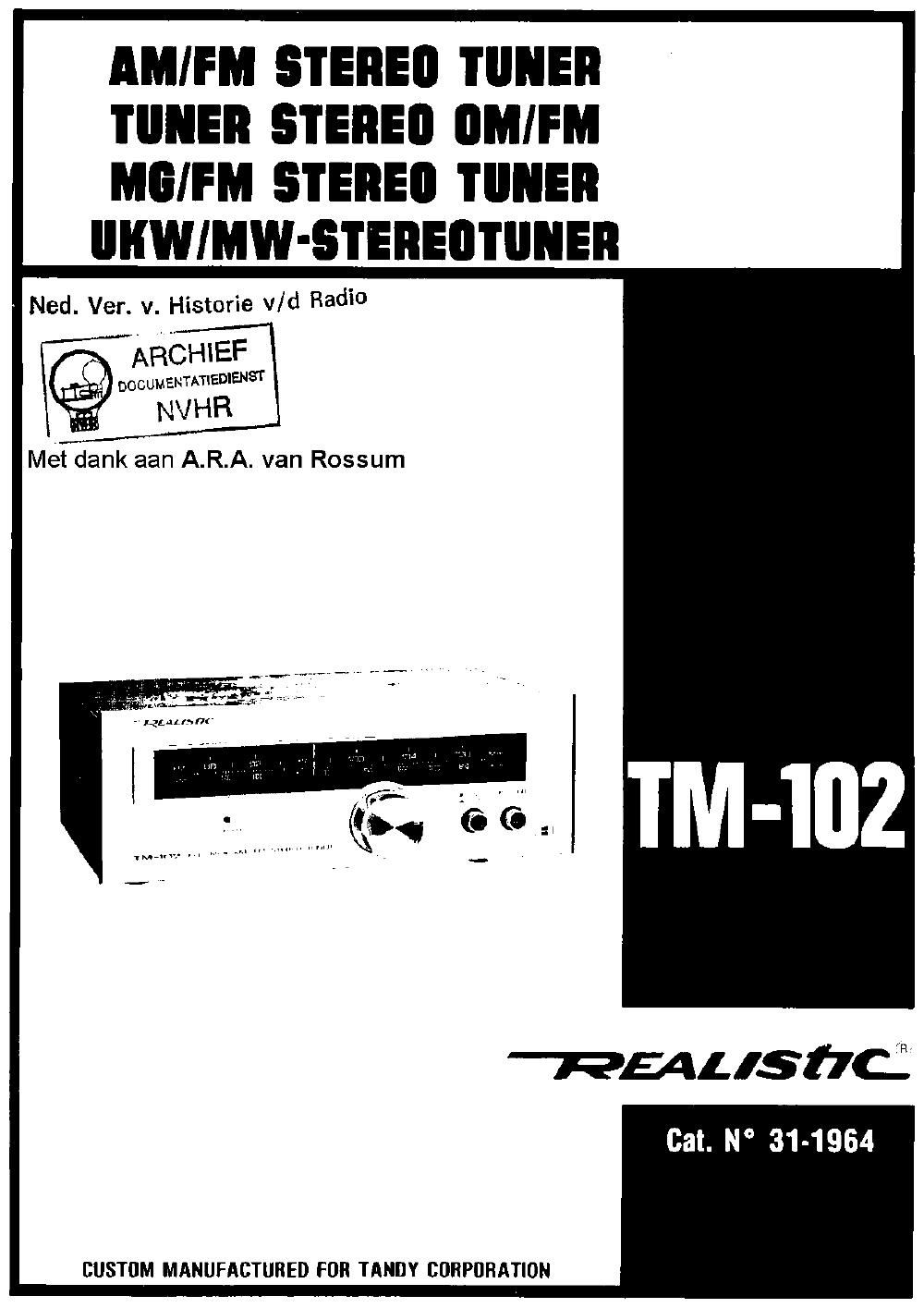

realistic tm 102 owners manual

Extracted text from realistic tm 102 owners manual (Ocr-read)


Page 2

Your Realistic nil-102

...is one of the best tuner values available. It provides true component quality
AM, FM and FM stereo reception without the "frills" of more expensive compo
nents.

0 The specifications show that this tuner concentrates on performance. It uti-
lizes a sensitive 3-ganged FM tuner and a reliable integrated circuit multi-
plex decoder.

- Built-in AM and FM antennas provide excellent reception in most areas. We
vision tor an external FM antenna assures the best possible reception even
in fringe areas.

- Rear-panel STEREOIMONO switch for use with PA or other mono amplifier.

And an inexpensive tuner can still look great. The TIM-102 has a lighted slide-
rule dial, a stereo beacon and positive. reliable push switches. The brushed
aluminium front panel and polished knobs add to the units appeal. Theres even
a beautiful walnut grained vinyl veneer cabinet and it doesn't cost you a penny
extra! Thats just one more way Tandy gives you more value for your stereo
pound.

SPECIFICATIONS
Flil
Sensitivity 5W (lHF)
Separation 35 dB
image Rejection 40 dB
Signal-to'hloise Ratio 50 dB
Output Voltage at 1 ml! FM input 1V
Mil
Sensitivity 250 prmeter for 20 dB S+NIN
SIZE 3-112 3: 9-114" x 6-778"
8.9 it 23.6 x 1?.5 cm {HWD}
POWER BEIJUIHEMENIS 2201'240 volts, 50 Hz, 5 watts

2
