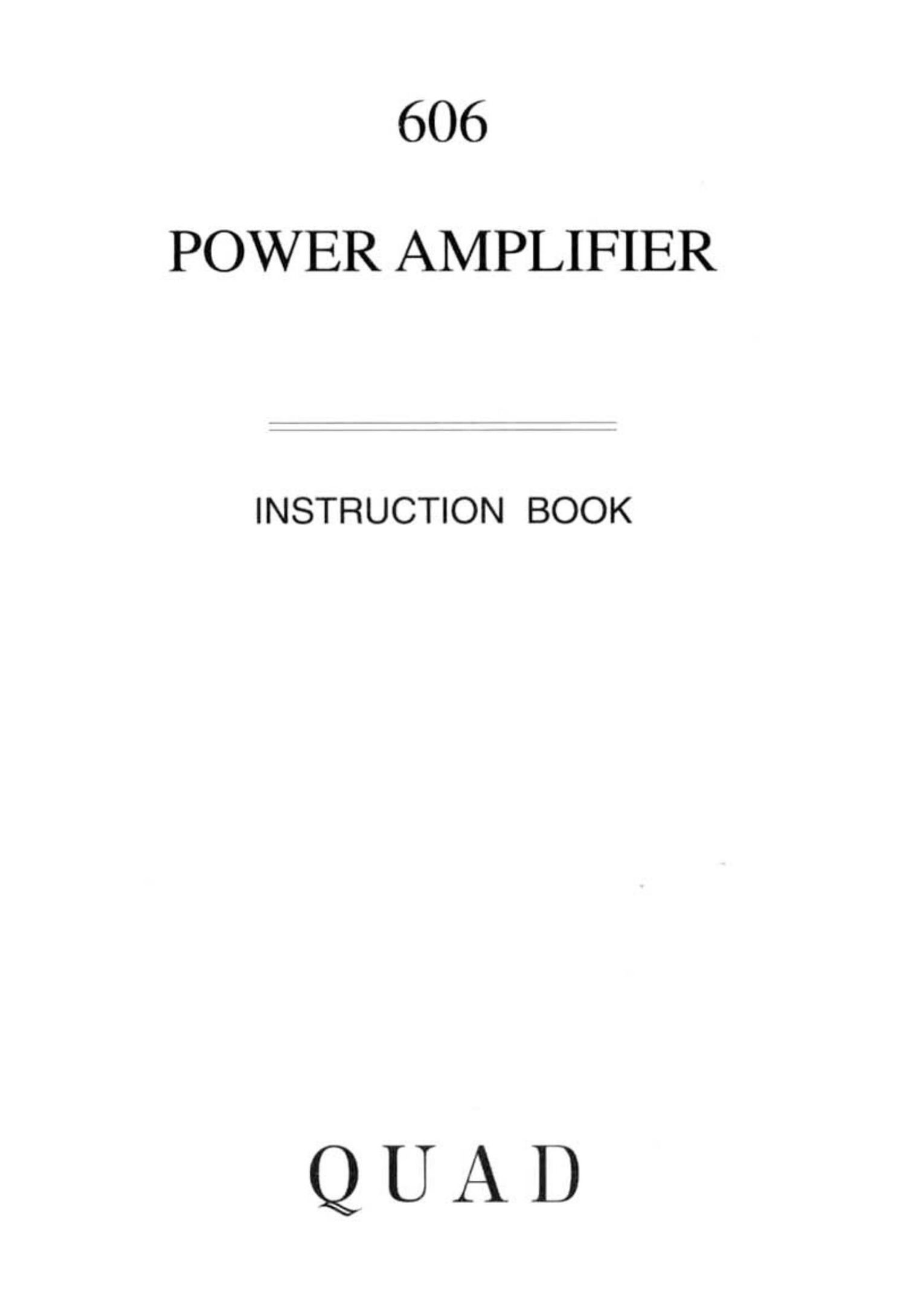

606
POWER AMPLIFIER
INSTRUCTION BOOK
QUAD
CONTENTS
we ma)
page
INTRODUCTION ..................................... 2
GUARANTEE ....................................... 2
SERVICE .......................................... 2
ACCESSORIES SUPPLIED ............................ 3
INSTALLATION ..................................... 3
Checking the AC Power Supply ................... 3
Connecting to the AC Power Supply ............... 4
AC Power Out .................................. 4
Positioning the Amplitler ......................... 4
Connection to the Control Unit .................... 4
Loudspeaker Connection ........................ 5
SWITCHING ON AND OFF ............................. 6
AMPLIFIER PROTECTION ............................. 6
LOUDSPEAKER PROTECTION ......................... 6
QUAD ELECTROSTATIC LOUDSPEAKERS ............... 6
LOUDSPEAKER PHASING ............................ 6
HEADPHONES ...................................... 6
MAINTENANCE ..................................... 6
FRONT AND REAR VIEW ............................. 7
Connecting Sockets ............................. 7
SPECIFICATION ..................................... 8
Power Output Graph ................... inside back cover
ACCESSORIES ............................ inside back cover
Quad high fidelity equipment is designed to reproduce music at
realistic levels. but there is a world 0! difference between the sound
pressure levels produced by a string quartet and a heavy metal group.
Please be aware that very high sound pressure levels can cause
permanent hearing damage. but such levels will also cause
severe annoyance to neighbours.
one
