QSC DCM 1 Schematics

This is the 21 pages manual for QSC DCM 1 Schematics.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 21
left right
QSC DCM 1 Schematics

Extracted text from QSC DCM 1 Schematics (Ocr-read)

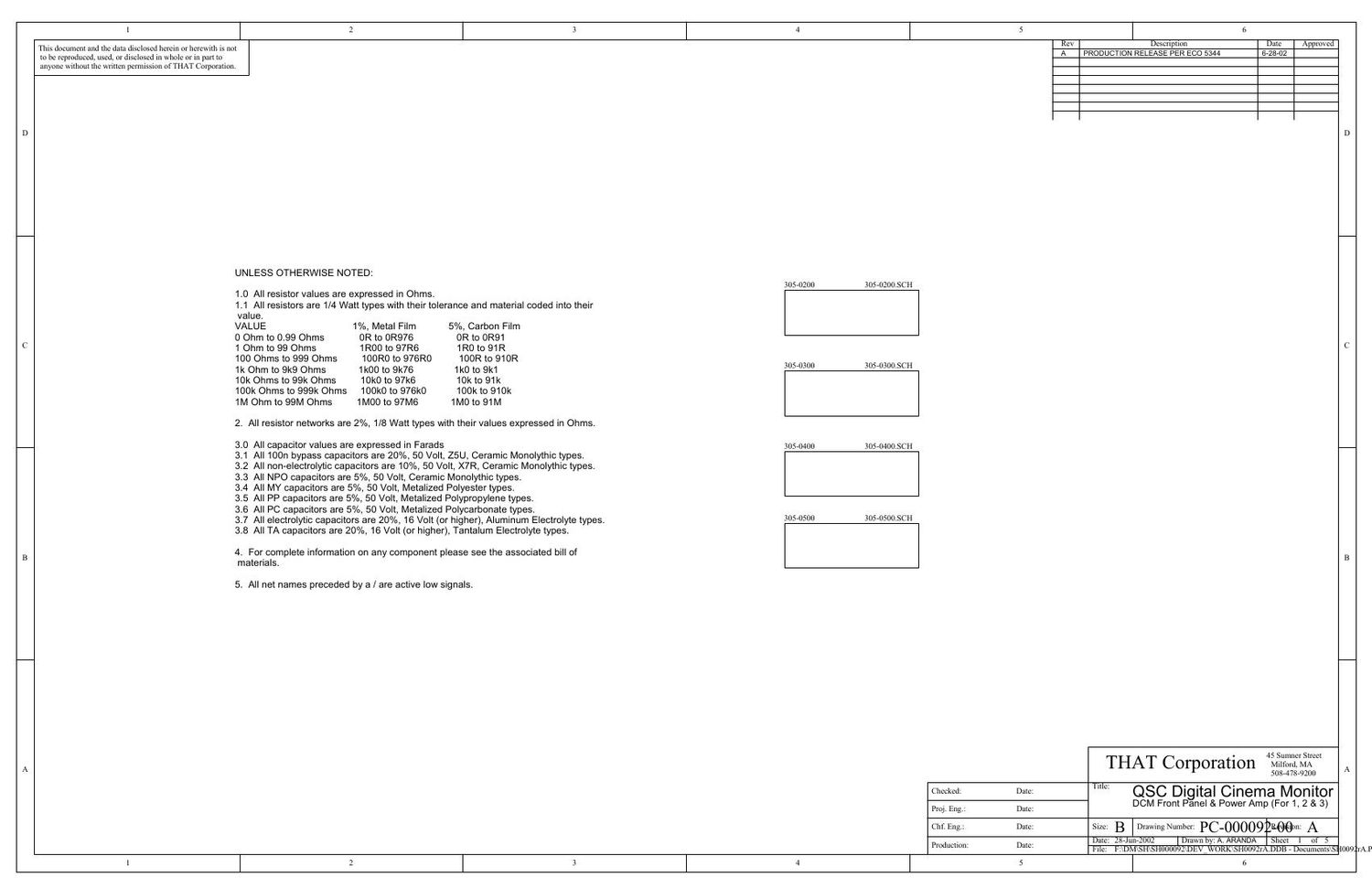

Page 1

l 2 3

This document and the data disclosed herein or herewith is not
to be reproduced. used, or disclosed in whole or in part to
anyone Without the written permission of THAT Corporation

UNLESS OTHERWISE NOTED:

1.0 All resistor values are expressed in Ohms.

1.1 All resistors are 1/4 Watt types with theirtolerance and material coded into their
value.

VALUE 1%, Metal Film 5%, Carbon Film
0 Ohm to 0.99 Ohms OR to 0R976 OR to 0R91

1 Ohm to 99 Ohms 1R00 to 97R6 1R0 to 91R
100 Ohms to 999 Ohms 100R0 to 976R0 100R to 910R
1k Ohm to 9k9 Ohms 1k00 to 9k76 1k0 to 9k1

10k Ohms to 99k Ohms 10k0 to 97k6 10k to 91k
100k Ohms to 999k Ohms 100k0 to 976k0 100k to 910k
1M Ohm to 99M Ohms 1M00 to 97MB 1M0 to 91M

2. All resistor networks are 2%, 1/8 Watt types with their values expressed in Ohms.

3.0 All capacitor values are expressed in Farads

3.1 All 100n bypass capacitors are 20%, 50 Volt, ZSU, Ceramic Monolythic types.
3.2 All non-electrolytic capacitors are 10%, 50 Volt, X7R, Ceramic Monolythic types.
3.3 All NPO capacitors are 5%, 50 Volt, Ceramic Monolythic types.

3.4 All MY capacitors are 5%, 50 Volt, Metalized Polyester types.

3.5 All PP capacitors are 5%, 50 Volt, Metalized Polypropylene types.

3.6 All PC capacitors are 5%, 50 Volt, Metalized Polycarbonate types.

3.7 All electrolytic capacitors are 20%, 16 Volt (or higher), Aluminum Electrolyte types.

3.8 All TA capacitors are 20%, 16 Volt (or higher), Tantalum Electrolyte types.

4. For complete information on any component please see the associated bill of
materials.

5. All net names preceded by a / are active low signals.

30570200

30570200.SCH

30570300

30570300.SCH

30570400

30570400.SCH

30570500

30570500.SCH

RCV

Description

Date Approved

PRODUCTlON RELEASE PER ECO 5344

648702

THAT Corporation

45 Sumner Street
Milford, MA
508747879200

Checked:

Date:

Title:

Proj, Eng;

Date:

QSC Digital Cinema Monitor

DCM Front Panel & Power Amp (For 1, 2 & 3)

Chf. Eng;

Date:

Size:

B lollwingN..mbm pc-00009,zem)m A

Production:

Date:

Date:

Z8eJiinele02 l Drawn by: A. ARANDA

Sheet 1 of S

Filc:

F: DM\SH\SHOU0092\DEV7W0RK\SH

{009
